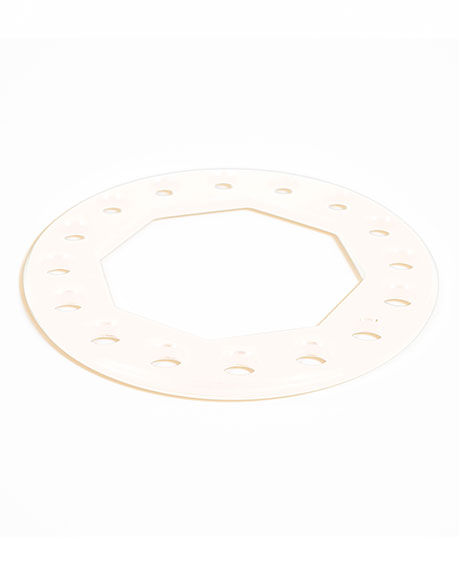

Sixteen-place tube carrier
Replacement carrier for sixteen microvials in the 16 ULTRA.
Parallel-sample bead mill
Mini-BeadBeater-16 ULTRA
A compact 16-position bead mill for microbial cells and plant or animal tissue, with digital timing and a quiet ULTRA enclosure.
PRODUCT OVERVIEW
Designed around
the biological sample.
- Suitable for wet homogenization and compatible dry or cryogenic grinding
- Clear polycarbonate door with safety interlock
- Red, blue and black finishes
TECHNICAL DETAILS
Specifications
- Vial positions
- Up to 16 × 2 mL screw-cap microvials
- Speed
- 3,450 rpm
- Runtime
- 1 second to 5 minutes
- Stroke
- 22.2 mm
- Sound level
- 68 dB
- Power options
- 115 V, 7.4 A or 230 V, 3.7 A; 50/60 Hz
- Dimensions (L × W × H)
- 59 × 28 × 33 cm
- Weight
- 24 kg
PARTS & ACCESSORIES
Available components

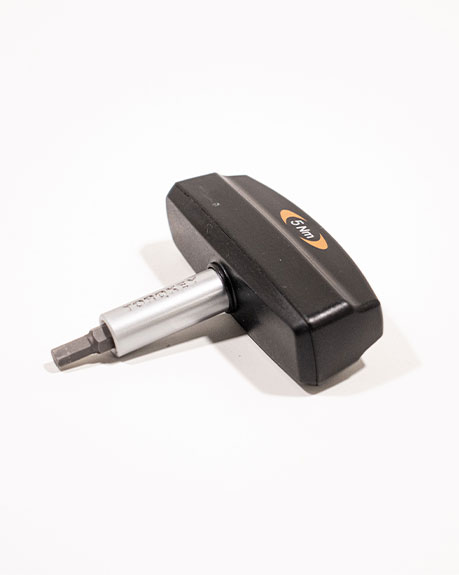

Torque key
Torque key with bit for the ULTRA retaining cap.

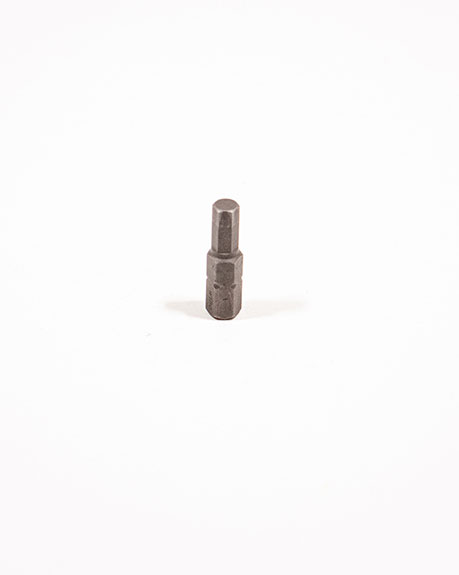

Replacement key bit
Replacement bit for the ULTRA torque key.

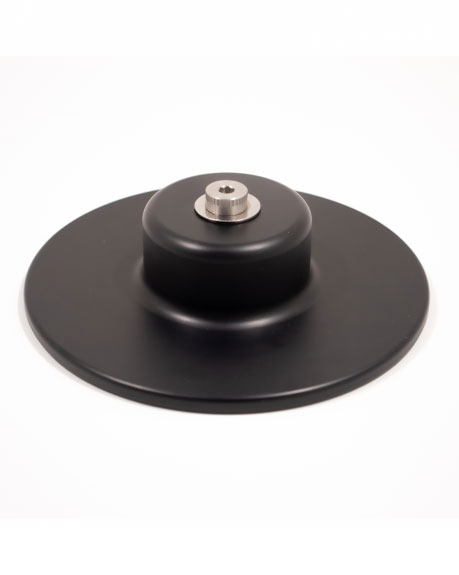

Retaining cap
Replacement retaining cap for the ULTRA vial carrier.

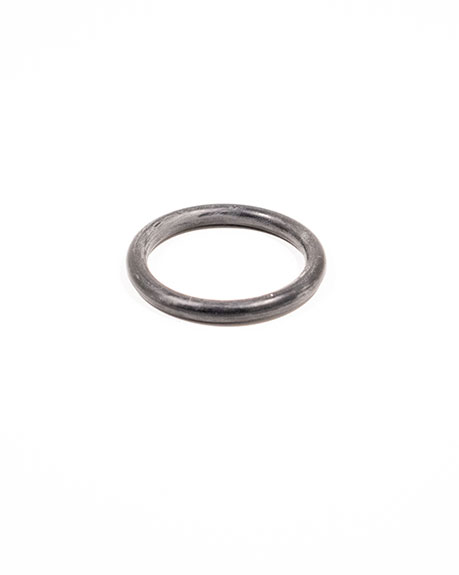

Replacement O-ring
Replacement O-ring for Mini-BeadBeater-16 and -24 ULTRA systems.

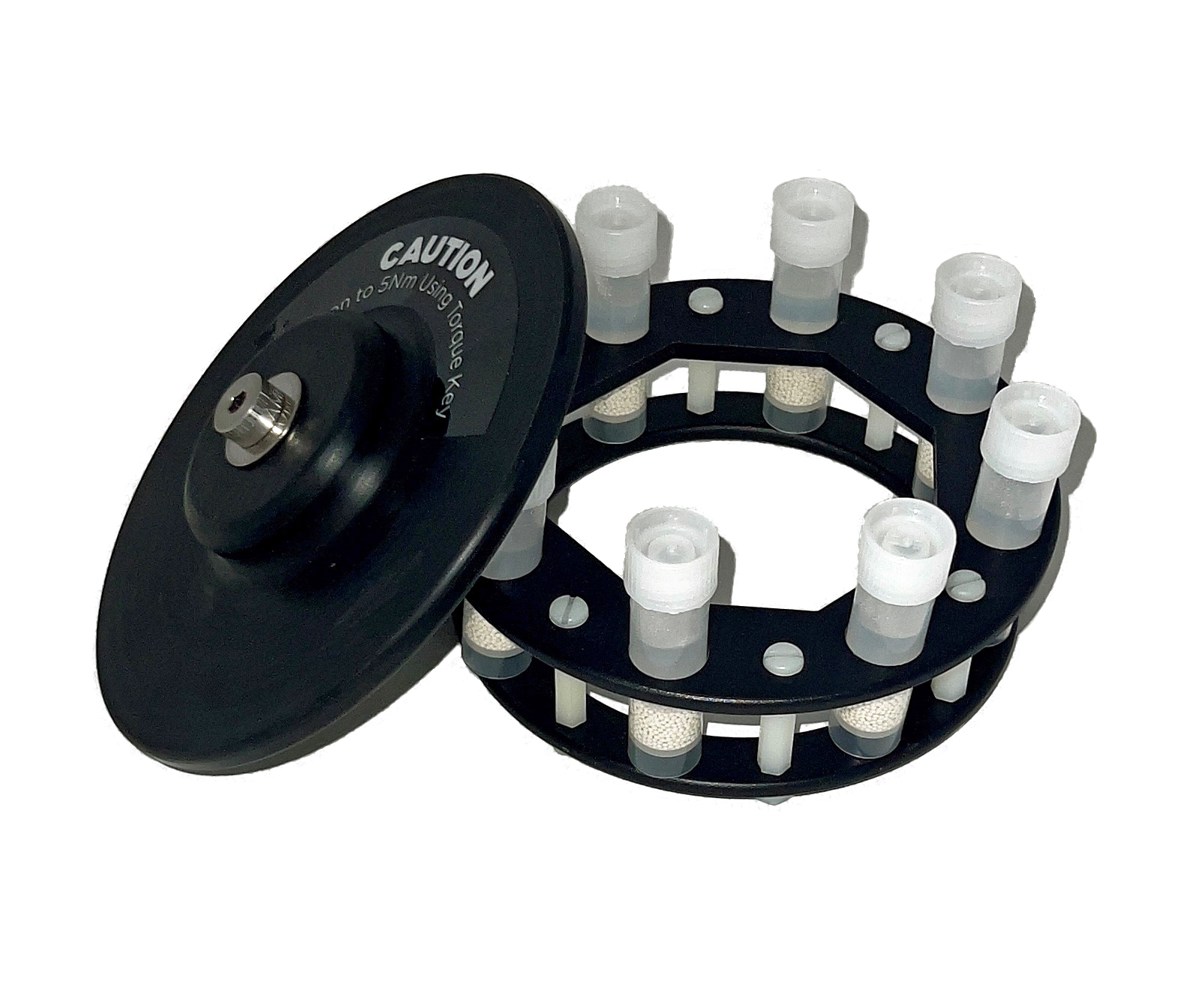

Eight-place 7 mL tube carrier
Accessory carrier for eight 7 mL tubes, compatible with both ULTRA models.
