PROGRAMMABLE · 3 L

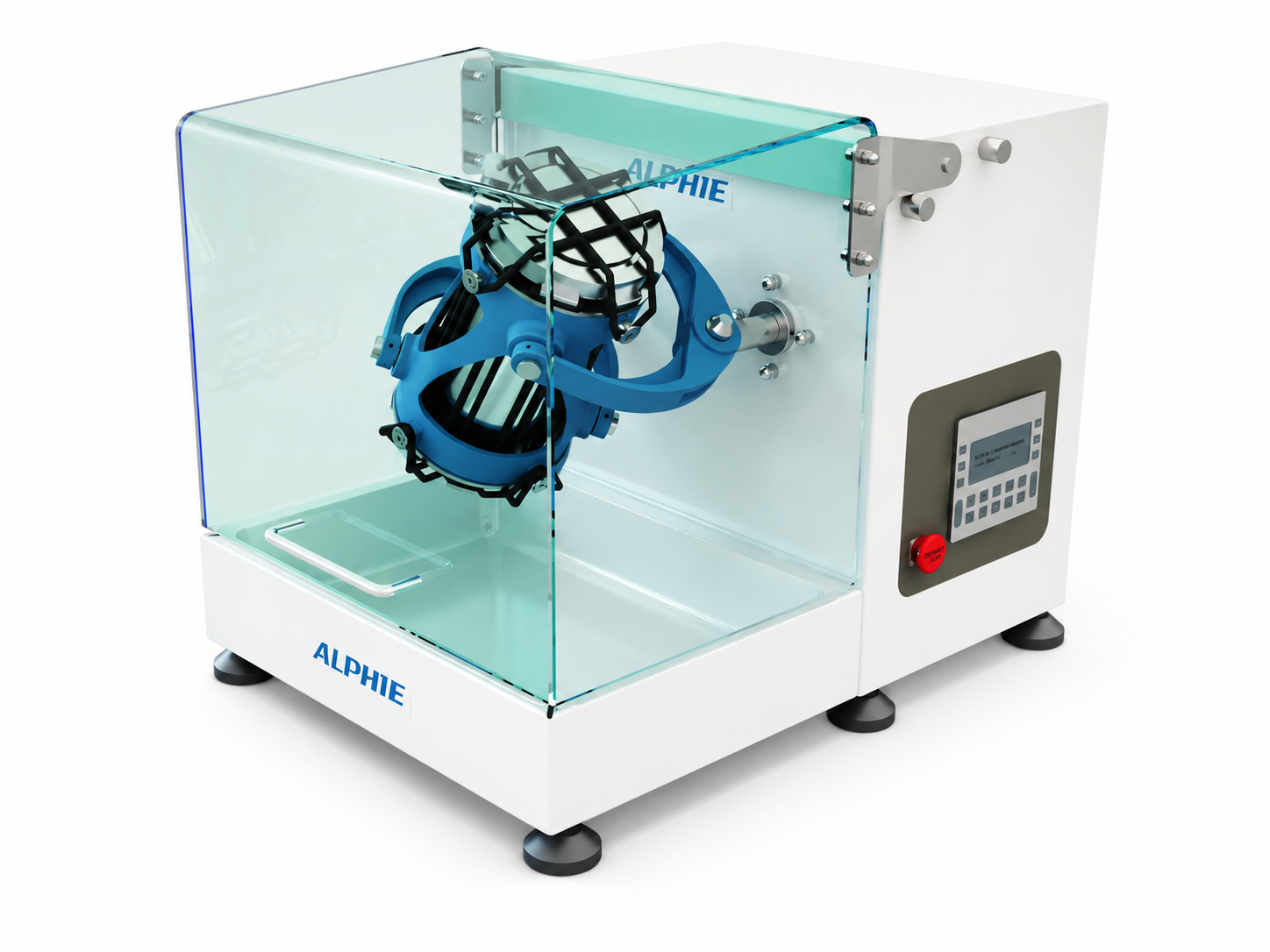

Alphie 3.
Powder blending, controlled.

Move from formulation to a controlled blending cycle. A compact 3D inversion blender with programmable speed, time and direction for laboratory development.

Request a quote Technical specifications

CAPACITY3 L

MAX. MIXING MASS5 kg

MOTION10–80 rpm

THE MIXING PRINCIPLE

Movement with a purpose.

A controlled mixing cycle

HMI / PLC controls let you set speed, cycle time and direction to develop a repeatable process.

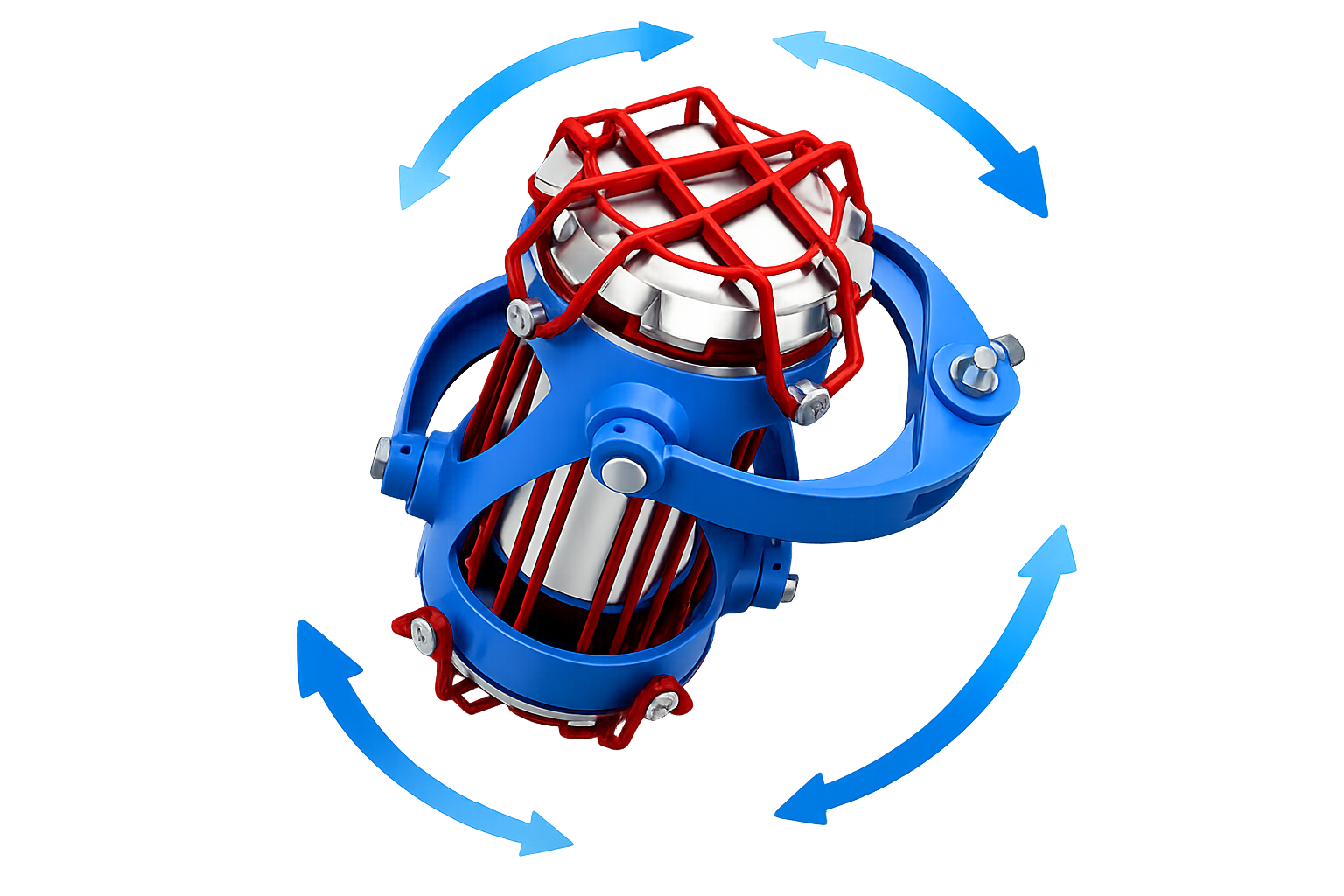

Low-shear 3D inversion

The removable container moves through three dimensions without internal blades. Evaluate blends with different particle sizes, shapes, densities and proportions.

Flexible batch development

Use dedicated removable vessels to simplify cleaning and changeover. Container compatibility and working fill depend on your material.

SEE THE MOTION

Alphie 3 in action.

Watch three-dimensional inversion mixing on the original product video.

Watch product video

MODEL DETAILS

The technical
picture.

A 3 L nominal container capacity with 2.4 l at 80% fill. Actual working fill and load depend on the material.

Confirm final configuration, container compatibility and electrical requirements before ordering.

Discuss this model

Nominal capacity: 3 L
Effective capacity at 80% fill: 2.4 L
Maximum mixing mass: 5 kg
Motor power: 0.3 hp
Electrical supply: 120 V
Container revolution: 10–80 rpm
Maximum container size: Ø115 × 275 mm long
Machine weight: 70 kg

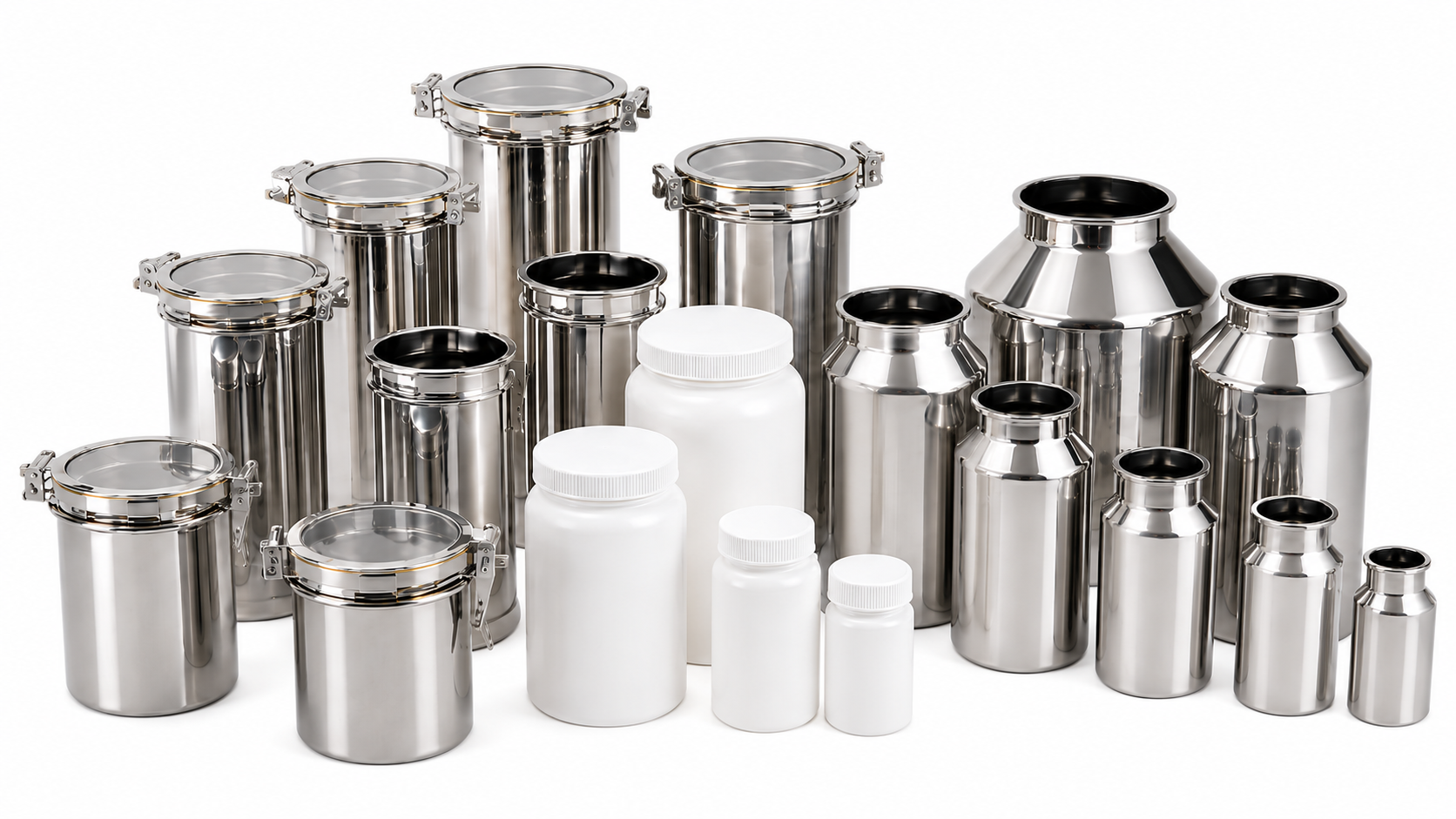

Alphie removable stainless steel mixing containers

CONTAIN THE BLEND

Small vessels.
More flexibility.

Explore compatible vials, sample bottles and removable containers. Plastic, glass and stainless steel options, vessel finishes and adapters can be discussed around your material and cleaning requirements.

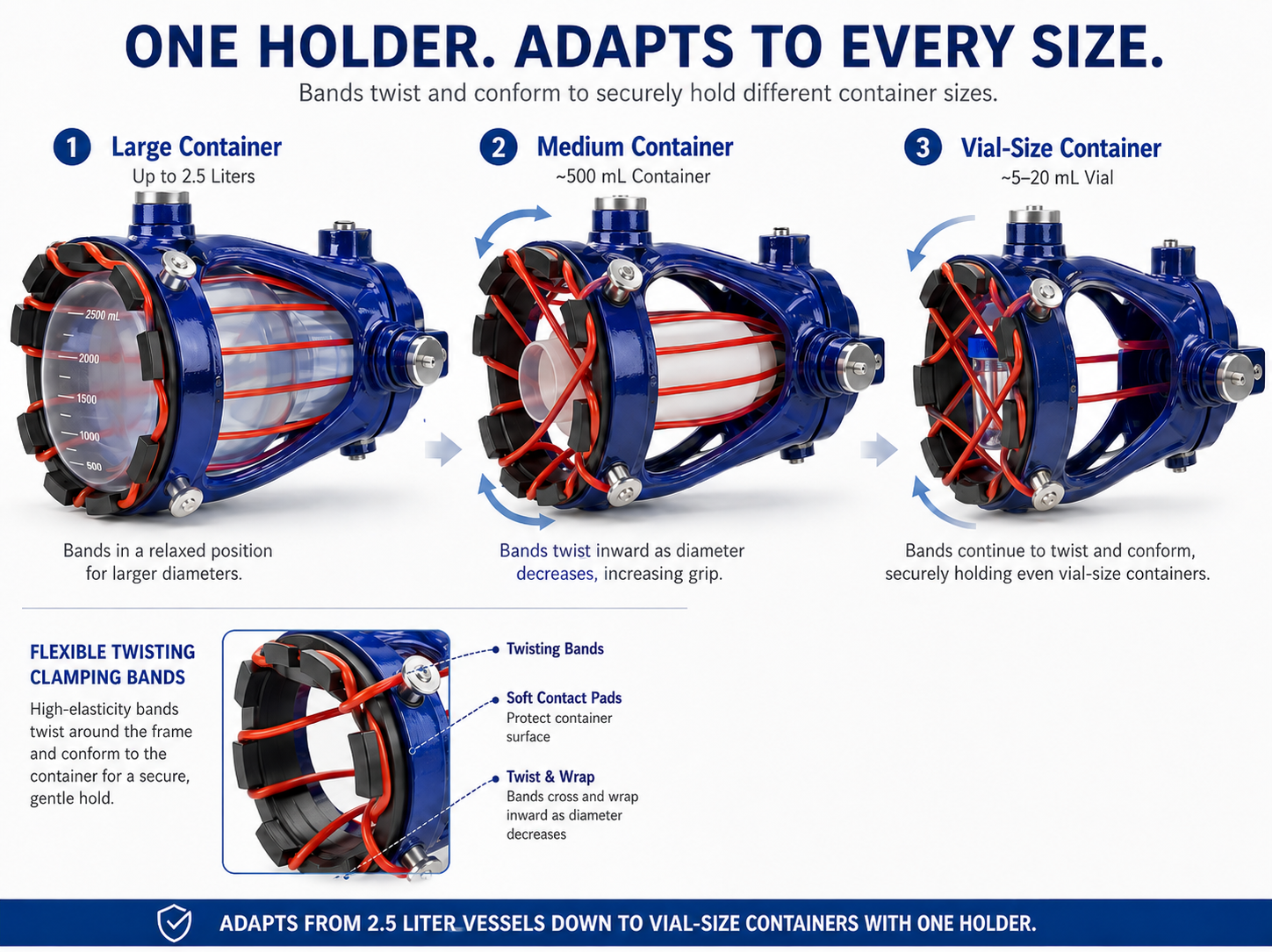

Dedicated containers help reduce cross-contamination and simplify product changeovers. Confirm the holder, maximum dimensions and working fill for this model.

Find the right container

CONFIGURE FOR THE APPLICATION

The details matter.

Stainless steel & sanitary configurations

Discuss stainless steel GMP-oriented construction, polished or electropolished containers and a removable tray below the drum. Front guarding and an interlock stop the machine when the guard opens. Confirm the exact features of your quoted configuration.

Controls & documentation requirements

Discuss HMI / PLC control options and any 21 CFR Part 11 requirements with the team. Configuration and documentation must be assessed for your process.

Glovebox integration

Custom arrangements can place the mixing arms, holder and sealed container inside a glovebox for controlled-atmosphere work. Discuss oxygen, moisture, containment and material-handling requirements.

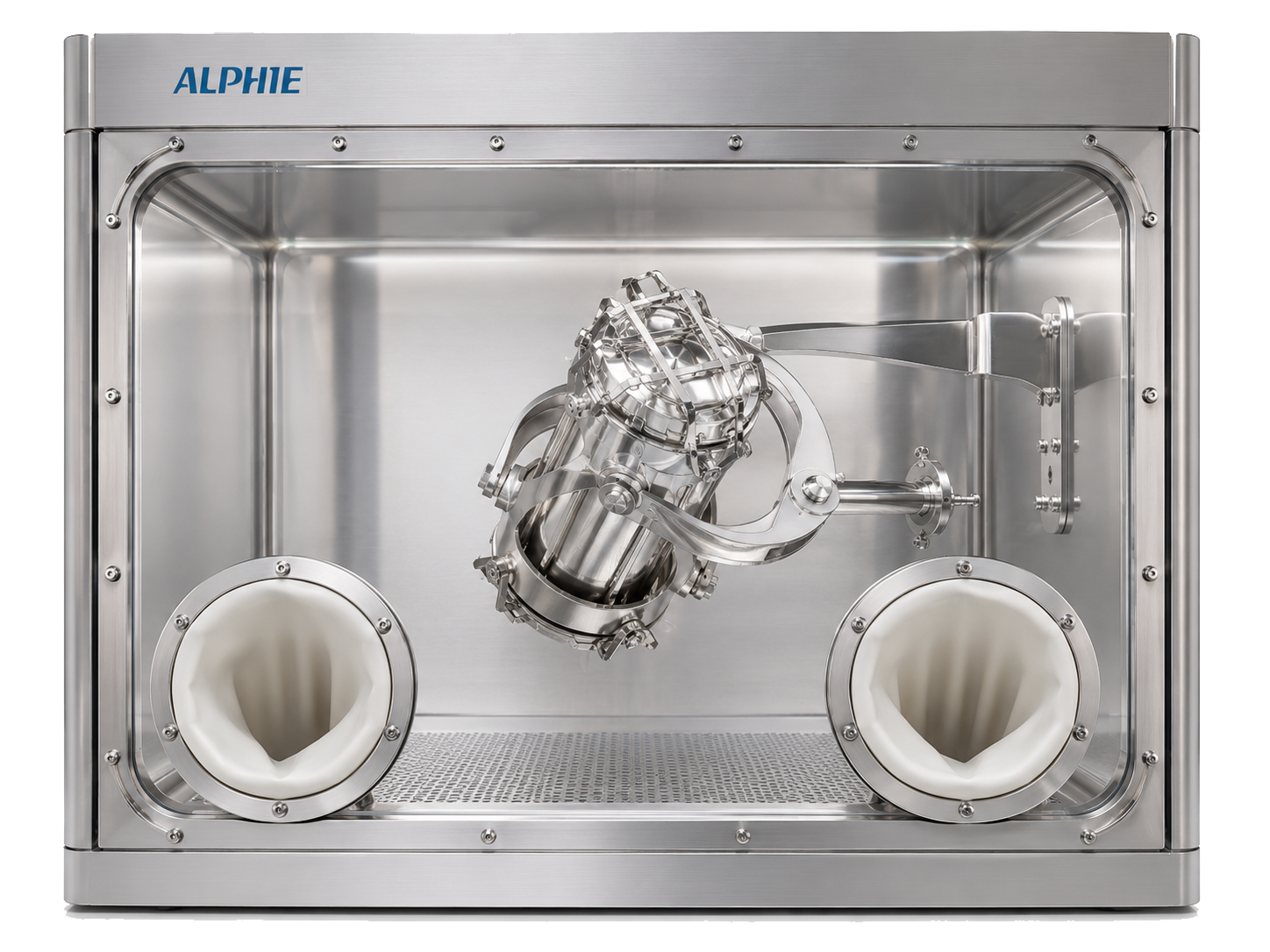

Example of an Alphie blender integrated into a glovebox enclosure — Example of a custom Alphie glovebox installation. Configuration varies by application.

MATERIALS & APPLICATIONS

Start with what you want to blend.

Discuss the particle properties, proportions, target uniformity and constraints that guide your trial.

Pharmaceuticals

Formulations, excipients and low-concentration ingredients.

Metal powders

Development blends with varying particle sizes and densities.

Ceramics

Ceramic powder formulations and development batches.

Battery materials

Sensitive materials and controlled-atmosphere requirements.

Food & nutrition

Spices, nutritional powders, flavors and concentrates.

YOUR NEXT STEP

Make Alphie 3
work for your material.

Share your batch size, powder properties and target result. We’ll help review the container, configuration and opportunities for material testing or rental trials.

973 777 0777 ↗

Need a different size or configuration? If we don’t have it, we can help source it.
