SIEVE SHAKERS

AS 200.
Air Jet Sieve Machine.

The Air Jet Sieving Machine AS 200 jet is particularly suitable for low density and low particle size materials which tend to agglomerate. It is used with sieves of 10 microns mesh size and up. The procedure is very gentle on the material as no mechanical sieving aids are required. The average sieving time is only 2-3 minutes.

Discuss this product Technical information

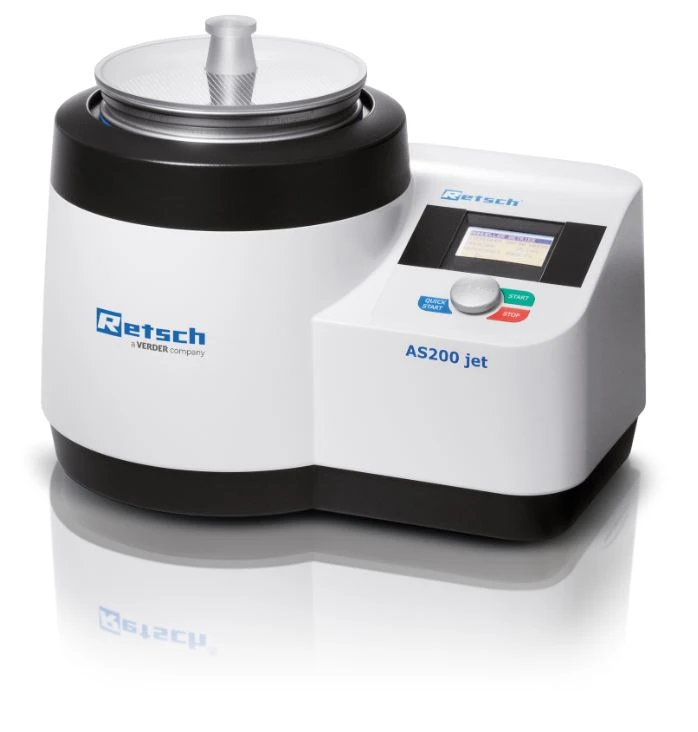

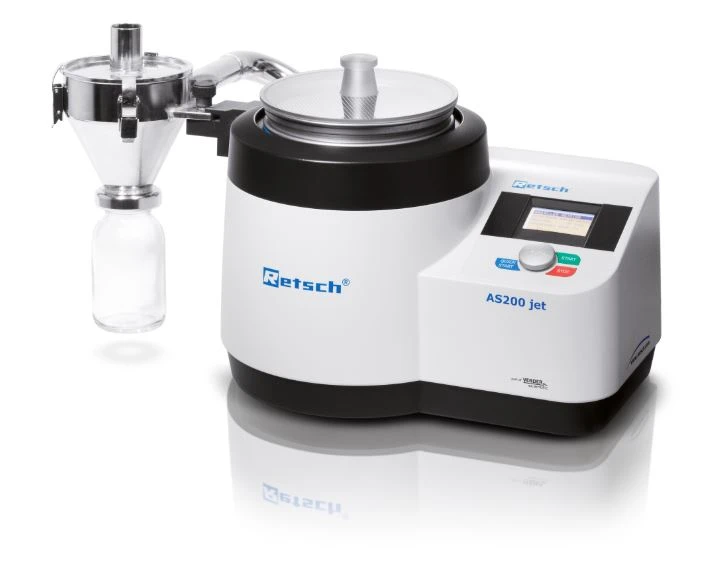

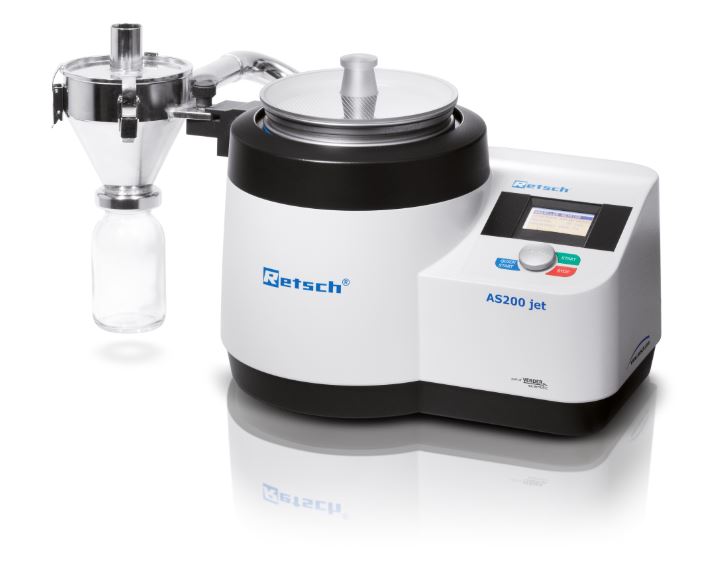

AS 200 Jet air jet sieving machine with cyclone attached

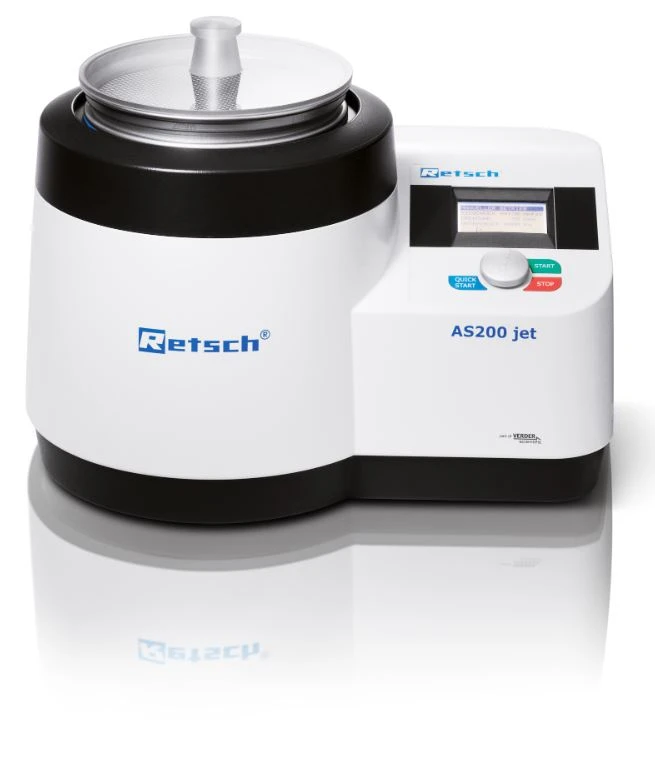

AS 200 Jet air jet sieving machine, angled view

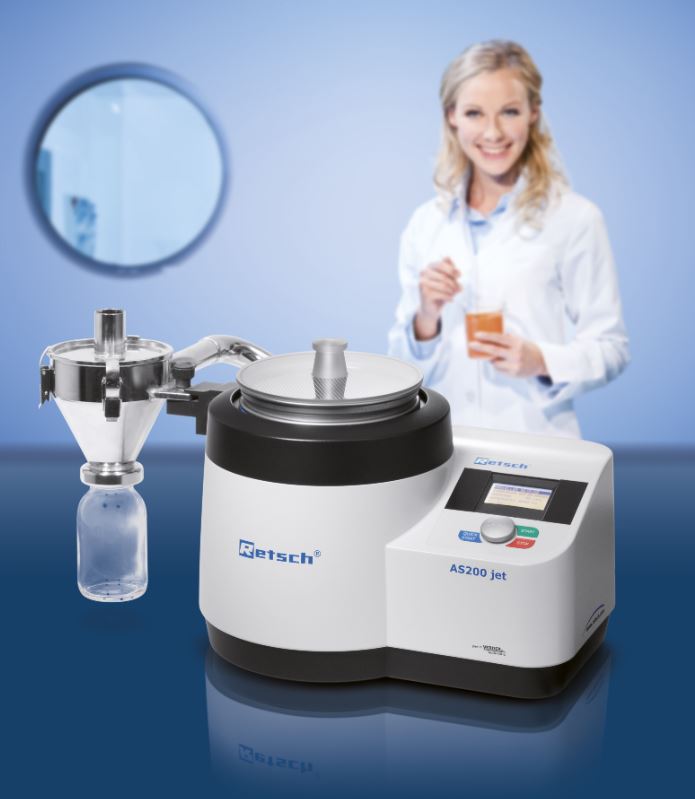

Lab technician holding a powder sample next to the AS 200 Jet air jet sieving machine with cyclone

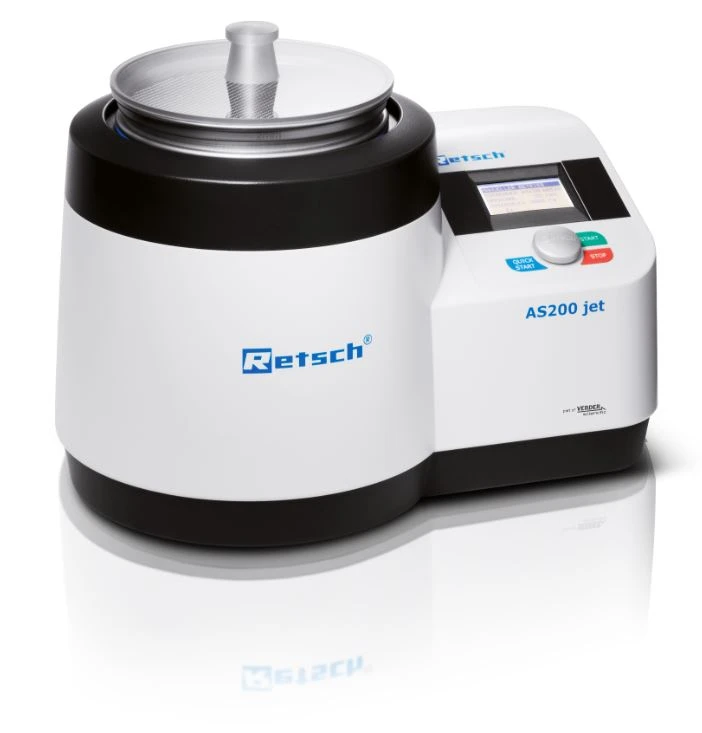

AS 200 Jet air jet sieving machine, front view

Product and configuration photographs. Select an image to enlarge.

Measuring range10 µm – ~ 4 mm

Sieving motiondispersion by air jet

Max. batch / feed capacity0.3 – 100 g

Speeddigital, 5 – 55 min-1 (nozzle)

THE PRODUCT IN FOCUS

Model overview

The AS 200 jet is specifically designed for test sieves with a diameter of 203 mm/8“ (or 200 mm with adapter). The air jet generated by an industrial vacuum cleaner can be adjusted by using the manual vacuum regulation. Optionally, an automatic vacuum regulation is available. The Open Mesh Function, a procedure which greatly reduces the number of near-mesh particles, provides optimum separation efficiency, excellent reproducibility and a longer service life of the sieves. Sieving time and nozzle speed are conveniently selected with a single button; the settings are shown in the graphic display. The Quick Start Mode is used to start the sieving process under standard conditions without entering parameters.

PERFORMANCE & OPERATION

Features. Operation. Handling.

AS 200 JET SIEVE MACHINE INTRODUCTION

Accuracy & Efficiency

Air jet technology for dispersion and deagglomeration
Measuring range 10 μm to 4 mm
Quick, efficient procedure
Open Mesh Function reduces near-mesh particles
Digital parameter setting (time, vacuum, speed)
Quick Start option
Variable nozzle speed
Automatic vacuum regulation and cyclone (options)
Memory for 9 Standard Operating Procedures (SOPs)
Suitable for standard sieves

FUNCTIONAL PRINCIPLE

The AS 200 jet is equipped with a rotating slotted nozzle. The sieve and lid are placed above the nozzle. A vacuum generates a strong jet of air which disperses the particles on the sieve through the slotted nozzle. The material which is smaller than the mesh size of the sieve is transported by the back flow of the air to the cyclone or to the vacuum cleaner. The air jet helps to deagglomerate the particles and constantly purges the sieve mesh.

APPLICATIONS & METHODS

Build the process around the sample.

TYPICAL SAMPLE MATERIALS

Vibratory sieve shakers are frequently used for grain size analysis of cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils, washing powder, etc.

Coffee

Soil

Cereals

Construction Materials

AS 200 Air Jet Sieve Machine illustration 1

AS 200 Air Jet Sieve Machine illustration 2

AS 200 Air Jet Sieve Machine illustration 3

AS 200 Air Jet Sieve Machine illustration 4

TOOLS & CONFIGURATION

The right tools for the task.

ACCESSORIES

sieve shakers can be equipped with a variety of accessories to meet a wide range of application requirements.

Cyclone with holder and collecting receptable

To extend the service life of the filters in the vacuum cleaner and for recovery of the sample fraction passing the sieve, we recommend the use of the optional cyclone. The separation degree and limiting particle size respectively depend on the sample characteristics.

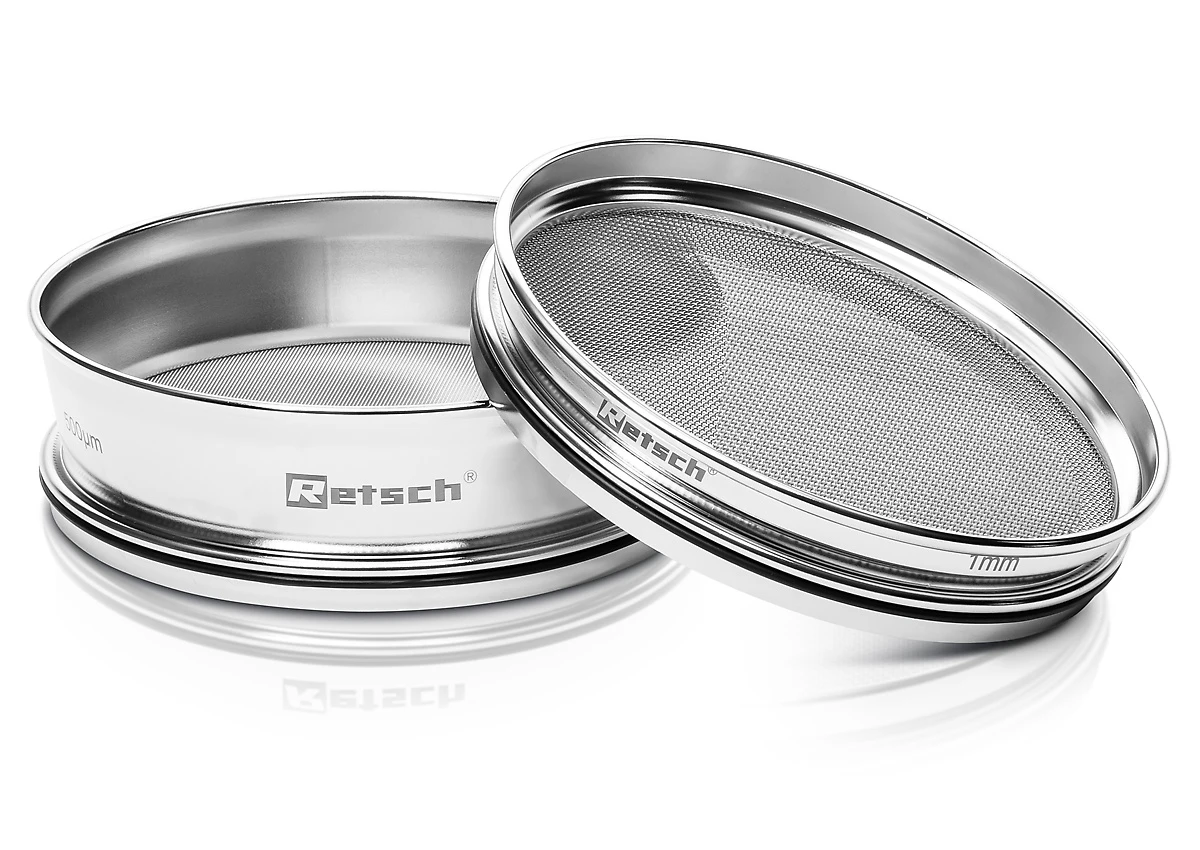

Test sieves 10 μm and up

test sieves consist of a solid stainless steel sieve frame of high stability for reliable sieving results. Paying close attention to mesh-specific requirements, the fabric of each test sieve is precisely joined into the frame and tautened.

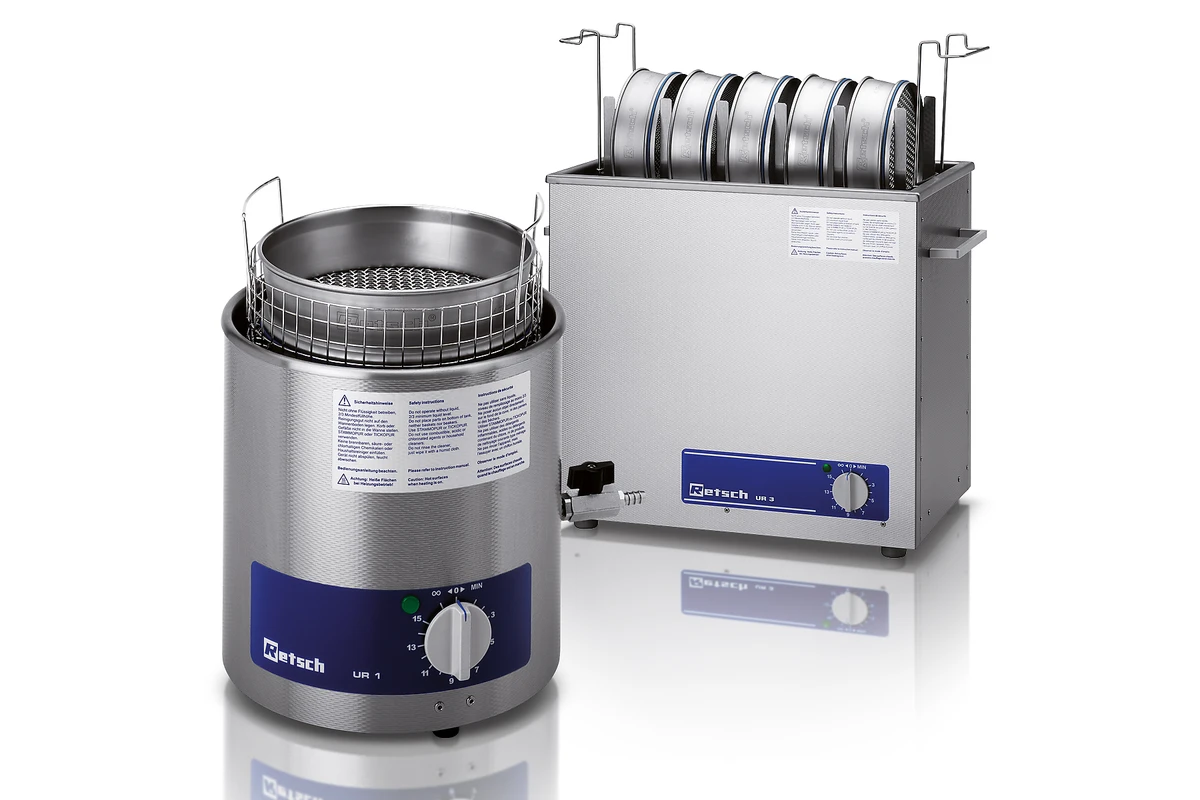

Ultrasonic baths and dryers

Suitable for thorough cleaning of test sieves and for quick, gentle drying of samples and sieves.

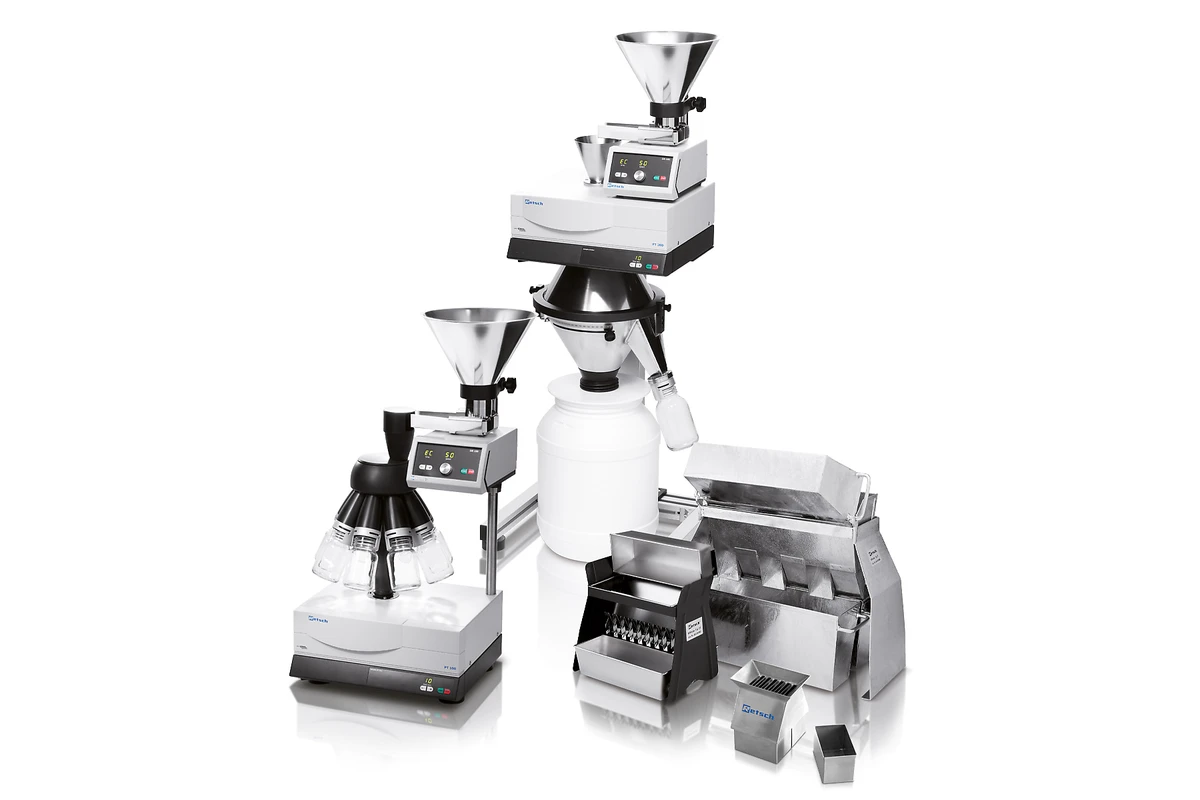

Sample Dividers

Meaningful results can only be obtained if the sample represents the original material. Sample dividers produce representative part samples, thus ensuring reproducibility of the analysis.

Two stainless steel analytical test sieves

ultrasonic bath for cleaning test sieves

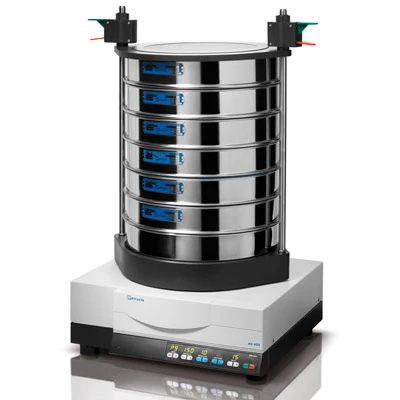

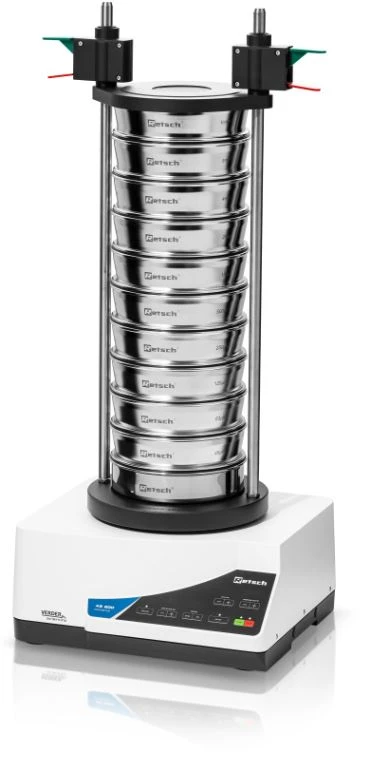

Sieve stack accessories for vibratory sieve shakers

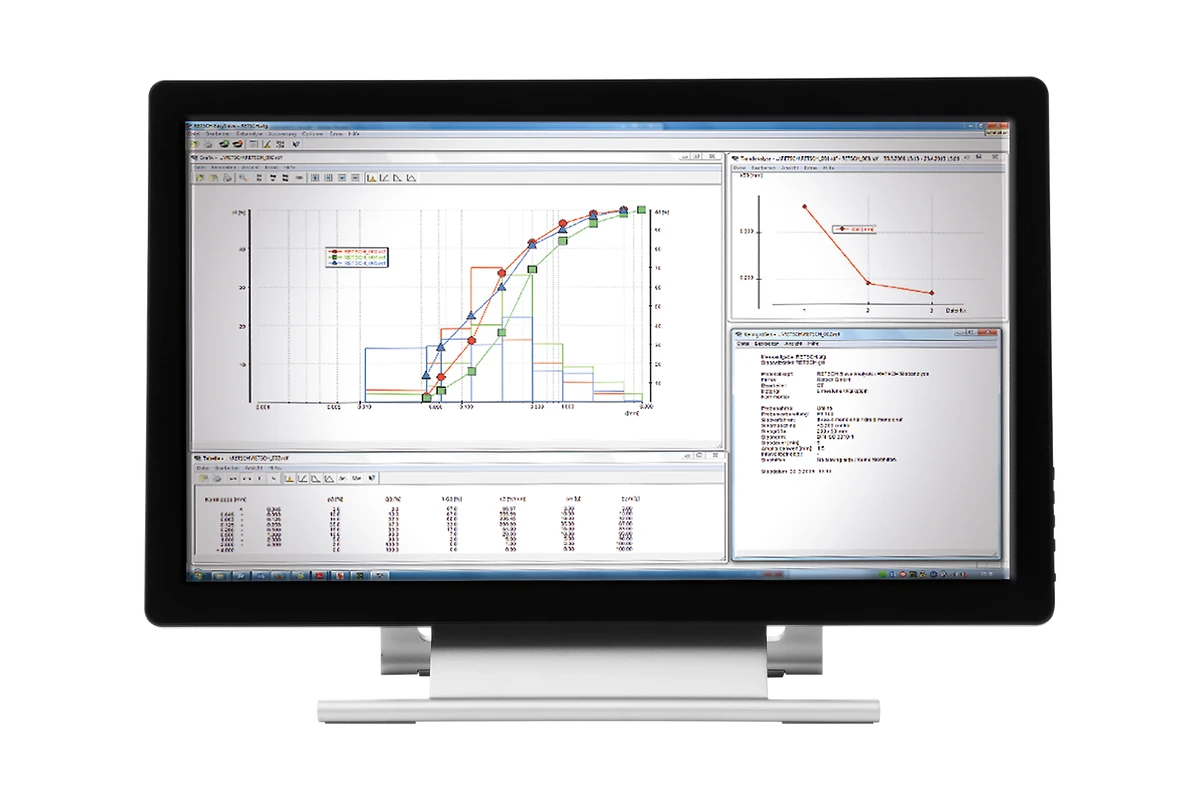

EASYSIEVE / CFR EVALUATION SOFTWARE

EasySieve, the software for particle size analyses, exceeds manual evaluation in many aspects. The software is able to automatically control the necessary measurement and weighing procedures – from the registration of the weight of the sieve up to the evaluation of the data. It is simple and convenient to use and is also available in an FDA 21 CFR Part 11-conform version.

TECHNICAL INFORMATION

Specifications & reference data

TECHNICAL DATA

Applications	separation, fractioning, particle size determination
Field of application	chemistry / plastics, construction materials, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material	powders
Measuring range*	10 µm – ~ 4 mm
Sieving motion	dispersion by air jet
Max. batch / feed capacity	0.3 – 100 g
Max. number of fractions	1 (by using a cyclone: 2)
Speed	digital, 5 – 55 min-1 (nozzle)
Time display	digital, 00:10 – 99:59 min
Interval operation	no
Vacuum	2,000 – 9,999 Pa / 20 – 99 mbar / 0.3 – 1.45 psi
Storable SOPs	9 / Quick Start mode
Suitable for dry sieving	yes
Suitable for wet sieving	no
Serial interface	yes
Including test certificate / can be calibrated	yes
Suitable sieve diameters	203 mm (200 mm with adapter)
Max. height of sieve stack	1 sieve (25 mm (1″) / 50 mm ( 2″))
Accessories	cyclone / automatic vacuum regulation
Electrical supply data	100-240 V, 50/60 Hz
Power connection	1-phase
W x H x D	460 x 288 x 305 (without cover)
Net weight	~ 16 kg
Standards	CE
