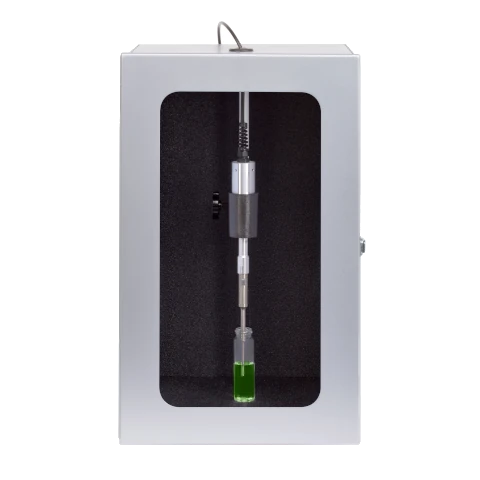

Sound enclosure
Acoustic enclosure with approximately 20 dBA noise reduction, internal support rod and converter mount, water-resistant acoustic lining, viewing window and coolant ports. Exterior: 12 W × 12 D × 20 H in.

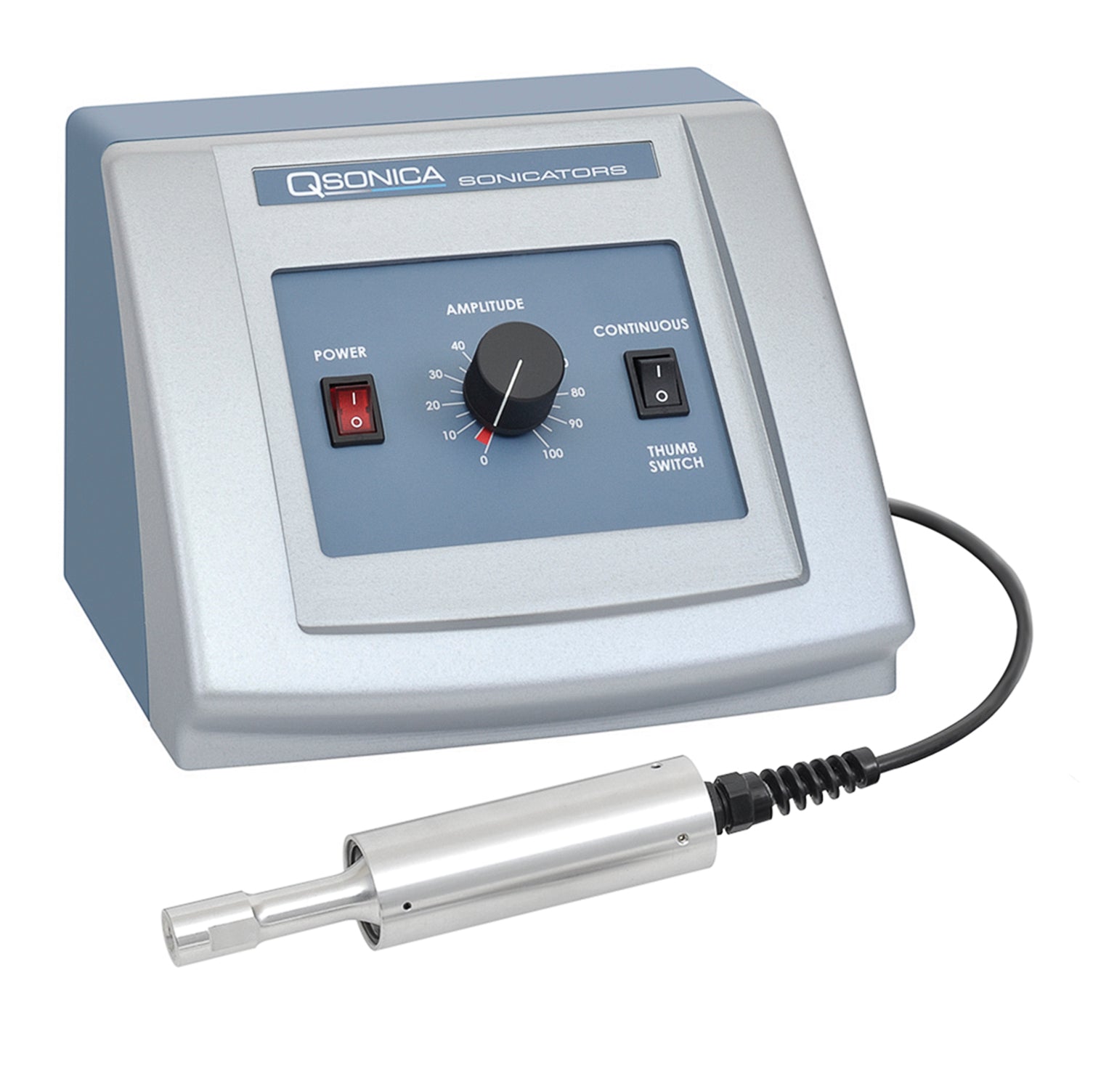

Compact small-volume ultrasonic processor
Q55 Sonicator
A space-saving 55 W ultrasonic processor for routine cell disruption and small-volume applications up to 50 mL.
PRODUCT OVERVIEW
Ultrasonic processing.
Matched to your sample.
The Q55 provides straightforward ultrasonic processing in a compact benchtop format. It is intended for routine cell disruption and other small-volume applications where a simple system is appropriate.
A thumb switch provides manual control, and continuous operation is also available. Three probe sizes support different small-sample needs. The standard system includes a 1/8 in probe, generator, converter, cables and wrench set.

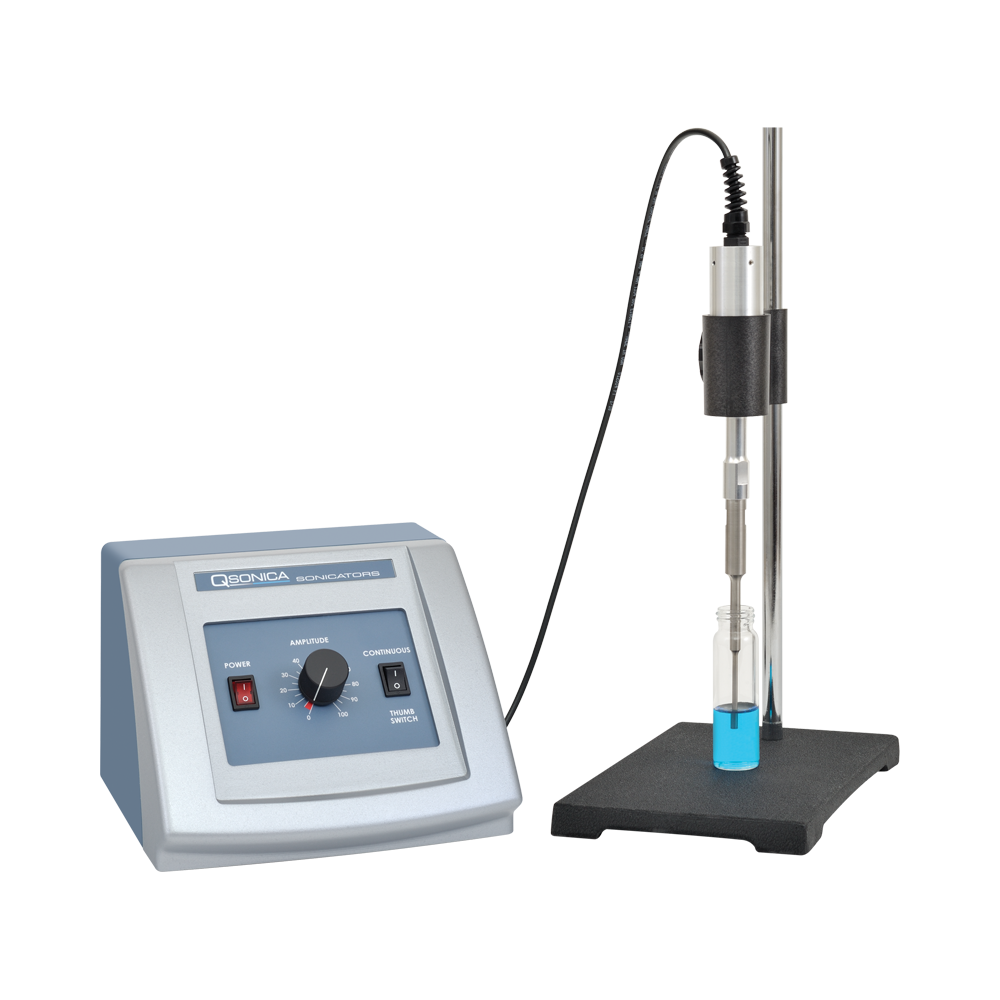

A support stand, sound enclosure and thermoconductive tube racks are available for fixed-position sample handling and temperature-sensitive workflows.
CAPABILITIES
Features
- Compact footprint for limited bench space
- Thumb-switch manual control
- Continuous processing mode
- Choice of three probe sizes
- Standard 1/8 in probe included
APPLICATION FIT
Where it works
- Routine cell disruption
- Small-volume homogenization
- General ultrasonic sample preparation
Processing capacity depends on sample properties, tube or vessel geometry and the selected probe or rack.
TECHNICAL DETAILS
Specifications
- Rated power
- 55 W
- Frequency
- 20 kHz
- Volume
- Up to 50 mL
- Operating modes
- Thumb-switch or continuous
- Generator (W × L × H)
- 8 × 7.5 × 5.75 in
- Electrical supply
- 110 V, 50/60 Hz; 220 V configuration also available
- Standard probe
- 1/8 in diameter
- System components
- Generator, converter, power and converter cables, wrench set, standard probe
System views
PARTS & ACCESSORIES
Available components

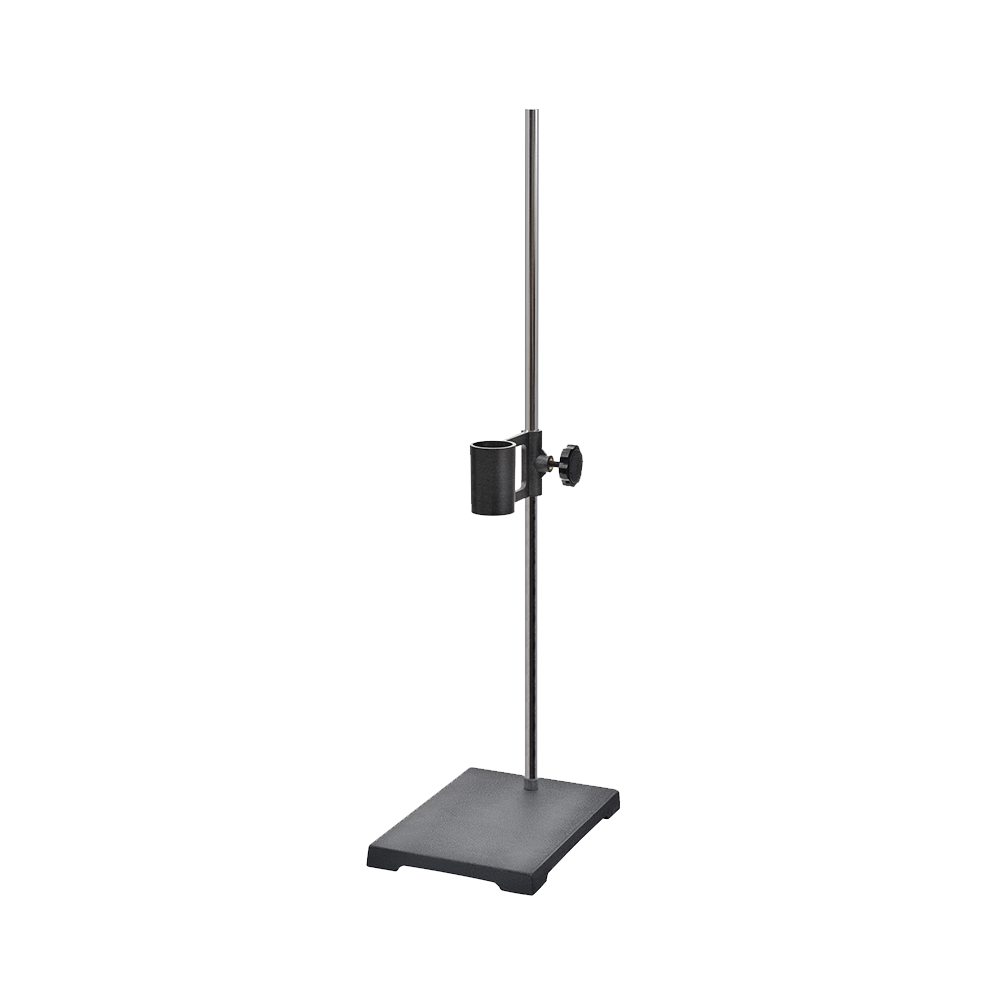

Support stand with converter holder
Fixed-position converter support with a 24 in rod and a 5.75 × 8.5 in base.

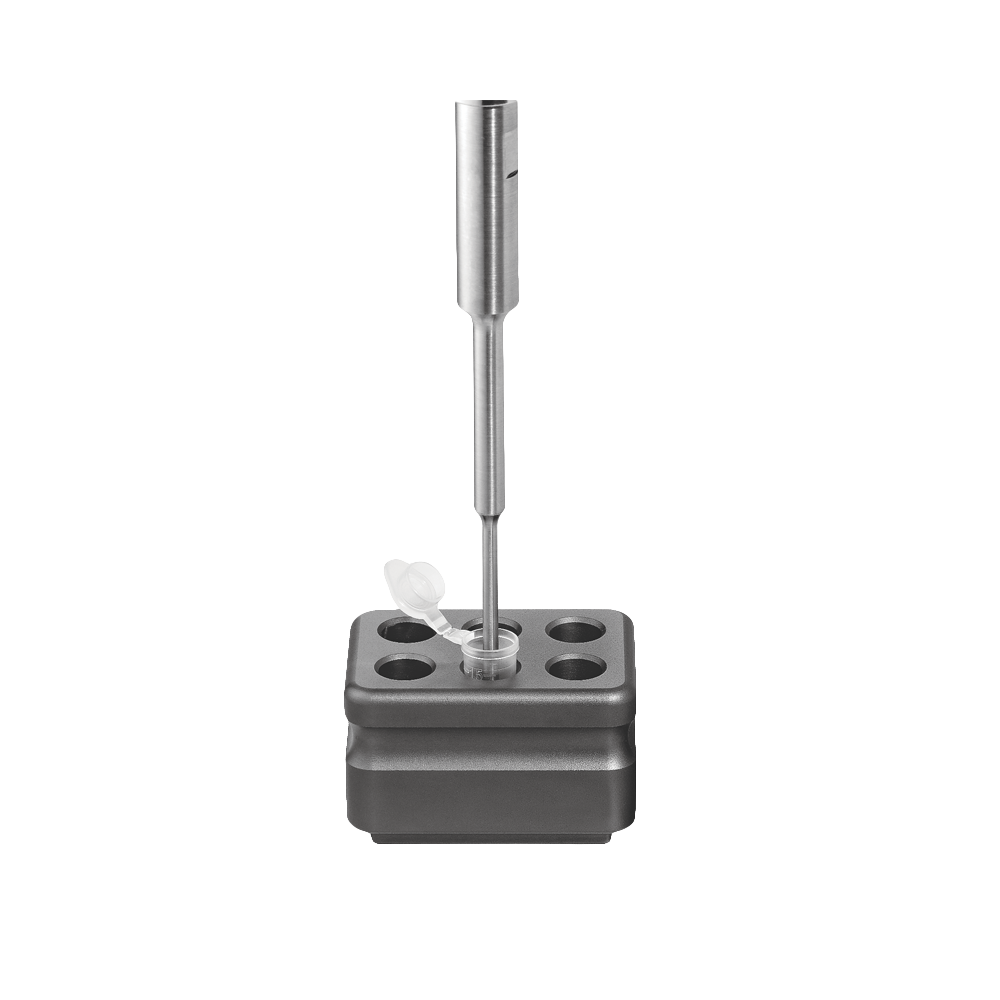

Thermoconductive tube racks
Temperature-stabilizing modules for microtubes and 15 or 50 mL tubes. Available formats include 4, 6, 15 or 24 microtube positions, nine 15 mL positions and four 50 mL positions. Hard-anodized construction; temperature-source range -196°C to +100°C.
GLEN MILLS APPLICATION SUPPORT
Discuss your sample and process.
Talk with our team about Q55 Sonicator, sample volumes and available configurations.
