PLANETARY CENTRIFUGAL MIXING

SK-10000TV

Twin 7 L cups · Vacuum-assisted

Vacuum-assisted production mixing in twin 7 L vessels, with controlled container access.

Vessel format: Twin 7 L cups
Published load / position: 10 kg, vessel included
Vacuum assistance: Vacuum-assisted

SK-10000 family photograph. Vacuum equipment and connections depend on the selected configuration.

Cup sizes are nominal vessel volumes, not useful fill. Published loads are per position; confirm vessel inclusion and the selected adapter. Plate and barrel holders require configuration-specific review.

The technical table lists 10 kg including the vessel per position. A source feature block states 20 kg; confirm the rated load for the quoted configuration.

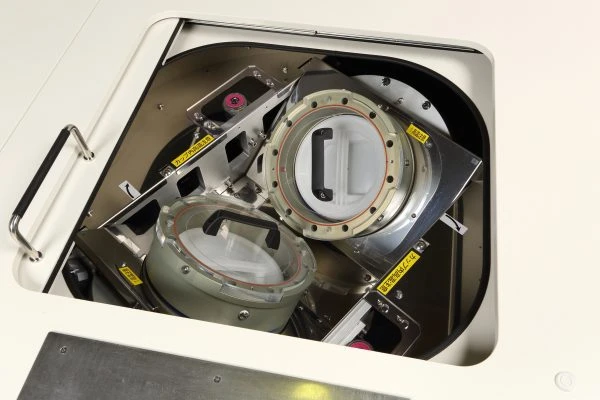

Representative family view: Inside the SK-10000 planetary centrifugal mixer showing the cup holders

Large mixing cup and cup holder for SK planetary centrifugal mixers

Two motions. One mixing process.

Planetary centrifugal motion combines vessel rotation with revolution around a central axis. Material is mixed inside the supported vessel without a conventional immersed blade.

7 L production with vacuum with vacuum assistance for air removal.

Full model description

This large-capacity planetary centrifugal mixer with vacuum assist for degassing and defoaming is designed for production-scale mixing and degassing of high-performance materials. With 7,000 mL x 2 cup specifications and a maximum processing weight of 10 kg per cup, the system provides powerful batch capacity while maintaining reliable, uniform results.

Operation is simple and intuitive through the LCD touch panel, allowing users to control and monitor processing conditions with ease. The unit is also compatible with SUS stainless steel containers, making it suitable for demanding industrial, laboratory, and advanced material applications. For improved ergonomics and safer handling of heavy containers, an optional handling assist is available to support smoother loading and unloading during routine operation.

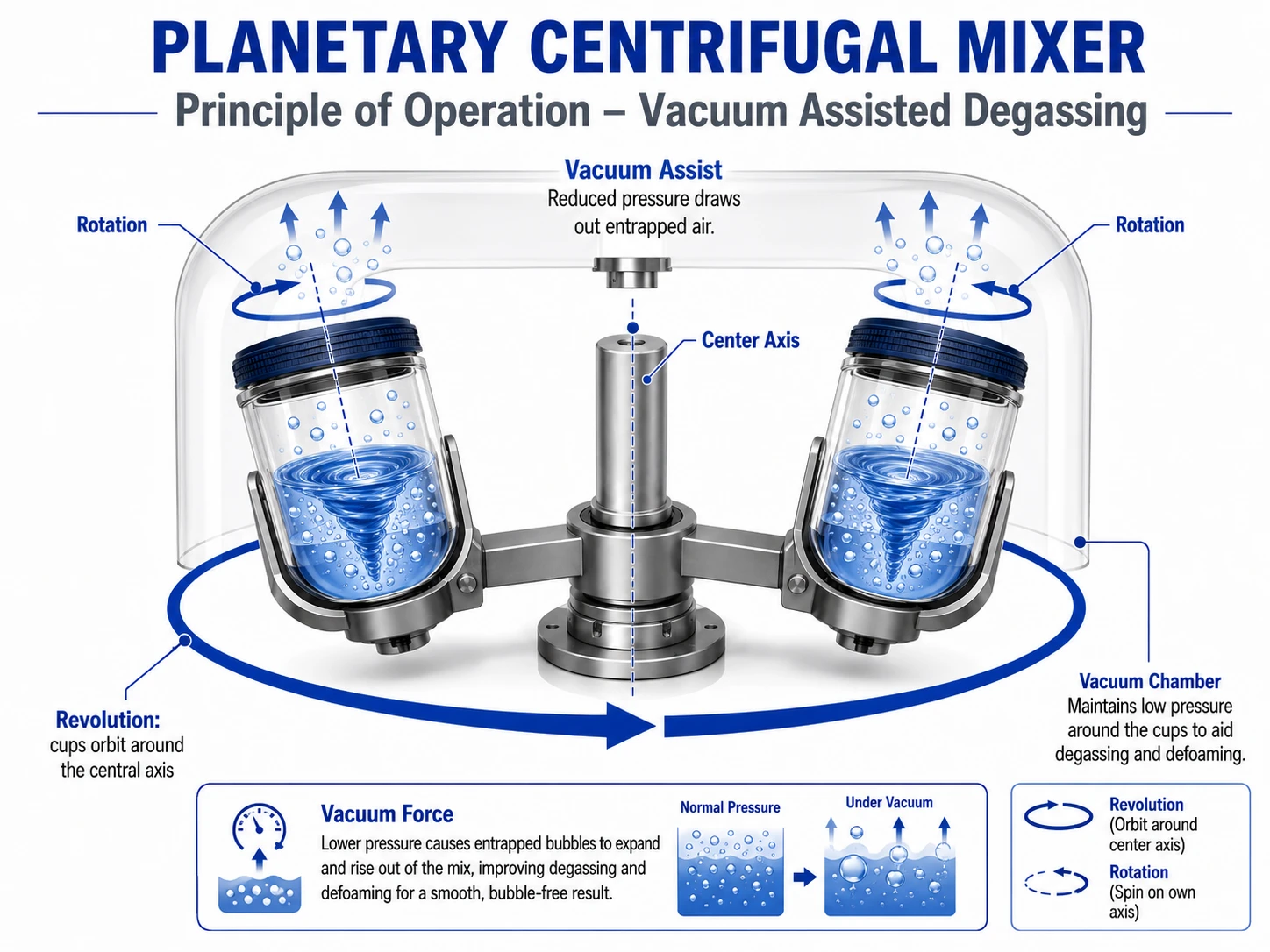

Conceptual motion diagram. Vessel and holder geometry vary by model.

Controls and handling.

Mixing controls

Operating features and reference symbols

Throughput
•7000 ml (20.0 kg) x 2 cups

Function
• Individual rotation and revolution control.
• Step operation to help with stubborn materials.
• Vacuum assist for degassing and defoaming.

SK-10000TV – Twin 7.0 Liter Cups With Vacuum illustration 1

SK-10000TV – Twin 7.0 Liter Cups With Vacuum illustration 2

SK-10000TV – Twin 7.0 Liter Cups With Vacuum illustration 3

Monitor the processing conditions.

Review speed settings and recorded process data alongside the formulation result. Vacuum models also display pressure.

Process monitoring details

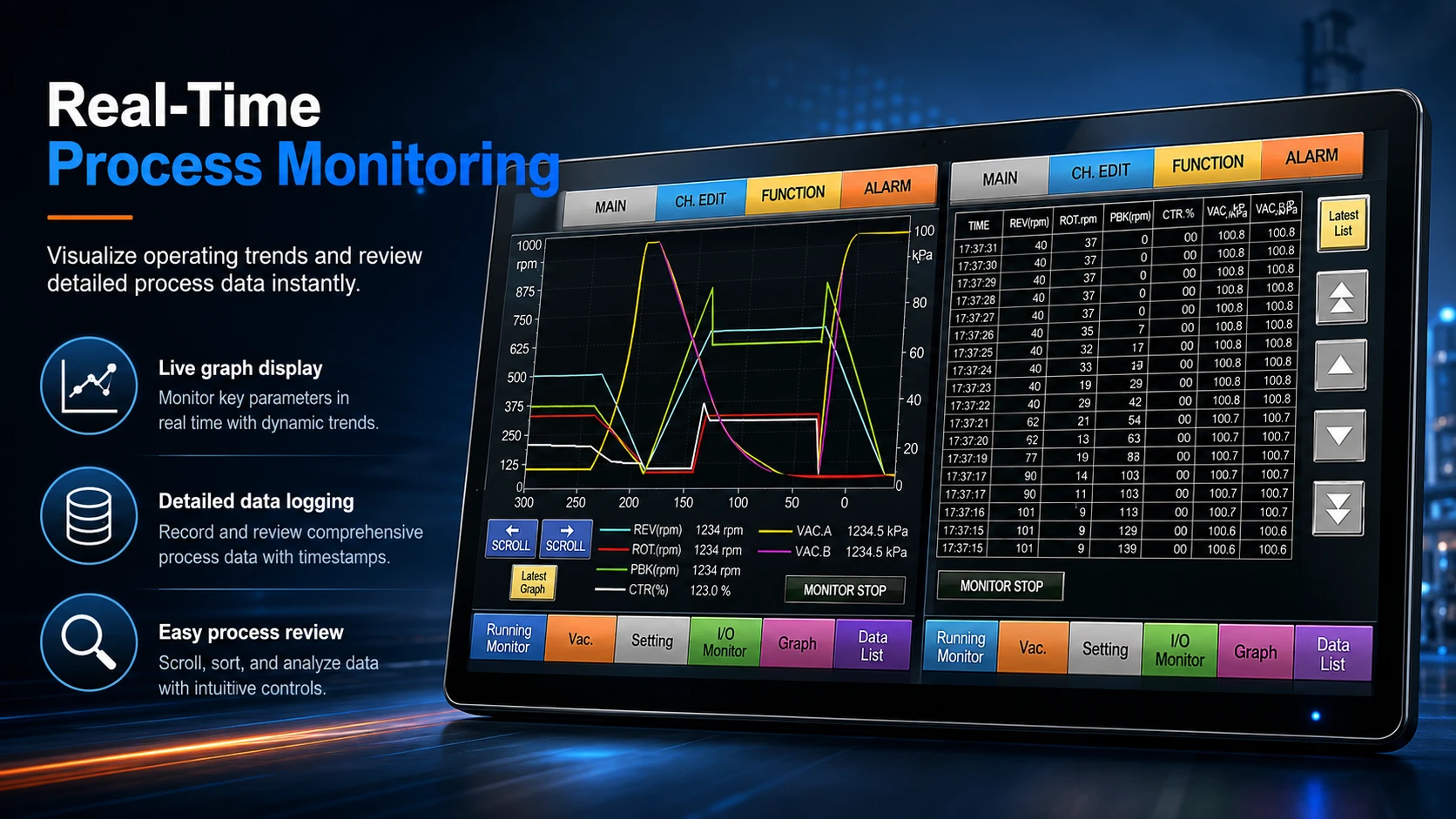

The system makes operating data easy to monitor by displaying key process information both graphically and numerically. Users can view revolution speed, rotation speed, vacuum pressure, and other important operating parameters in real time, either as a visual graph or in log form. This allows operators to track process conditions, confirm repeatability, and review performance data after mixing and degassing.

The ability to monitor and record operating conditions supports better quality control, easier troubleshooting, and more consistent processing results.

Container access and rotor positioning

Handling features

This model is designed to make container handling smoother, safer, and more convenient, especially when working with heavy containers filled with material.

Instead of manually turning the cup tray rotor or struggling to remove containers from difficult positions, the system includes a rotor stopping position setting function that allows the rotor to stop in a user-selected position at the end of operation for easier container access. It also features a cup tray rotor 180-degree turning function, which automatically rotates the rotor halfway with the press of a button, bringing the opposite container into an easy removal position.

These functions help reduce operator effort, improve workflow efficiency, and make loading and unloading containers more ergonomic during routine mixing and degassing operations.

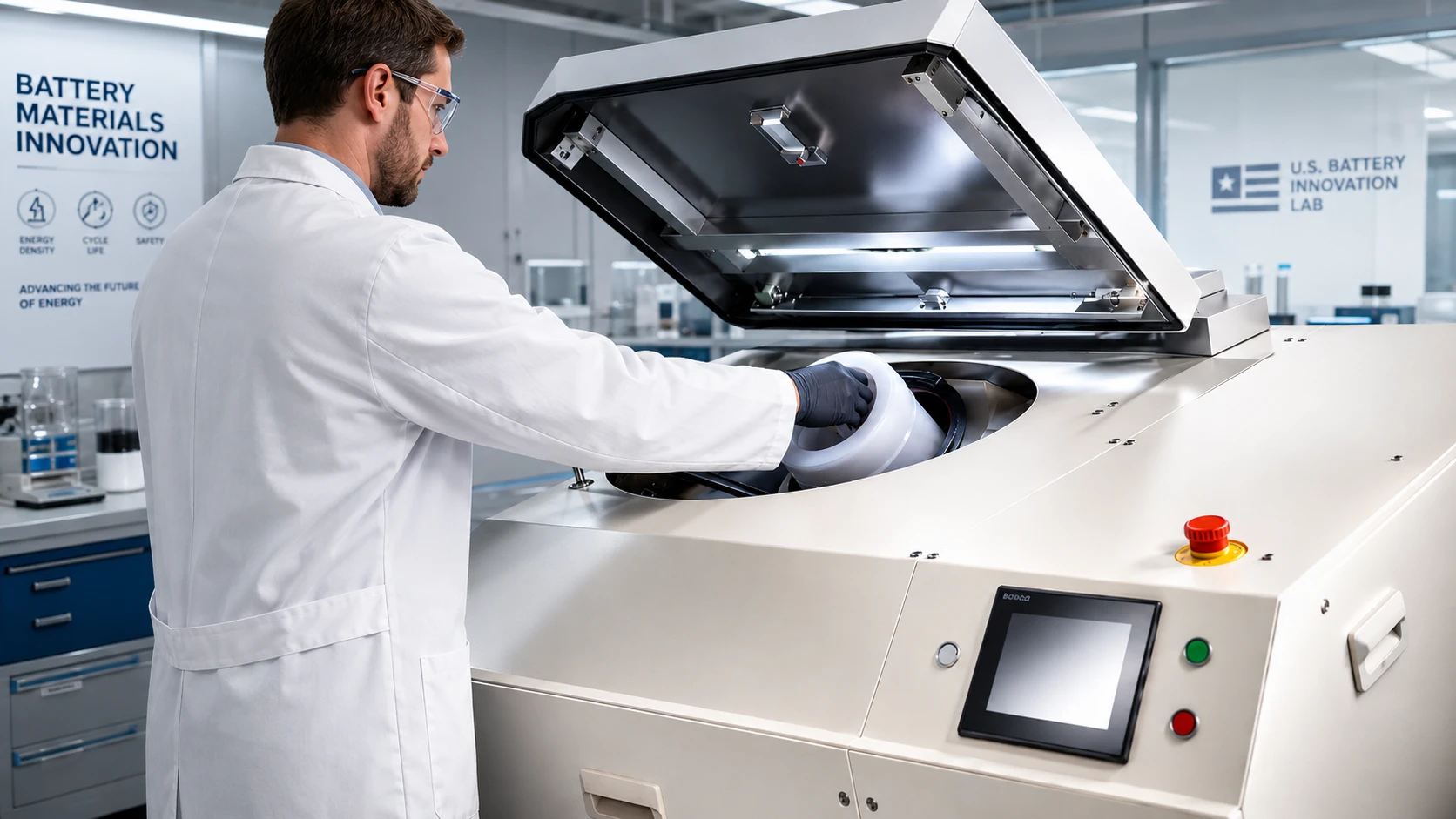

Technician removing a mixing cup from an SK planetary centrifugal mixer — Step 1: Remove one container

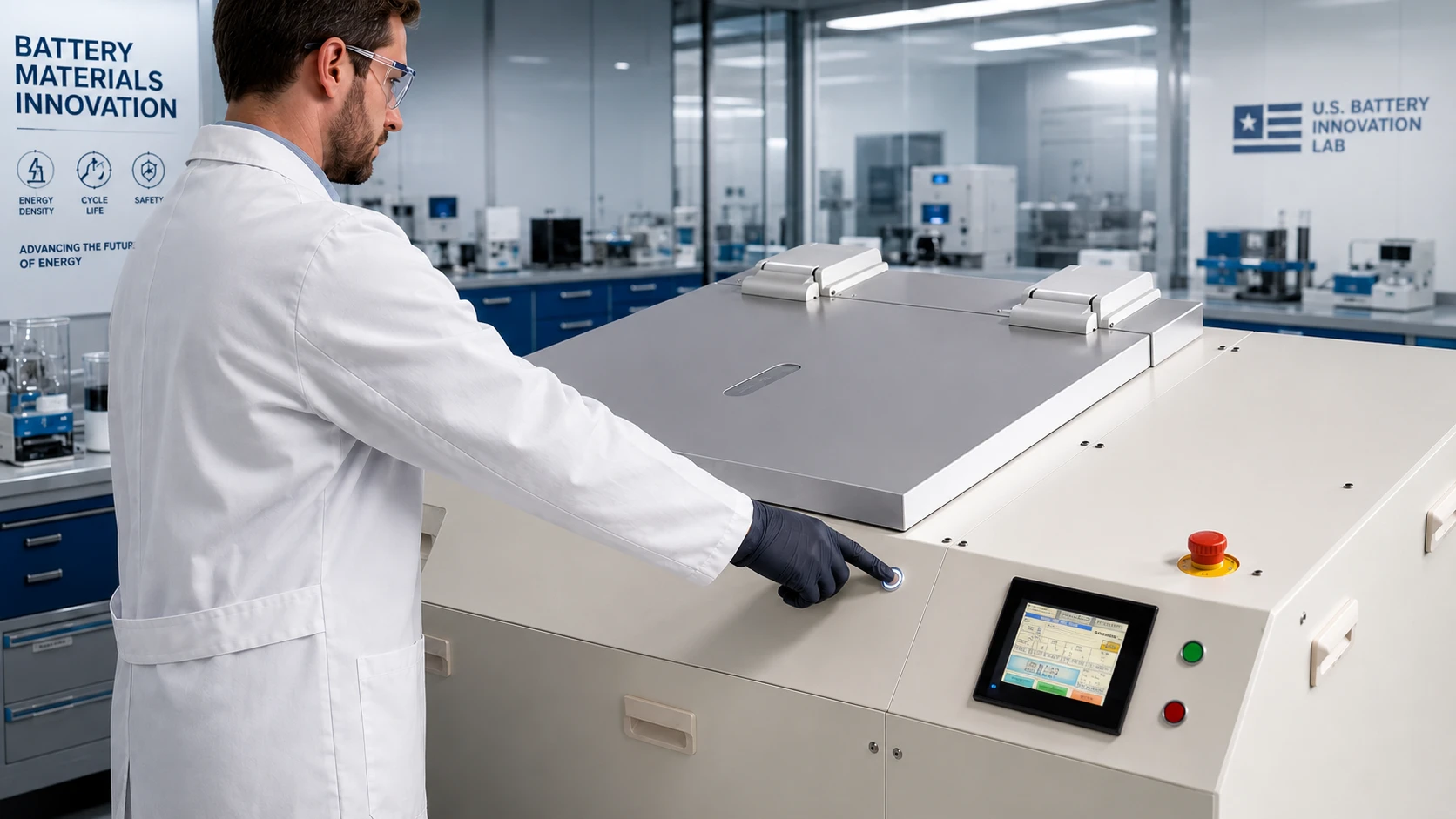

Technician opening an SK planetary centrifugal mixer — Step 2: Close the lid of the machine and press the button.

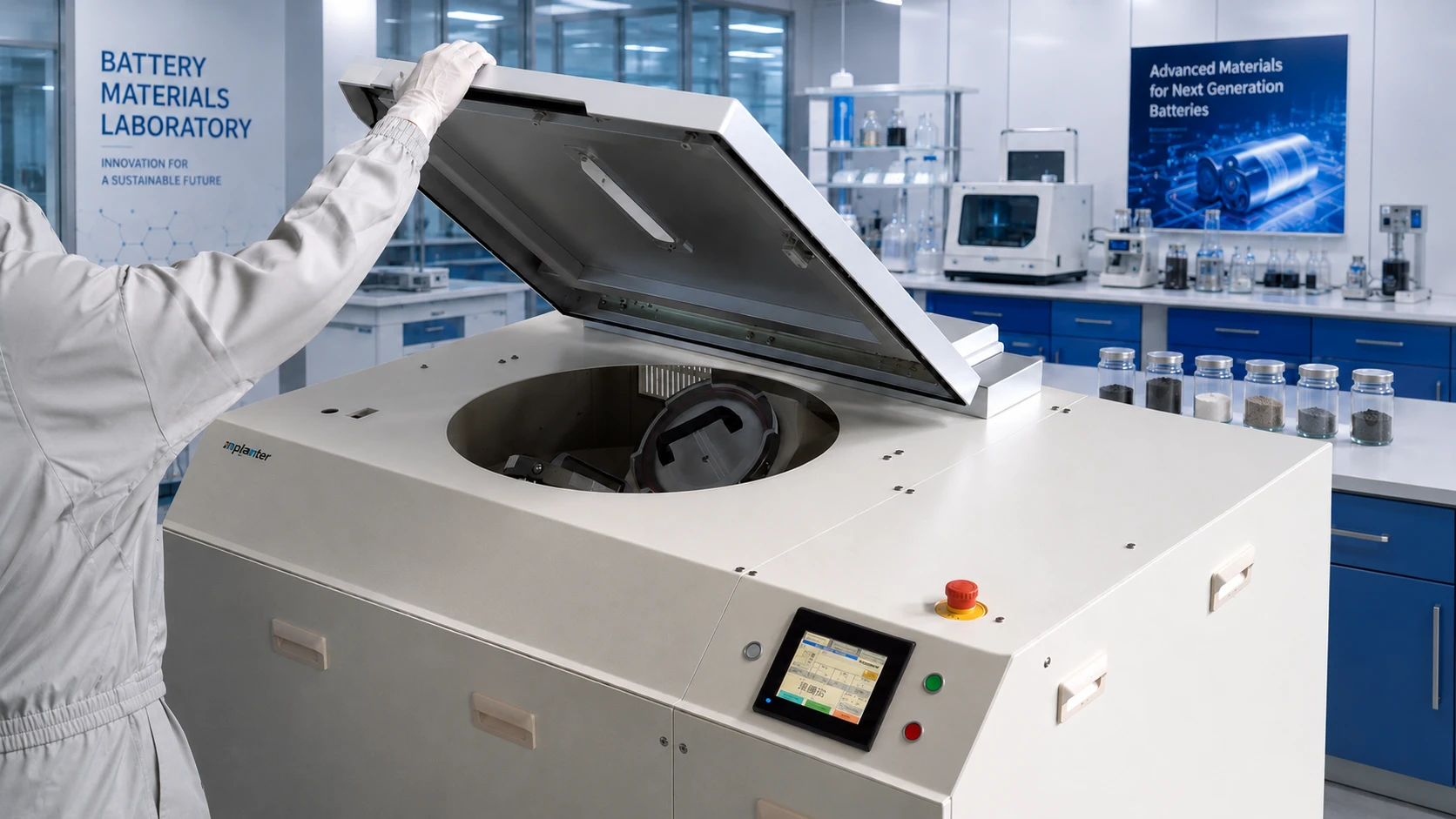

Technician lifting a mixing cup out of an SK planetary centrifugal mixer — Step 3: The rotor makes a half turn and stops at the same position as the previous container.

Touchscreen operation

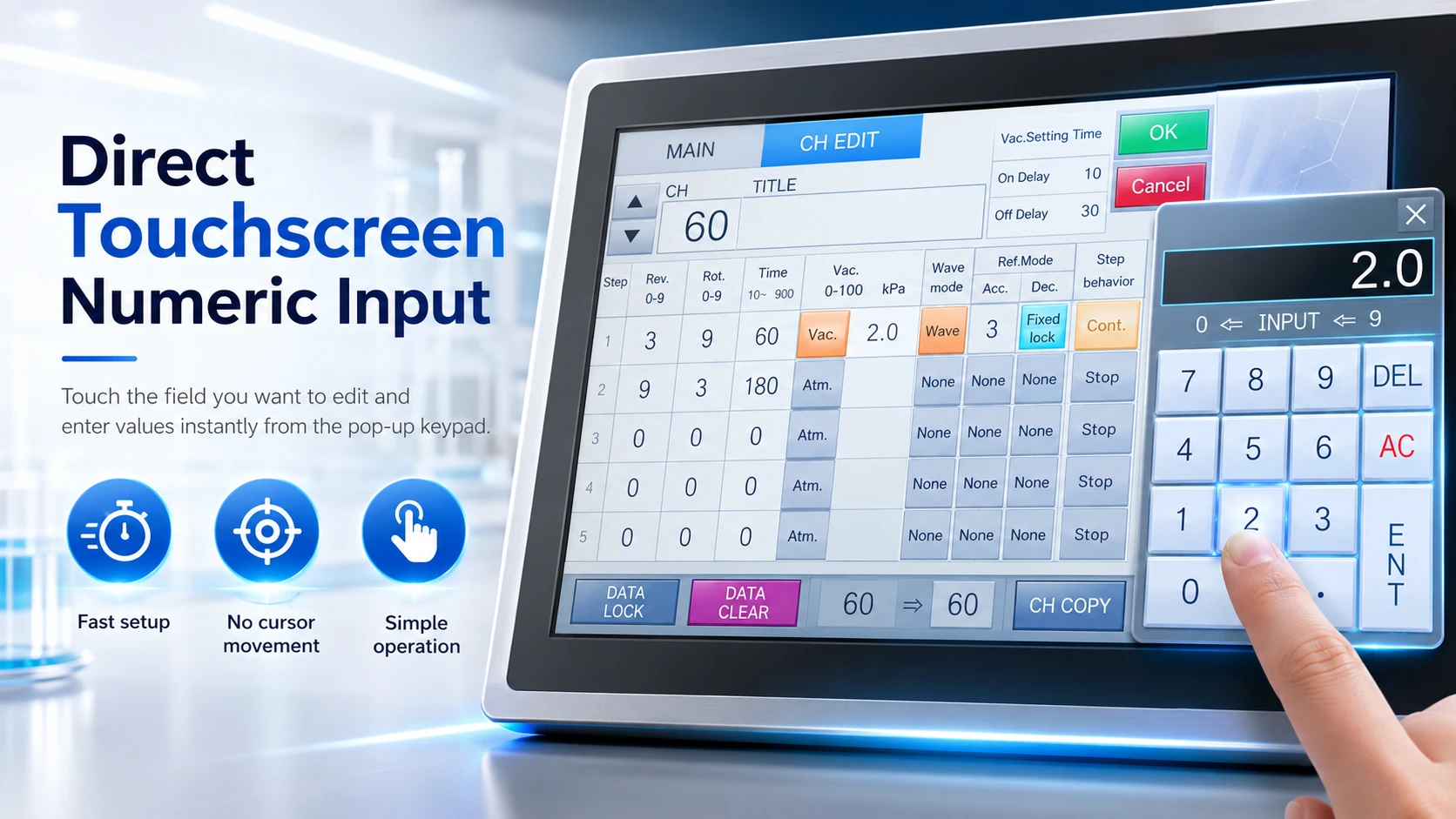

The touchscreen interface is designed for simple, intuitive operation. Users can touch the field they want to edit and enter values directly, making setup faster and easier. Speed settings, operating time, and other numerical parameters can be entered using a pop-up numeric keypad, eliminating the need to move a cursor with buttons or scroll through values manually.

This streamlined input method improves usability, reduces setup time, and helps operators enter process conditions more accurately.

Find your application fit.

Application examples

Find the material family closest to your work. Select an image to examine the example materials.

Adhesives & sealants

Mixing and air removal for epoxy, silicone and filled adhesive or sealant formulations.

Coatings, inks & paints

Preparing pigment, binder and coating formulations with attention to dispersion and entrapped air.

Battery & energy materials

Mixing electrode slurries, conductive pastes and other energy-material formulations.

Electronics & advanced materials

Preparing conductive, thermal and ceramic pastes for materials development.

Pharmaceutical & medical materials

Exploring mixing and deaeration methods for research formulations and medical materials.

Cosmetics & personal care

Mixing creams, gels and other personal-care formulations while managing entrapped air.

Chemical & polymer formulations

Combining resins, fillers and additives in chemical and polymer formulation work.

Food & consumer product R&D

Developing mixtures, pastes and other sample formulations for product research.

Illustrative material families guide an application discussion. Confirm the vessel, material compatibility and processing conditions for your formulation.

View mixing principles & example results

Planetary centrifugal mixing principle — Mixing principle. Select the image to enlarge.

Mixing before-and-after examples — Before-and-after examples. Select the image to enlarge.

Vessels, adapters and optional monitoring.

Choose the vessel and matching adapter.

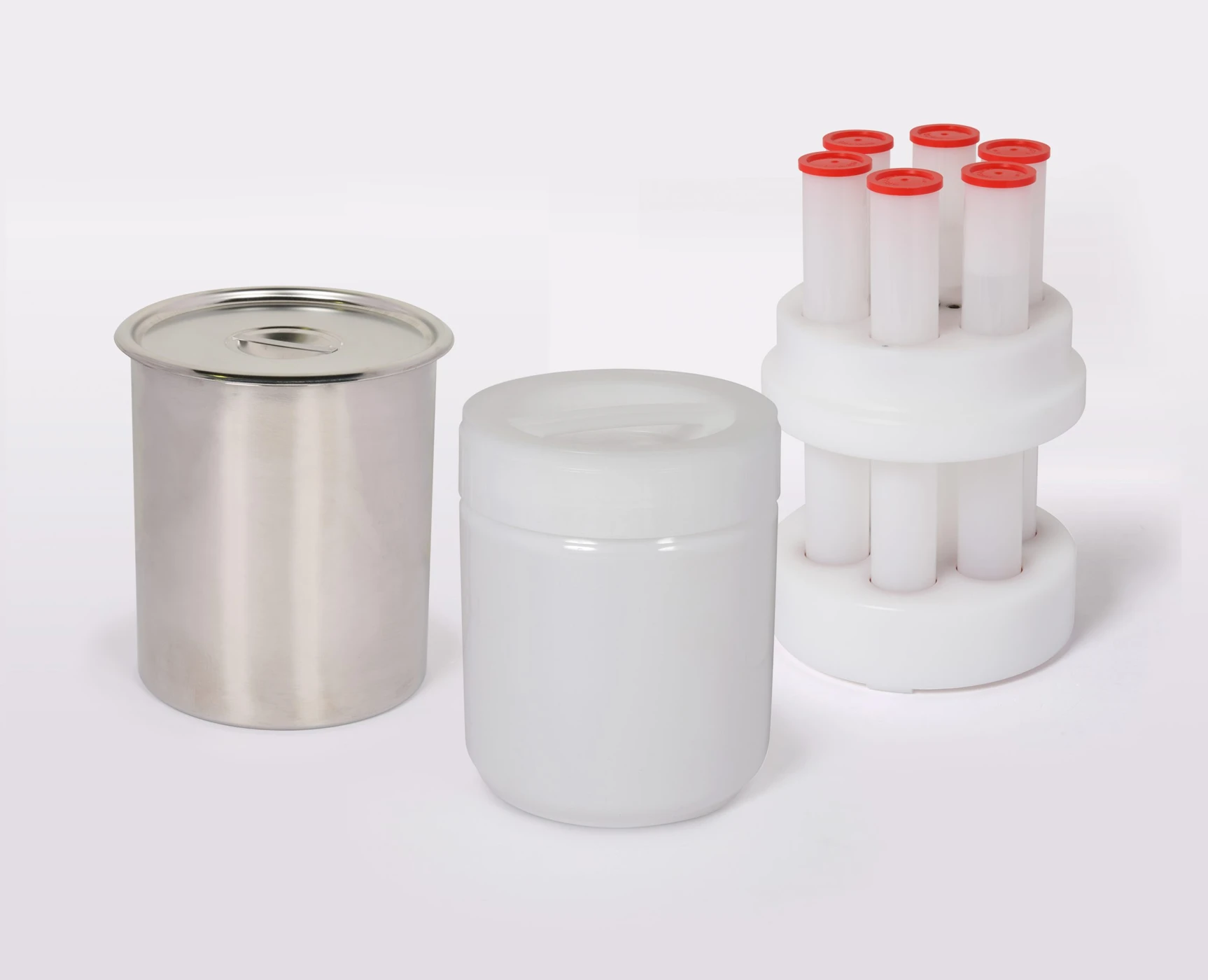

Mixing cups and containers for SK planetary centrifugal mixers — Vessel formats

Cup adapters for SK planetary centrifugal mixers — Matching adapters

Review container dimensions, material compatibility, fill quantity and total loaded mass together. Available formats depend on the model and adapter.

Container and adapter details

The Kakuhunter mixer can accommodate multiple container sizes and shapes, giving users flexibility when processing different material volumes, viscosities, and application requirements. By using the proper adapter, materials can be mixed and degassed in small jars, syringes, cups, bottles, and specialty containers without needing to transfer the material between vessels. This helps reduce material loss, minimize contamination risk, and improve workflow efficiency.

The ability to use different container formats makes the system suitable for a wide range of applications, from small-scale R&D samples to larger laboratory batches, while maintaining consistent mixing, dispersion, and bubble removal performance.

Optional temperature monitoring

The optional Kakuhunter Temperature Monitoring System allows users to measure and monitor material temperature in real time during the mixing process. This accessory helps improve process control, supports repeatable results, and provides added protection for temperature-sensitive materials.

Measures and monitors material temperature while mixing
Displays real-time temperature data from the integrated temperature sensor
Provides alarm notifications when the measured temperature exceeds the preset upper or lower limit
Allows measured temperature data to be exported in CSV format for recordkeeping and analysis
Compatible with all available containers

For temperature-sensitive formulations

· Materials are damaged by temperature rises.
· Materials harden with temperature rises.
· The composition of materials changes or their components volatilize, etc.

Non-contact temperature sensor inside an SK planetary centrifugal mixer

Optional temperature monitoring kit: components

Three components for the optional temperature monitoring system.

Select an image to view it larger.

Mixing container with temperature sensor for SK planetary centrifugal mixers

Container & transmitter

Container with temperature transmitter cover assembly.

Wireless receiver

Receiver for customer computer

Computer shown for context.

Temperature monitoring application software display

Monitoring software

Sensor Application Software

Technical specifications.

On a small screen, swipe across the table to see every column.

Model data

Cup size		7000ml commercially available containers or standard SUS containers [customizable]
Max throughput		10kg (container included) x 2 cups [customizable]
Other containers		A variety of containers and syringes can be used by use of an adapter
Speed of revolution		100～400rpm Settable at 9 steps
Speed of rotation		with respect to 0 ~ 1.0 x revolution Settable at 10 steps
Setup time		Maximum 25 minutes (5 step total)
Step mode		5 steps Continuous operation can be performed with 5 different types of operation patterns (condition settings)
Conditions setting memory	User-settable channels	90 CH
	Fixed data channels	10 CH
Power supply voltage		Three-phase 200-240V 50/60Hz
Power consumption		Max 18kW
External dimensions		W1900×D1300×H980(mm) (excluding external vacuum pump)
Weight of the main unit		Approx. 1530 kg (excluding external vacuum pump)

* It differs machine throughput depending on materials characteristic.
* Revolving speed may change depending on materials characteristic.
* Detailed specification may change without prior notice.
