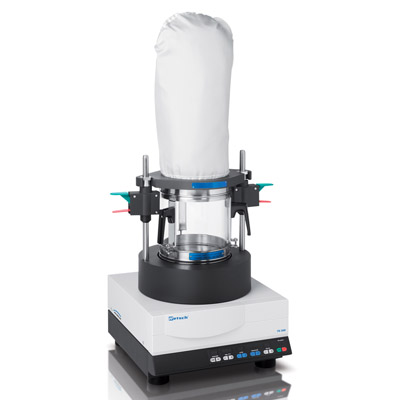

TG 200.
Fluid Bed Dryer.

The fluid bed dryer TG 200 is used in quality control, sample preparation, and R&D departments. It permits the gentle drying of organic, inorganic, chemical, or pharmaceutical bulk materials without localized overheating. Suitable materials can be coarse, fine, crystalline, fibrous, or leafy. The powerful fan of the fluid bed dryer ensures optimal air throughput so that the products to be dried are loosened up and thoroughly mixed resulting in short drying times.

Discuss this product Technical information

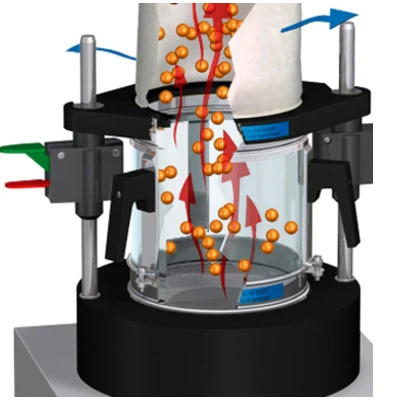

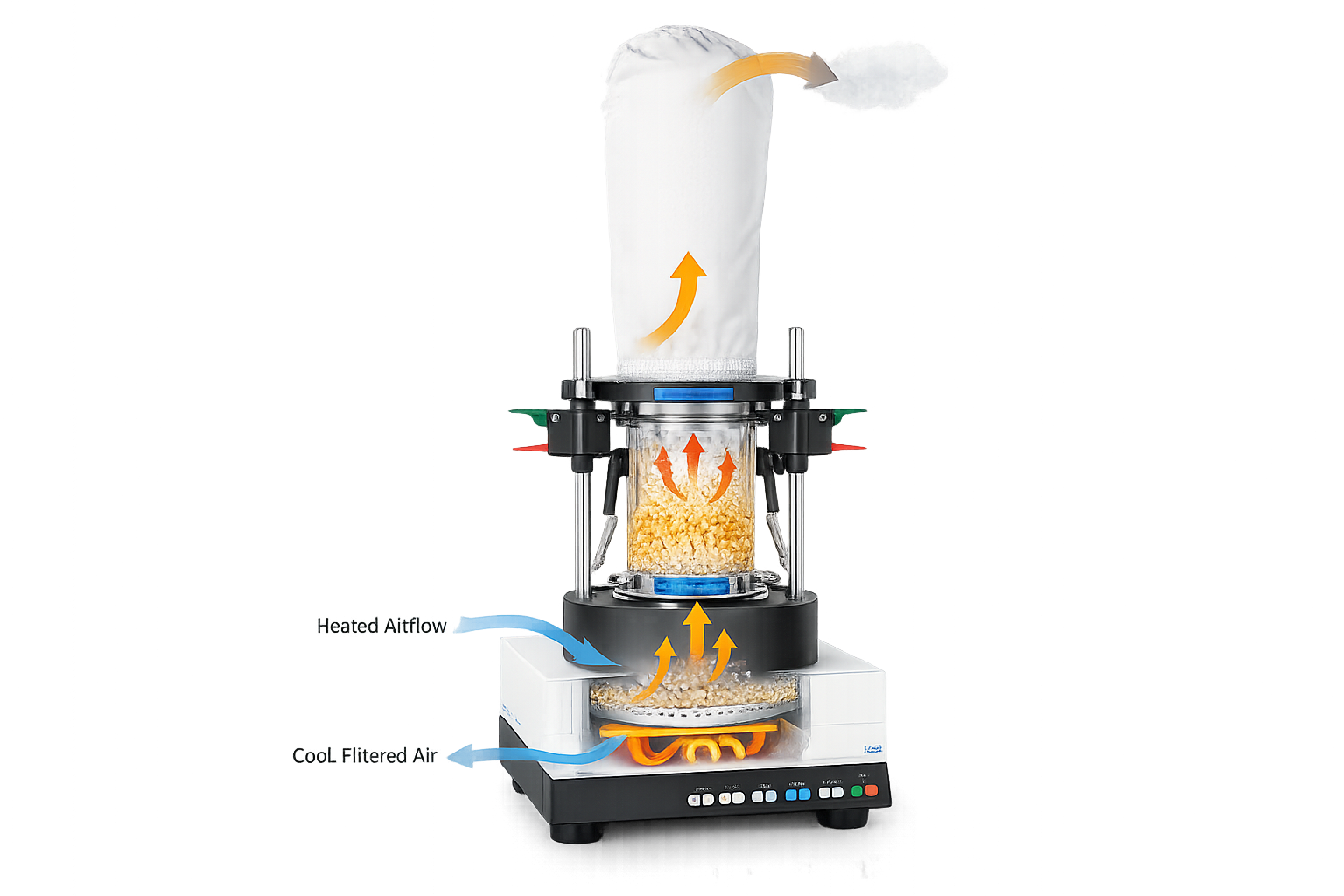

Diagram of hot air flowing through the TG 200 drying container

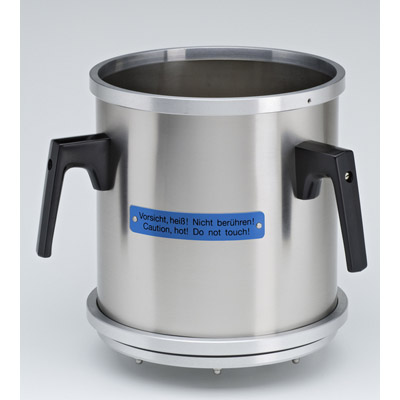

Stainless steel drying container for the TG 200

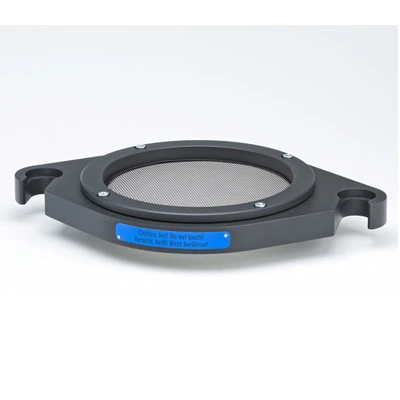

Sieve bottom for a TG 200 drying container

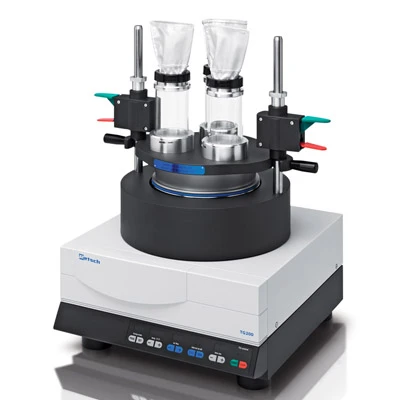

TG 200 fluid bed dryer with three drying containers

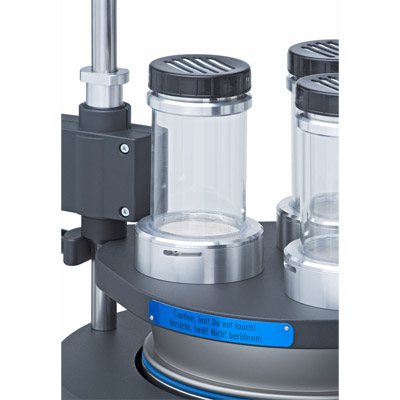

Close-up of drying containers on the TG 200 fluid bed dryer

Product and configuration photographs. Select an image to enlarge.

Material feed size> 100 µm

Volume flow185 m3/h

Temperature controlcontinuously adjustable, 40 – 130 °C (depending on air throughput rate)

Container volume1 x 6 l / 3 x 0.3 l

THE PRODUCT IN FOCUS

Model overview

The TG 200 now offers an extended maximum time setting, increased from 99 minutes to 9 hours, with several intermediate steps. This enhancement allows users to initiate longer drying processes, including overnight operations, without any risk. Continuous drying remains an available option.

PERFORMANCE & OPERATION

Features. Operation. Handling.

PRODUCT ADVANTAGES

gentle drying, dispersing and mixing also of temperature-sensitive materials
max. drying time of 9 hours with several intermediate steps
very short drying times (~ 5 – 20 min)
powerful fan for optimal air throughput
easy handling
interval operation for better mixing of the fluidized bed
wide range of accessories including various containers
memory for up to 9 SOPs
motor with no brushes allows for long service life

FUNCTIONAL PRINCIPLE

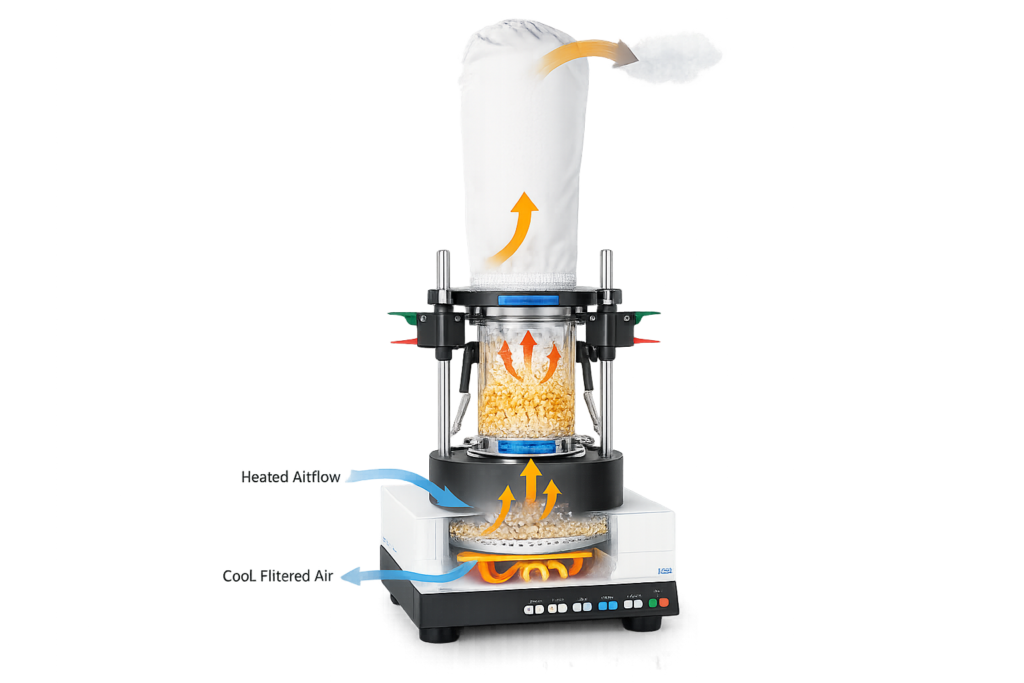

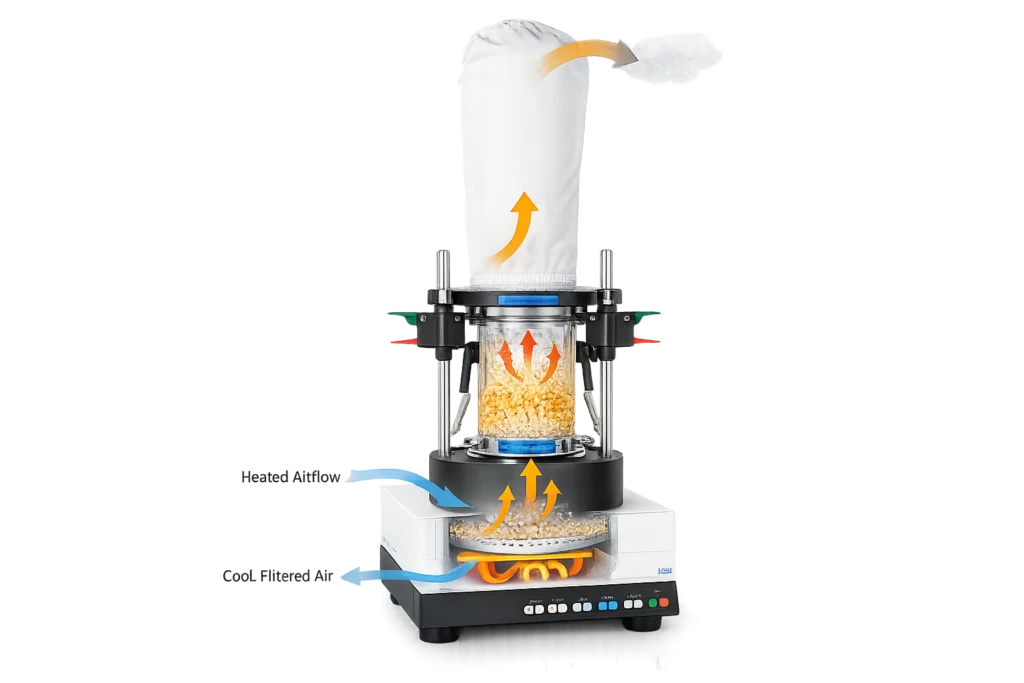

Drying in the Fluid Bed Dryer TG 200 makes use of the fluidized bed process, a technique similar to the one used in large industrial dryers. Ambient air is drawn in through a filter. A blower moves the air across the heating elements, and ultimately forces it through the perforated plate and into the detachable drying container. The solid particles are blown upward and dispersed and thus kept separate from one another. This helps to avoid a caking and sticking of the particles as it often occurs when other drying methods are used.

The air stream of the fluid bed dryer extracts moisture from the particles and then exits through the filter bag in the cover. Using the quick-clamp cover with the filter fleece insert is advisable when dealing with products finer than 100 μm in diameter. The 1000 watt blower provides an air volume of 185 m³/h at idle speed; heater output is 2000 watts. The air volume, heating power and temperature are infinitely adjustable. Temperature control is effected using he display gauge.

Click for larger view

APPLICATIONS & METHODS

Build the process around the sample.

APPLICATION EXAMPLES

Cellulose, coal, coke, compost, leather, pharmaceutical materials, plastic granules, refuse derived fuels, saw dust, soils, splints, waste samples, …

Also used for rapidly drying media, test sieves, and small parts.

TECHNICAL INFORMATION

Specifications & reference data

TECHNICAL DATA

Applications	drying
Field of application	agriculture, biology, chemistry / plastics, construction materials, environment / recycling, food, medicine / pharmaceuticals
Feed material	bulk materials and solids
Material feed size*	> 100 µm
Volume flow	185 m3/h
Time setting	digital, 1 – 99 min / 2 – 9 hours / continuous operation
Storable SOPs	9
Temperature control	continuously adjustable, 40 – 130 °C (depending on air throughput rate)
Drying time*	5 – 20 min, depending on product, quantity, moisture content
Container volume	1 x 6 l / 3 x 0.3 l
Electrical supply data	200-240 V, 50/60 Hz
Power connection	1-phase
W x H x D	400 x 1000 x 480 mm
Net weight	~ 21 kg
Standards	CE
