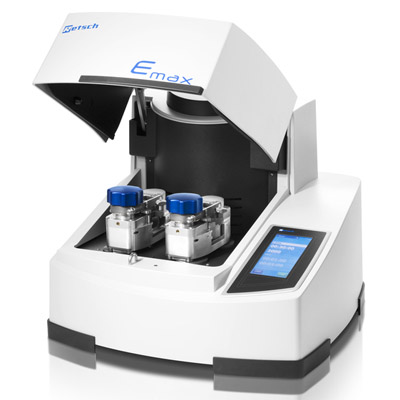

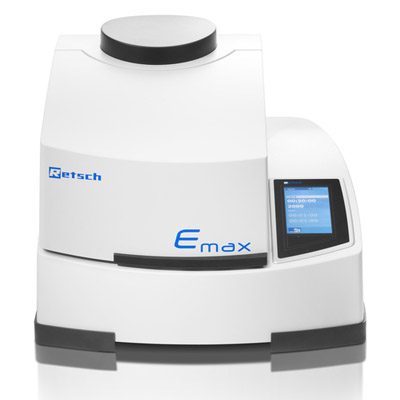

Emax High Energy Ball Mill

The Emax is an entirely new type of ball mill for high energy milling. The unique combination of high friction and impact results in extremely fine particles within the shortest amount of time.

Product Advantages

  • Faster and finer grinding than any other ball mill
  • Speed of 2000 min-1 allow for ultra-fast pulverization of the sample
  • Water cooling permits continuous operation without cool down breaks
  • Temperature-controlled grinding
  • Narrow particle size distribution thanks to special jar design which improves mixing of the sample
  • Patented drive concept

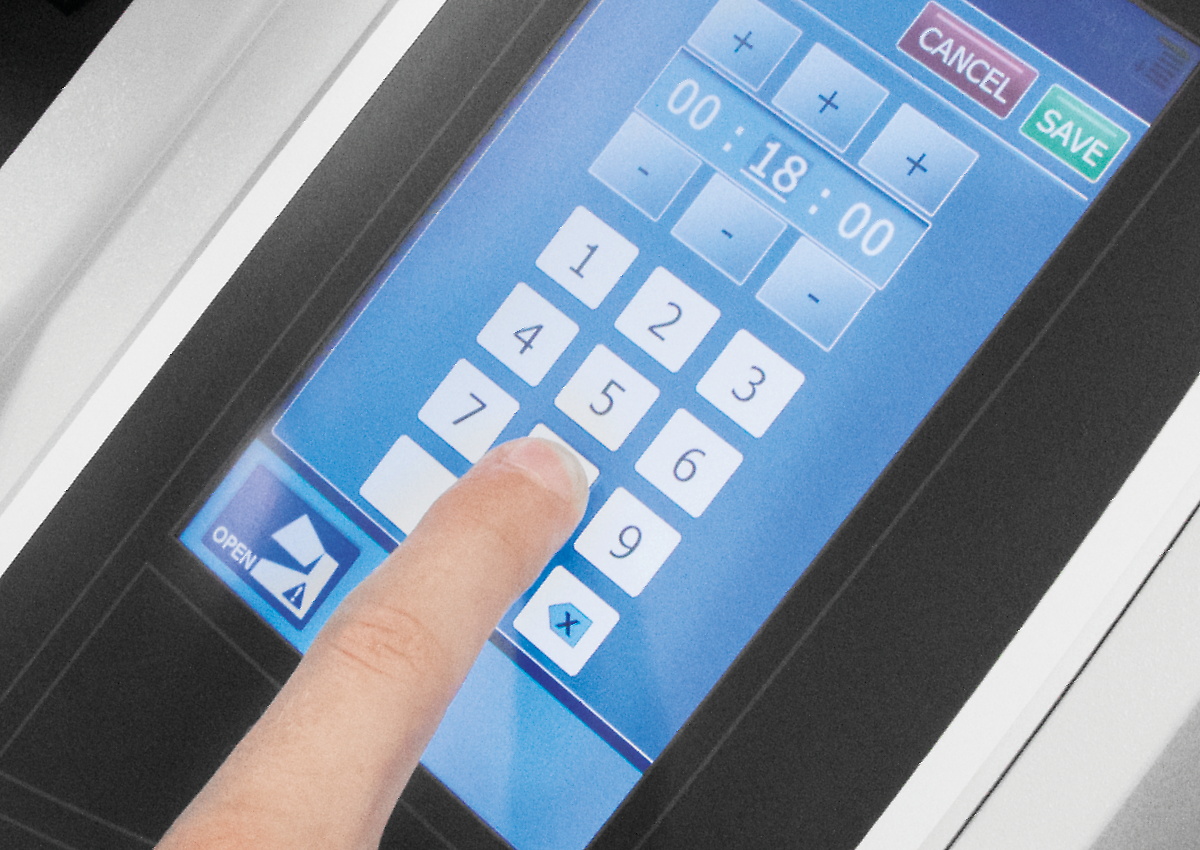

  • Easy operation via touch screen, 10 SOPs storable
  • Operation with 2 grinding jars

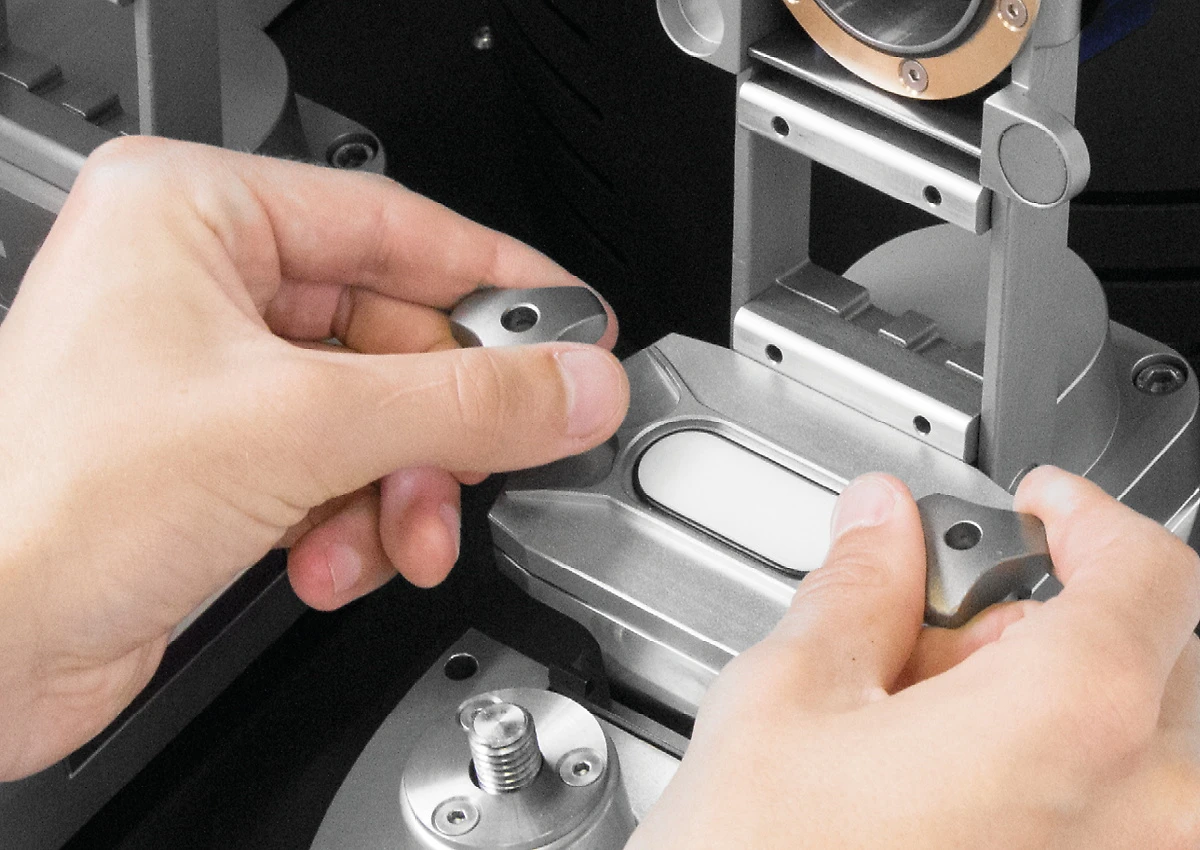

  • Easy installation of grinding jars

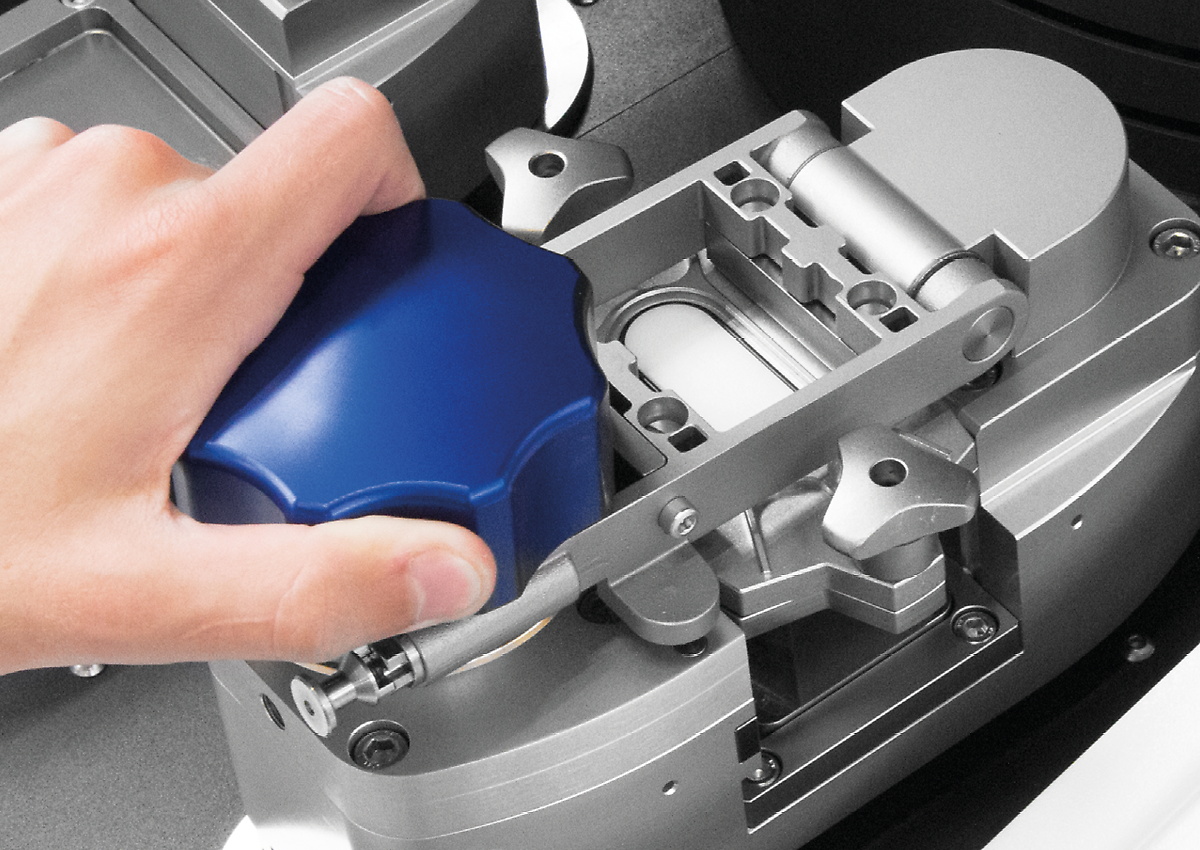

  • Jars with integrated safety closure
  • Range of jar materials allow for contamination free grinding

Function Principle

The novel size reduction mechanism of the Emax unites the advantages of different mill types: high-frequency impact (mixer mill), intensive friction (vibratory disc mill) and controlled circular jar movements (planetary ball mill) allow for unrivaled grinding performance. This unique combination is generated by the oval shape and the movement of the grinding jars. The grinding jar supports are mounted on two discs respectively which turn in the same direction. As a result, the jars move on a circular course without changing their orientation.

The interplay of jar geometry and movement causes strong friction between grinding balls, sample material and jar walls as well as a rapid acceleration which lets the balls impact with great force on the sample at the rounded ends of the jars. This significantly improves the mixing of the particles resulting in smaller grind sizes and a narrower particle size distribution than has been possible to achieve in ball mills so far.

Applications: nano grinding, size reduction, homogenizing, mechanical alloying, colloidal milling, high energy comminution
Field of application: agriculture, biology, chemistry, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material: medium-hard, hard, brittle, fibrous – dry or wet
Size reduction principle: impact, friction
Material feed size* < 5 mm
Final fineness*: < 80 nm
Batch size / feed quantity*: max. 2 x 45 ml
Speed at 50 Hz (60 Hz): 300 – 2000 min-1

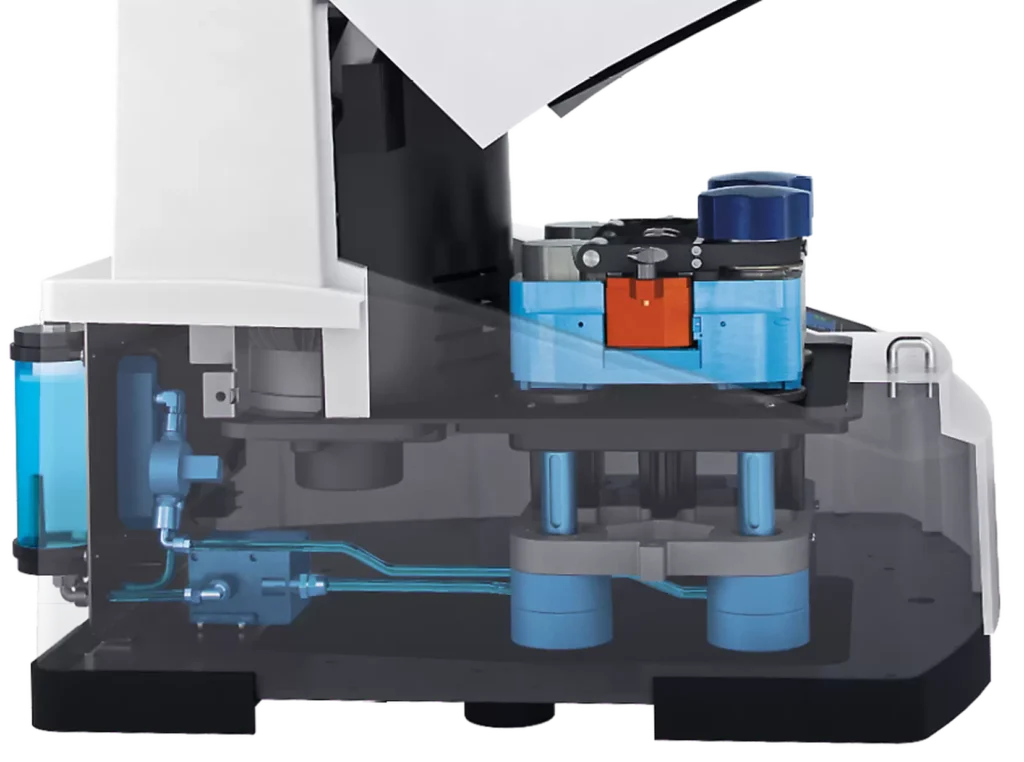

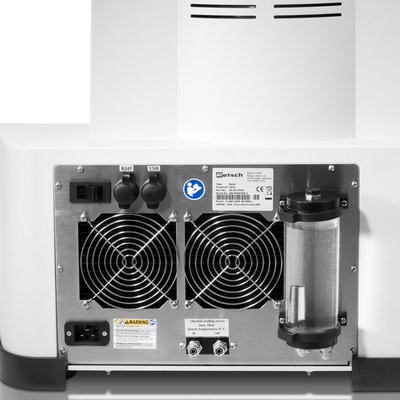

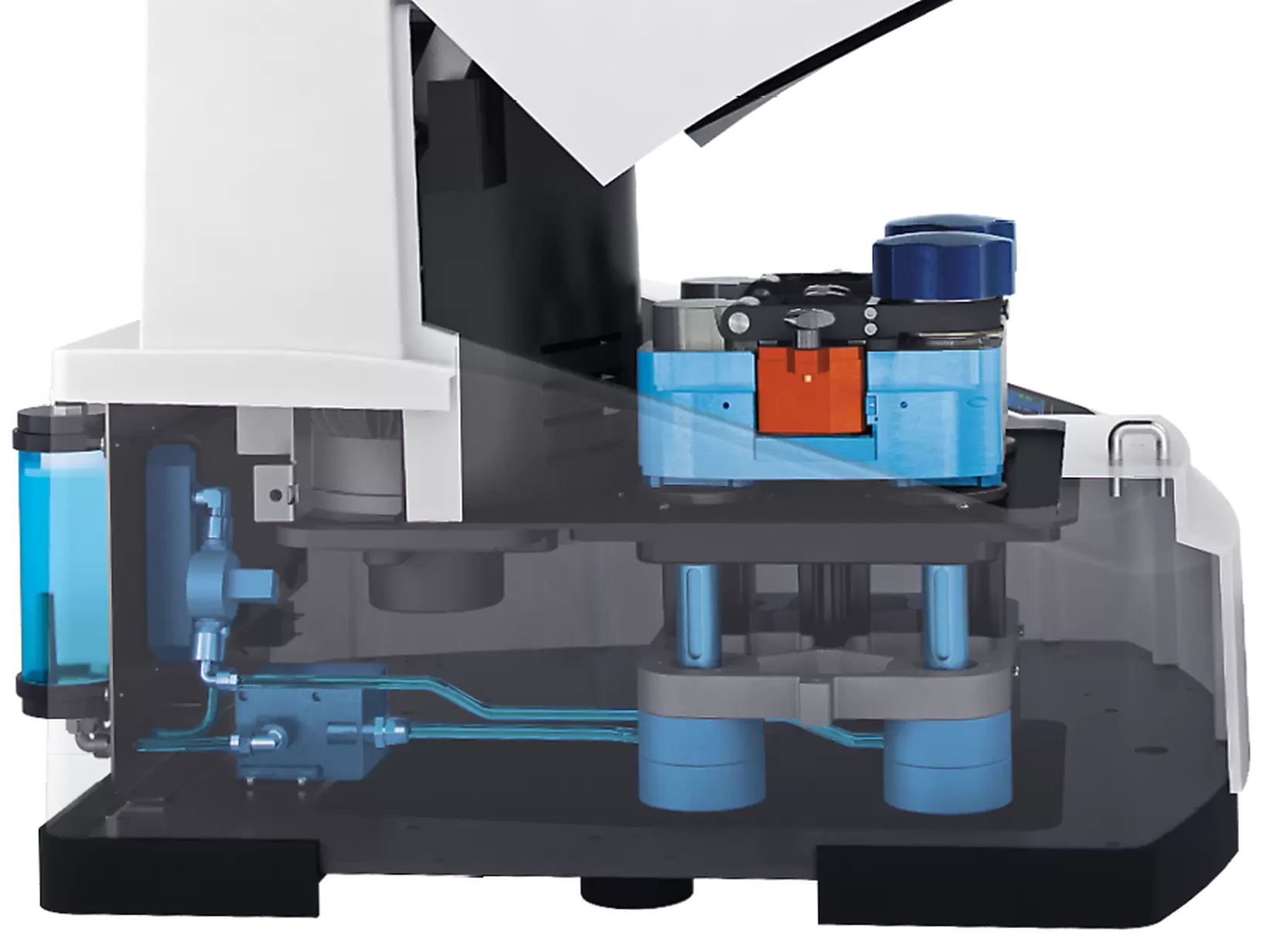

Cooling: controlled integrated water cooling / option: external chiller
Temperature control: yes (min and max temperature may be defined)
No. of grinding stations: 2

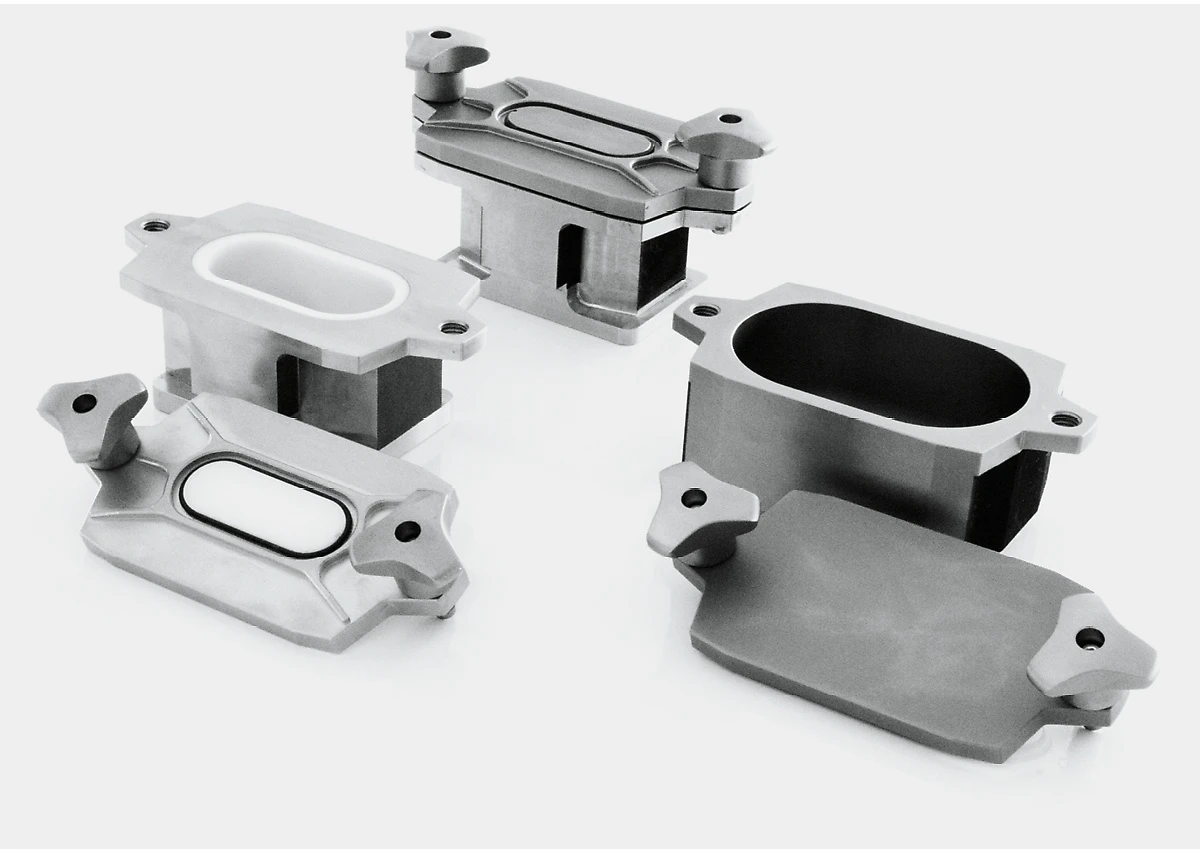

Type of grinding jars: with integrated safety closure devices

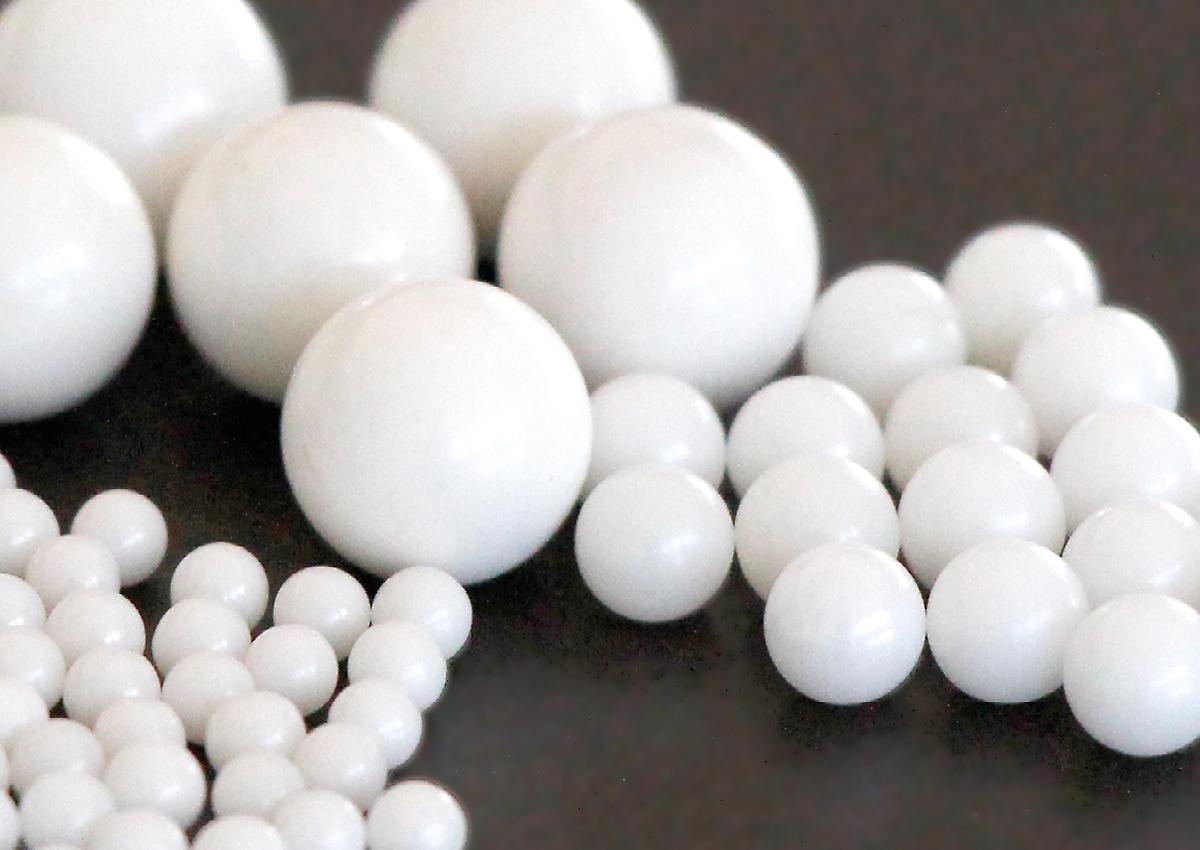

Material of grinding tools: stainless steel, tungsten carbide, zirconium oxide
Grinding jar sizes: 50 ml / 125 ml
Setting of grinding time: 00:01:00 to 99:59:59
Interval operation: yes, with optional direction reversal
Interval time: 00:01:00 to 99:59:59
Pause time: 00:01:00 to 99:59:59
Storable SOPs: 10
Interface: USB / LAN ( RJ45)
Drive: 3-phase asynchronous motor with frequency converter
Drive power: 2600 W
Electrical supply data: different voltages
Power connection: 1-phase
Protection code: IP 30
Power consumption: ~ 3100W (VA)
W x H x D closed: 625 x 525 x 645 mm
Net weight: ~ 120 kg
Standards: CE
Patent / Utility patent: Inclined Grinding bowls (US 8,042,754 B2)
