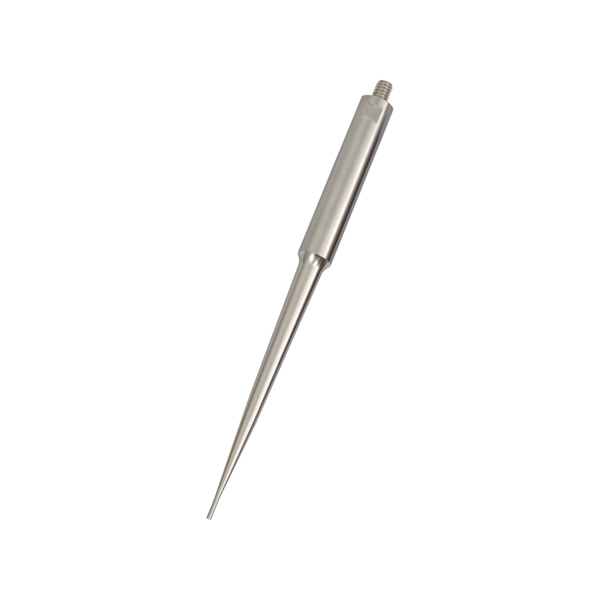

Microtip probes
Small-volume probes: 1/16 in for 0.2-5 mL; 1/8 in for 1-15 mL; 1/4 in for 5-50 mL. A stepped 1/8 in microtip with coupler supports 0.5-15 mL.
Touchscreen laboratory ultrasonic processor
Q700 Sonicator
A 700 W laboratory processor with full-range amplitude control, touchscreen programming and accessory options for small samples, multiple tubes and continuous flow.
PRODUCT OVERVIEW
Ultrasonic processing.
Matched to your sample.

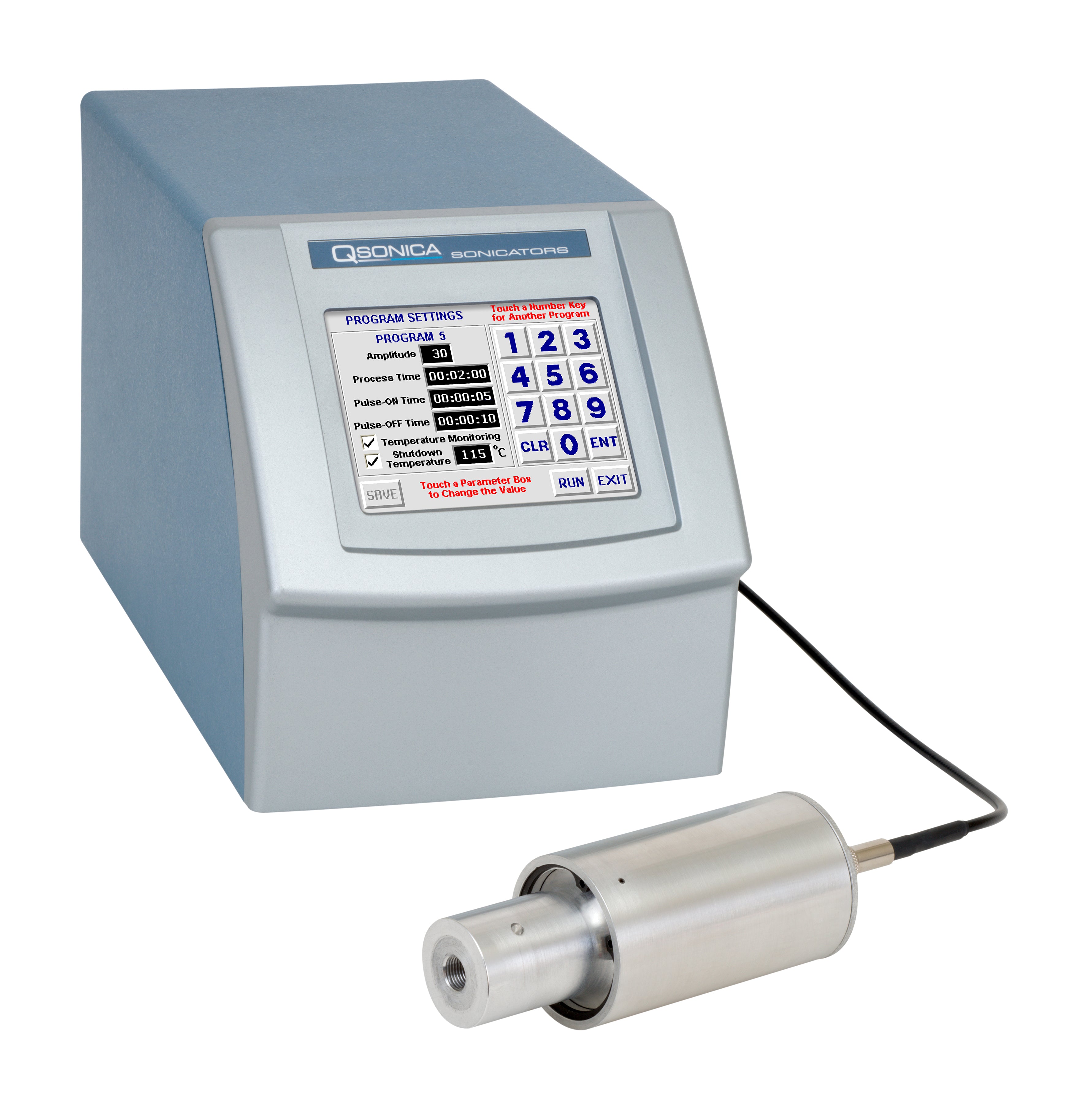

The Q700 combines a color touchscreen with digital control of processing intensity and timing. Its internal circuitry is designed for efficient operation and consistent performance between samples. Amplitude adjustment from 1% to 100% provides fine resolution for demanding applications.
The rated laboratory volume is up to 2 L for low-viscosity liquids. The available power also accommodates somewhat more viscous materials, although achievable volume depends on sample properties and the selected horn. The standard direct-processing arrangement uses a 1/2 in probe with a replaceable tip.
Stored programs retain amplitude, pulse and timing parameters. Up to five programs can run in sequence, supporting processes with different intensity stages and rest periods. An optional temperature probe adds sample temperature monitoring and automatic shutdown at the selected limit.
CAPABILITIES
Features
- Color LCD touchscreen with operating parameter display
- Amplitude adjustable from 1% to 100%
- Memory for 10 programs; sequences of up to 5 programs
- Processing timer up to 72 hours
- Pulse intervals from 1 second to 24 hours
- Optional sample temperature monitoring with limit shutdown
- Automatic frequency tracking as load and temperature change
- Live power and energy display; overload shutdown
- Lead-free, RoHS-compliant construction
APPLICATION FIT
Where it works
- Nanoparticle dispersion
- Emulsification and homogenization
- Cell disruption
- Low-volume and multi-sample processing
- Continuous-flow processing with a compatible flow cell
Processing capacity depends on sample properties, tube or vessel geometry and the selected probe or rack.
TECHNICAL DETAILS
Specifications
- Rated power
- 700 W
- Frequency
- 20 kHz
- Volume
- Up to 2 L, low-viscosity liquids
- Amplitude range
- 1-100%
- Program memory
- 10 programs
- Sequential programs
- Up to 5
- Timer
- Up to 72 hours
- Pulse on/off interval
- 1 second to 24 hours
- Generator (W × L × H)
- 8 × 15.25 × 8.5 in
- Electrical supply
- 110 V, 50/60 Hz; 220 V configuration also available
- Standard probe
- 1/2 in diameter with replaceable tip
- System components
- Generator, converter, power and converter cables, wrench set, standard probe
System views
PARTS & ACCESSORIES
Available components

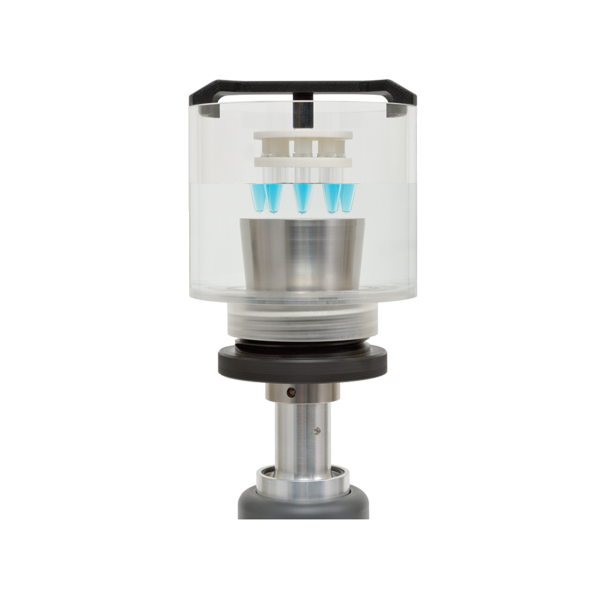

Cup horn
Indirect sonication of sealed tubes in a high-intensity water bath. Acrylic cup inner diameter 5.5 in; horn diameter 2.5 in. Two racks accommodate polystyrene and standard polypropylene tubes. Cooling connections support temperature control.

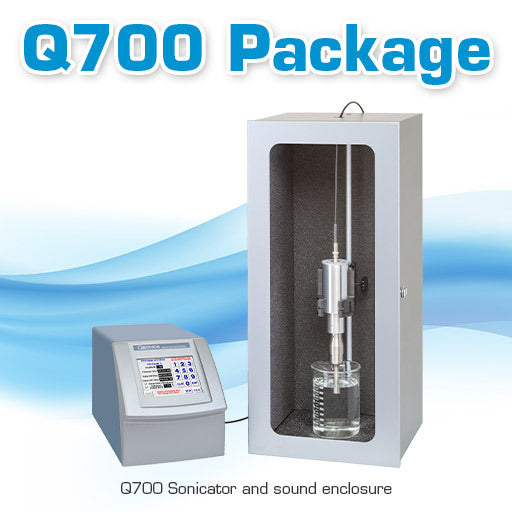

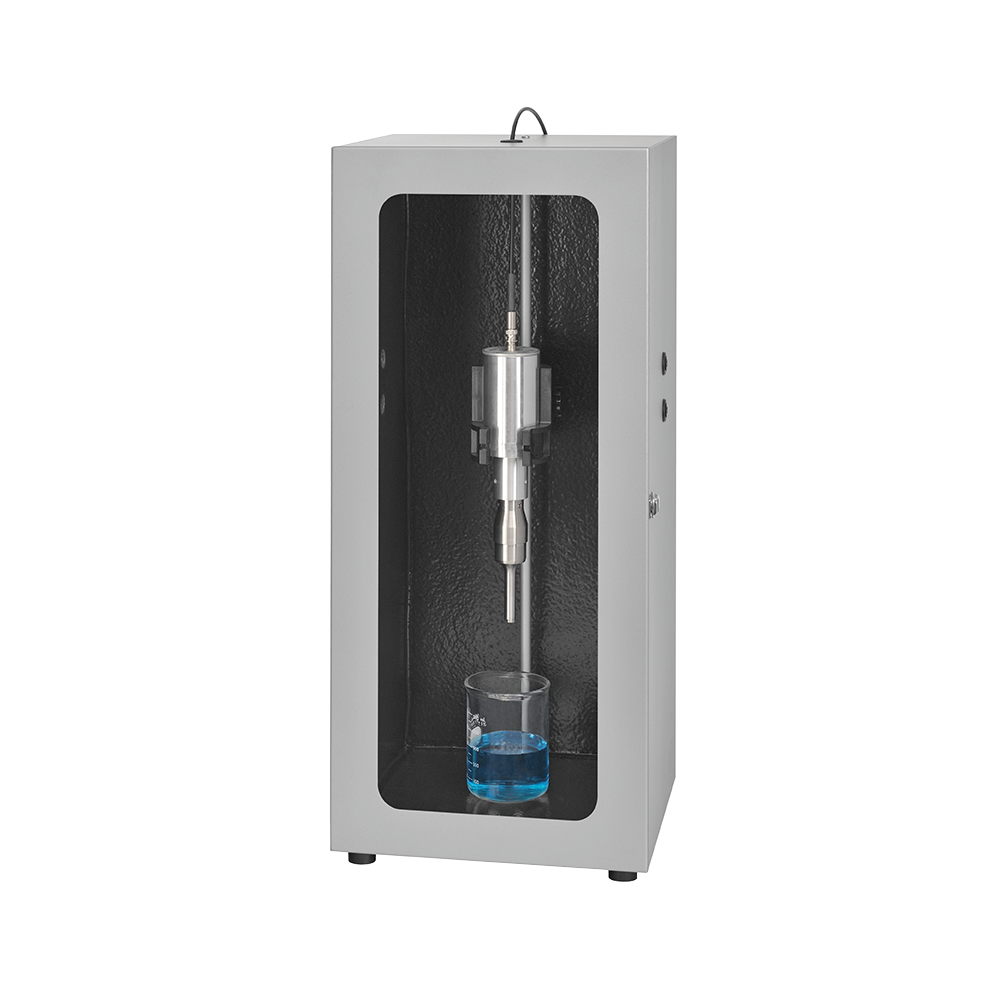

Sound enclosure
Acoustic enclosure with approximately 20 dBA noise reduction, internal converter support, viewing window and coolant or temperature-probe ports. Exterior: 13.5 W × 13 D × 30.5 H in. Excludes the separately enclosed microplate horn configuration.

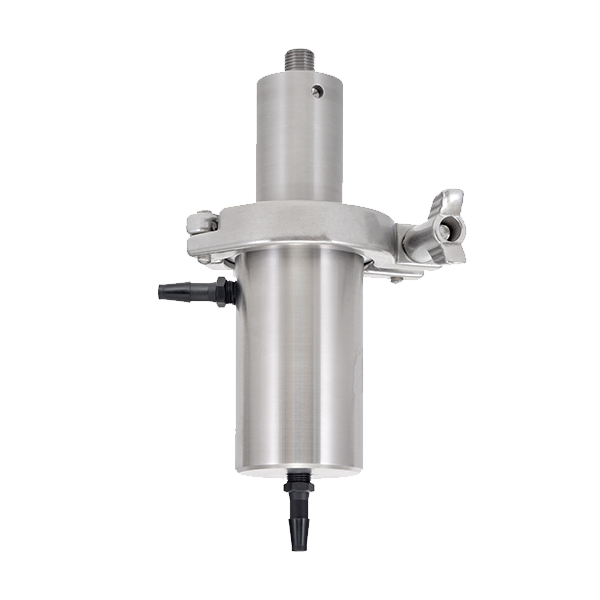

Low-volume continuous flow cell
316L stainless steel flow cell for mixing, dispersion and recirculation of batches above 1 L. Internal volume 65 mL; maximum flow 0.5 L/min; 1/4 in hose barbs. Compatible flanged 1/2 in solid or replaceable-tip probes and an external water jacket are available separately.

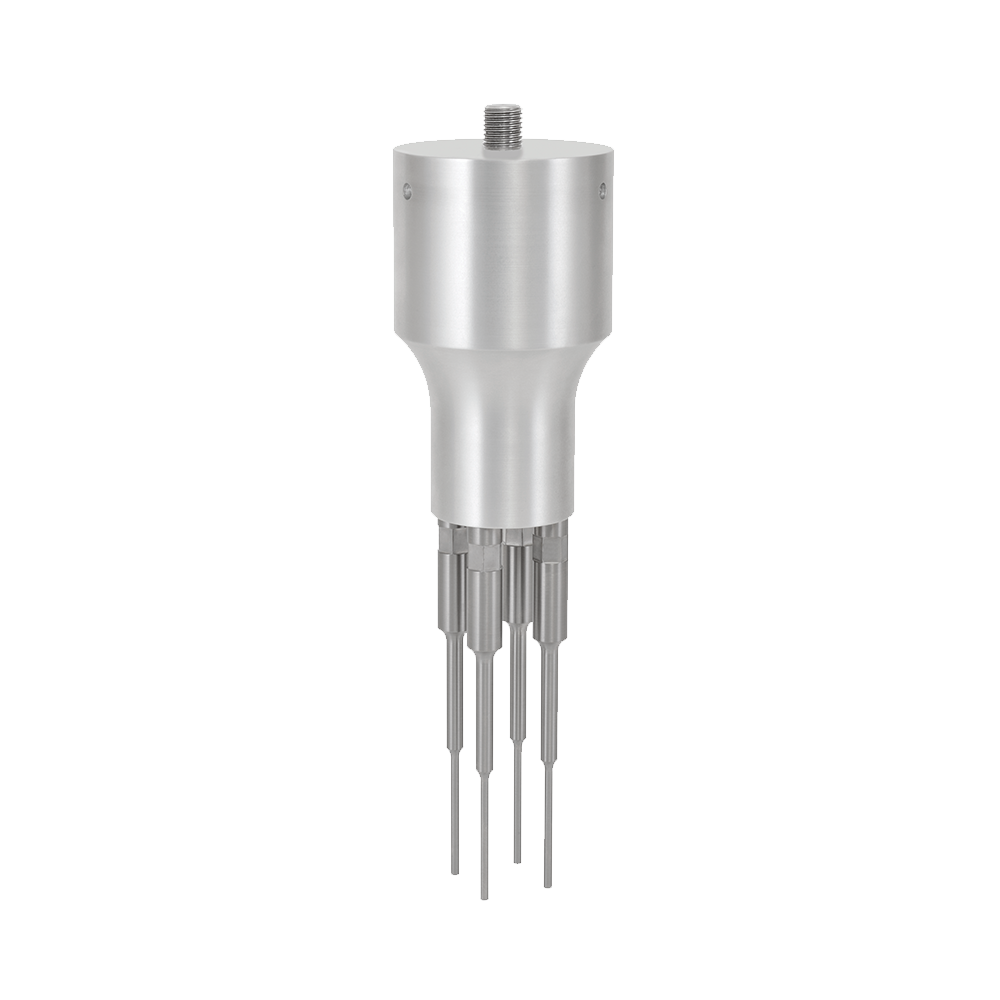

Four-tip horn
Parallel direct sonication of four samples. The 1/8 in version covers 1-15 mL per sample with 1.05 in tip spacing; the 1/4 in version covers 10-50 mL with 1.6 in spacing. Replacement tips are available.
