TEST SIEVES

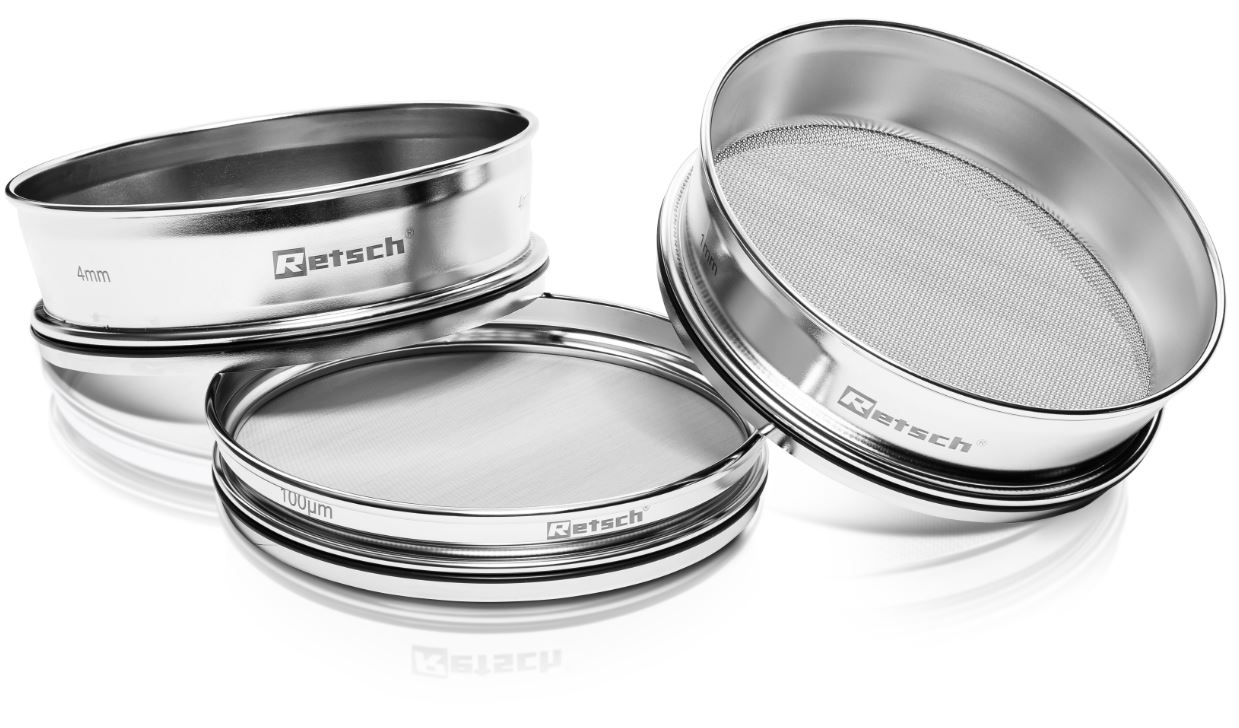

Woven Wire Mesh Sieves.
ø 200 mm / 203 mm.

The well-proven woven wire mesh sieves consist of a solid stainless steel sieve frame of high stability for reliable sieving results. Paying close attention to mesh-specific requirements, the sieve fabric is precisely joined into the frame and tautened. The individual laser engraving of each test sieve provides a clear and accurate labeling with full traceability. The mesh sieves can be easily combined with all other sieve brands.

Stainless steel analytical test sieves
Frame diameterø 200 mm / 203 mm (8 inch)

THE PRODUCT IN FOCUS

Model overview

The well-proven woven wire mesh sieves consist of a solid stainless steel sieve frame of high stability for reliable sieving results. Paying close attention to mesh-specific requirements, the sieve fabric is precisely joined into the frame and tautened. The individual laser engraving of each test sieve provides a clear and accurate labeling with full traceability.
The mesh sieves can be easily combined with all other sieve brands. Each sieve that leaves our company comes with a test report or, at your request, with a special inspection certificate in conformity with national and international standards. calibration certificates confirm a great number of precision measurements, thus ensuring an even higher statistical reliability for your quality control.
test sieves are available in many different diameters, mesh sizes and varieties, primarily in the four frame sizes most widely used in laboratory analytics:

  • 200 x 50 mm, 200 x 25 mm
  • 8“x 2“ (203 x 50 mm), 8“x 1“ (203 x 25 mm)

PERFORMANCE & OPERATION

Features. Operation. Handling.

PRODUCT ADVANTAGES

  • stainless steel sieve frame with high form stability
  • high degree of corrosion resistance and easy cleaning thanks to high-alloy stainless steel
  • sieve mesh sizes from 20 µm to 125 mm
  • permanently tight sieve fabric
  • excellent product quality due to extensive optical inspection
  • maximum stability and optimum sealing when used in sieve stacks thanks to the o-ring which is placed in the recess designed for this purpose
  • clear and precise labeling of the sieves with full traceability based on individualized laser engraving

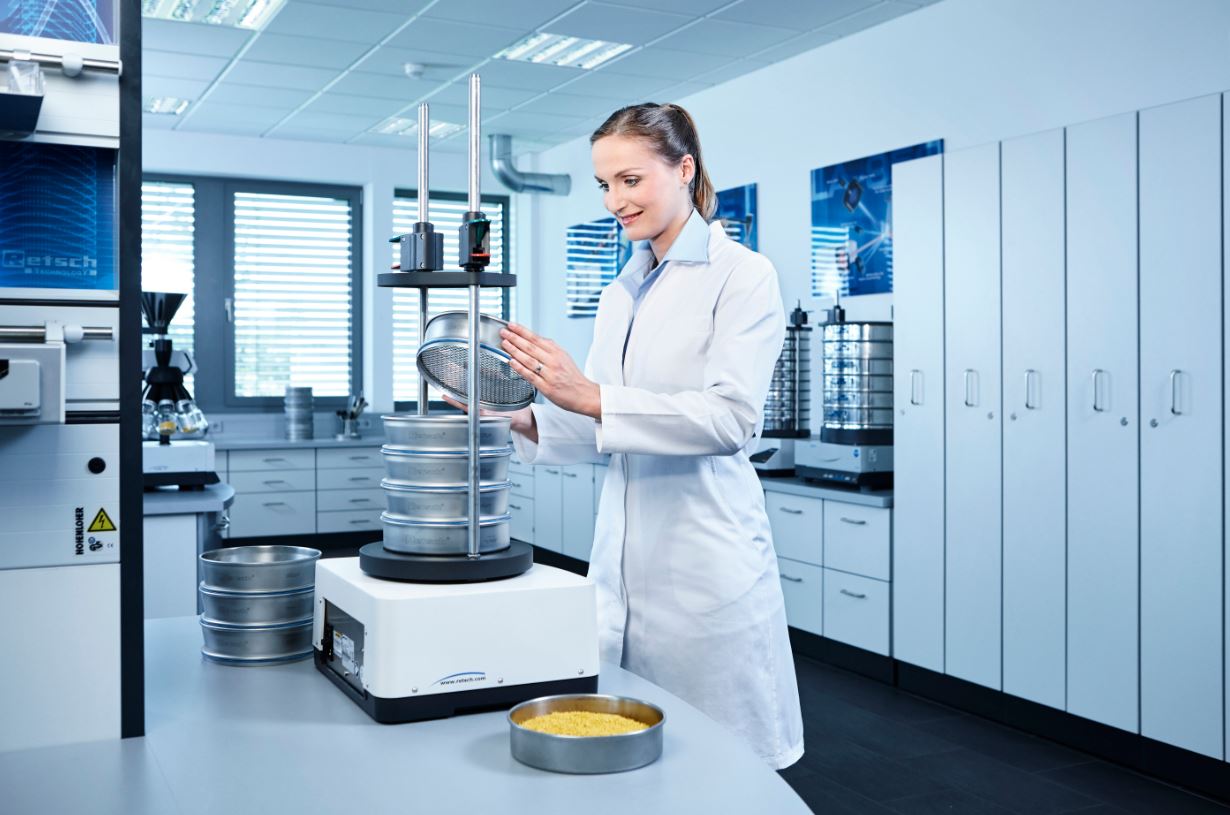

Scientist using a AS 200 Control sieve shaker in a laboratory
Scientist using a AS 200 Control sieve shaker in a laboratory

APPLICATIONS & METHODS

Build the process around the sample.

APPLICATION EXAMPLES

woven wire mesh sieves are ideally suited for separation, fractioning and particle size determination of cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, plastics, sand, seeds, soils and washing powder.

TECHNICAL INFORMATION

Specifications & reference data

TECHNICAL DATA

Applications separation, fractioning, particle size determination
Field of application agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals
Feed material powders, bulk materials, suspensions
Frame diameter ø 200 mm / 203 mm (8 inch)
Surface type wire gauze
Mesh sizes 125 mm – 20 µm
Standards ISO 3310-1 / ASTM E11
