DISC MILLS

RS 200.
Vibratory Disc Mill.

No grinder can beat the speed of a Vibratory Disc Mill when it comes to preparing samples for spectral analyses. Vibratory Disc Mill RS 200 is ideally suited for fast and reproducible pulverization of hard, brittle and fibrous sample materials to analytical fineness.

Discuss this product Technical information

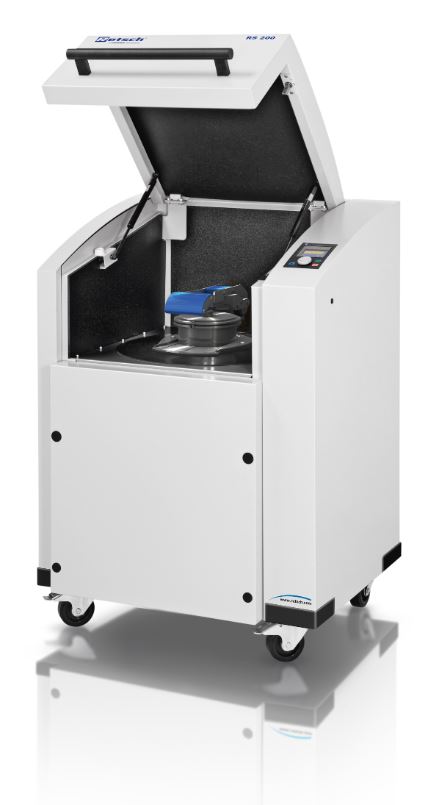

RS 200 vibratory disc mill open with grinding set

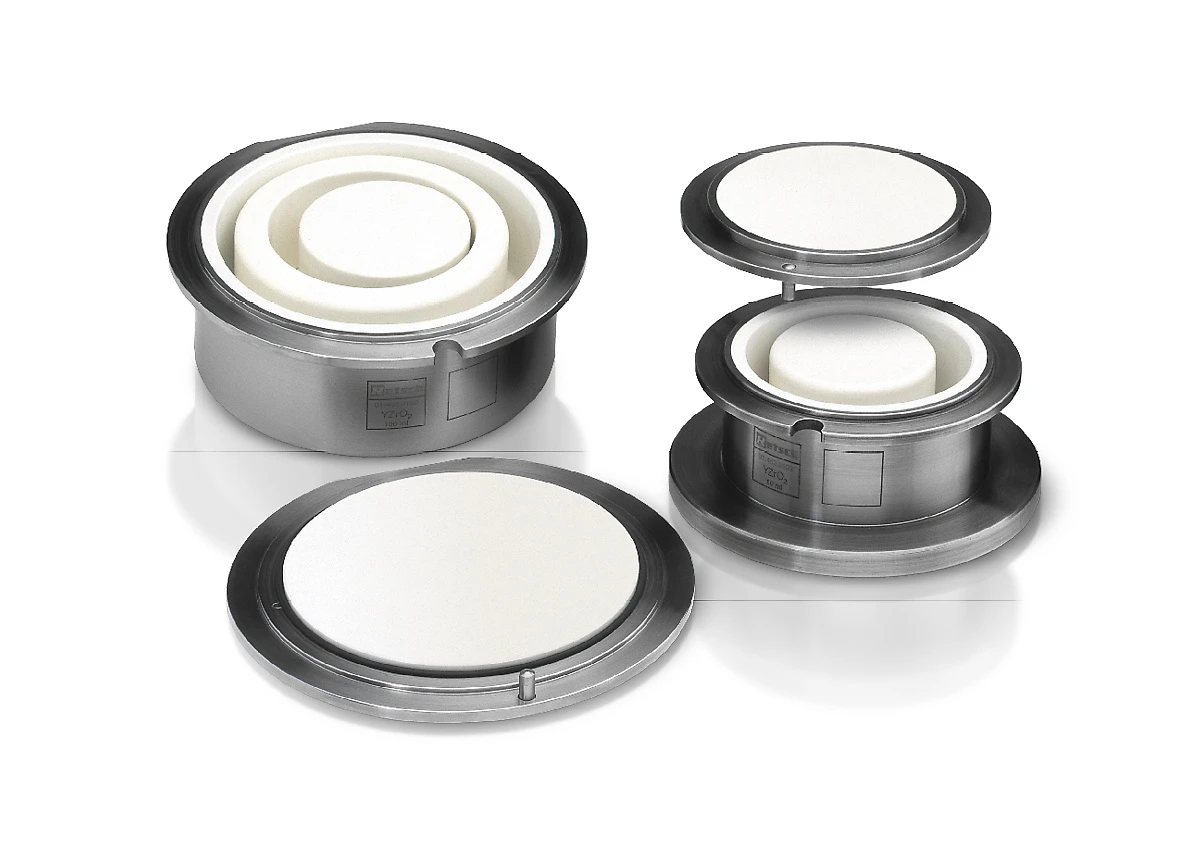

RS 200 grinding sets in different materials

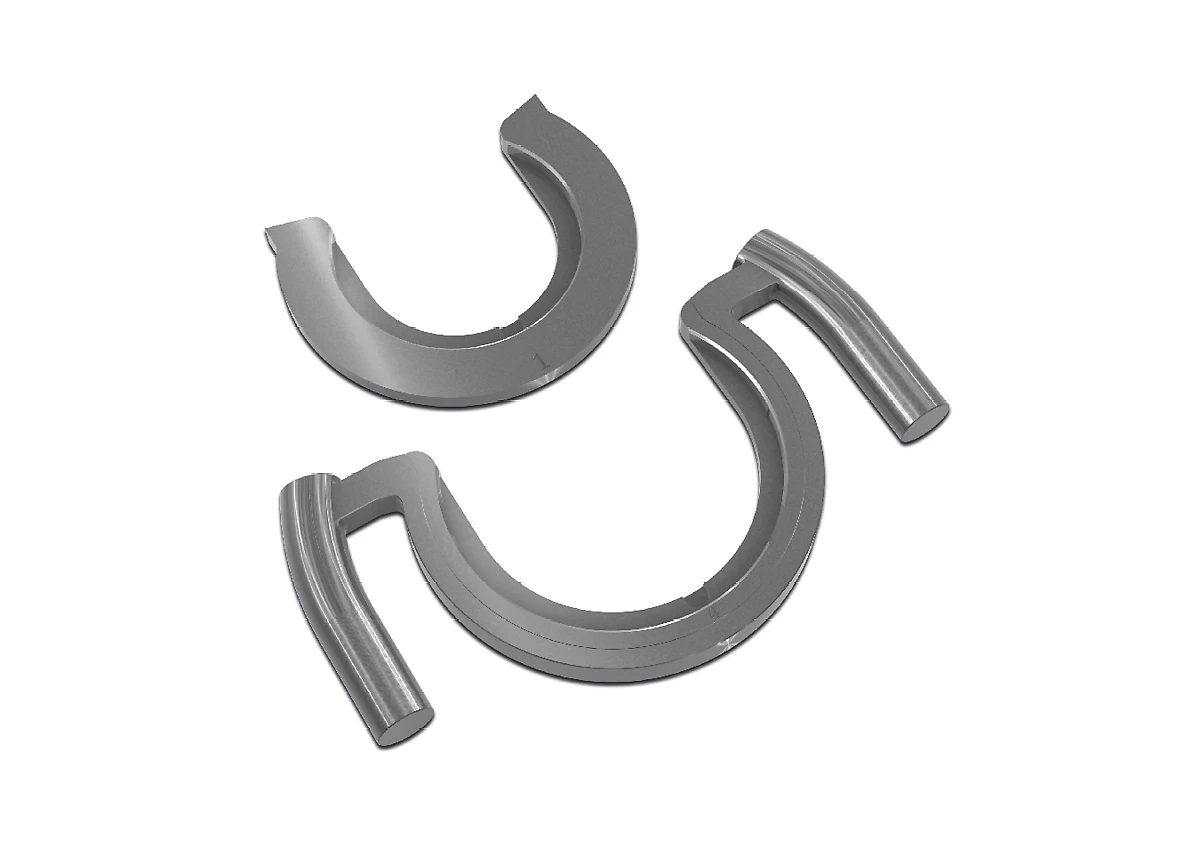

Seals for vibratory disc mill grinding sets

Product and configuration photographs. Select an image to enlarge.

Material feed size< 15 mm

Final fineness< 20 µm

Batch size / feed quantity15- 250 ml depending on size of grinding set

Speed at 50 Hz (60 Hz)700 – 1,500 min-1, continuously adjustable

THE PRODUCT IN FOCUS

Model overview

The RS 200 runs steadily and smoothly, even with heavy grinding sets and at maximum speed thanks to its powerful Stabilized-Plane-Drive. It achieves grind sizes between 20 and 100 microns within seconds and with excellent reproducibility.

Grinding sets are available in a variety of sizes and materials. A set of sensors will recognize jars of tungsten or agate and automatically sets the maximum permissible speed, ensuring optimum results while protecting the material.

PERFORMANCE & OPERATION

Features. Operation. Handling.

EXCEPTIONALLY SAFE AND SIMPLE HANDLING

Operation and handling of the RS 200 and its grinding sets is convenient and ergonomic. The grinding jars are equipped with carry handles which facilitate transport of the heavy jar to the mill where it is slid on a rail into its grinding station. The clamping device allows for safe fastening of the jar with less force; a sensor checks its correct position.

The grinding parameters are entered using a single button. The user can store up to 10 parameter combinations and choose between 13 languages for menu guidance. In addition to the current settings a colored graphics display shows service and operating information.

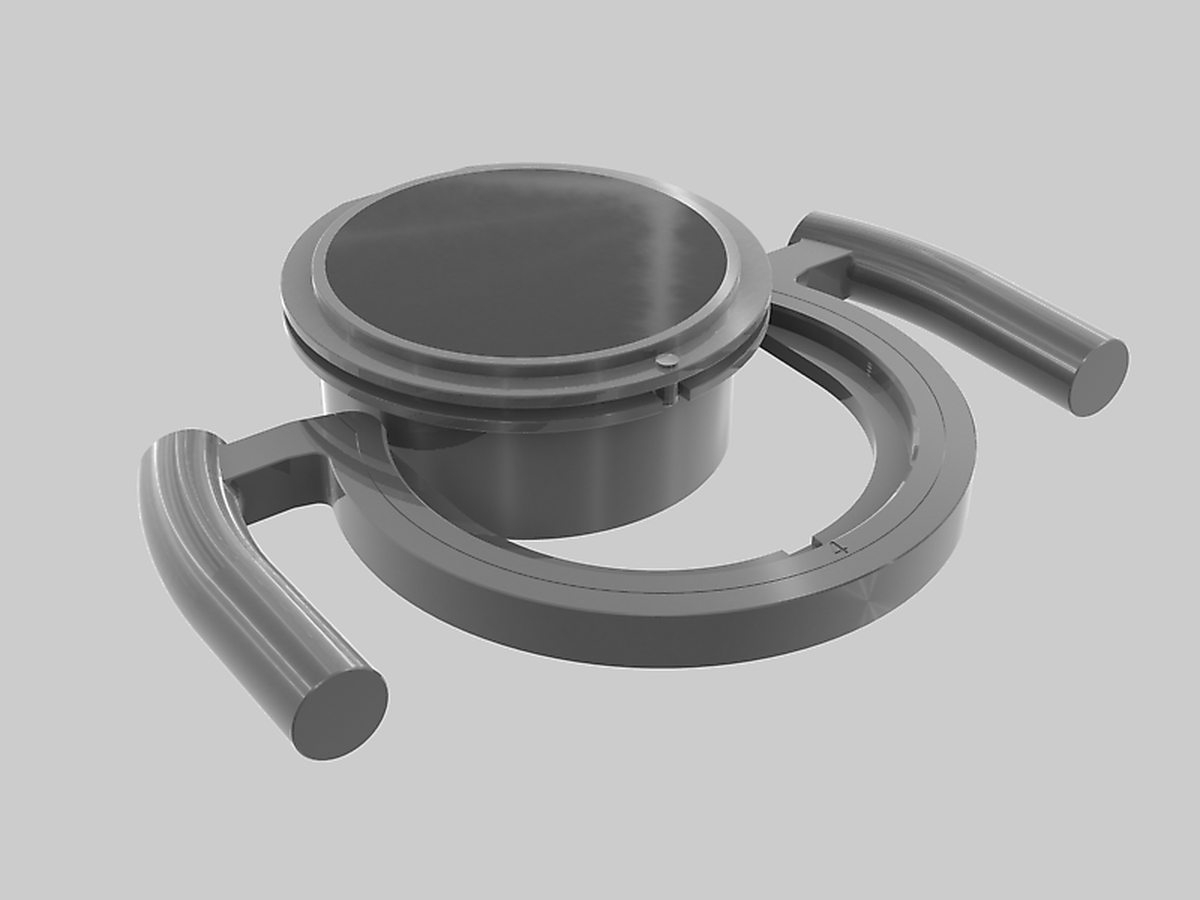

Carry Handles

Rail

Quick Action Clamping Device

Graphic Display

The grinding sets have been developed especially for extreme test conditions such as high sample throughput and high mechanical stress. Features include.

safe, non-slip attachment with integral safety devices on cover and base
gap between dish and cover edge for easy opening
optimum sealing with O-ring
protective jacket made from stainless steel (for agate, zirconium oxide and tungsten carbide dishes)
grinding set identification (article number, material and volume)
marking field (e. g. for information about sample)
available in 3 sizes and 5 materials

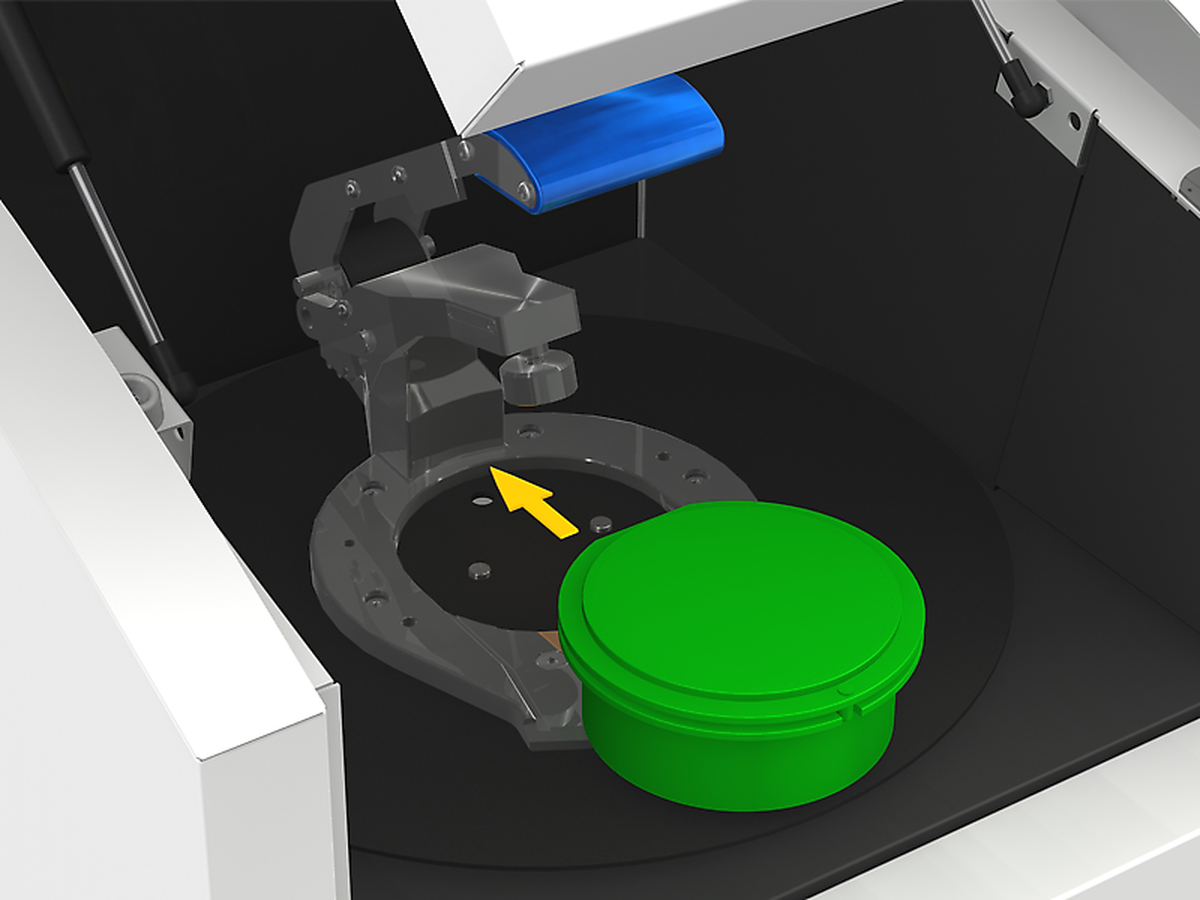

Placing a grinding set on the rail of the RS 200

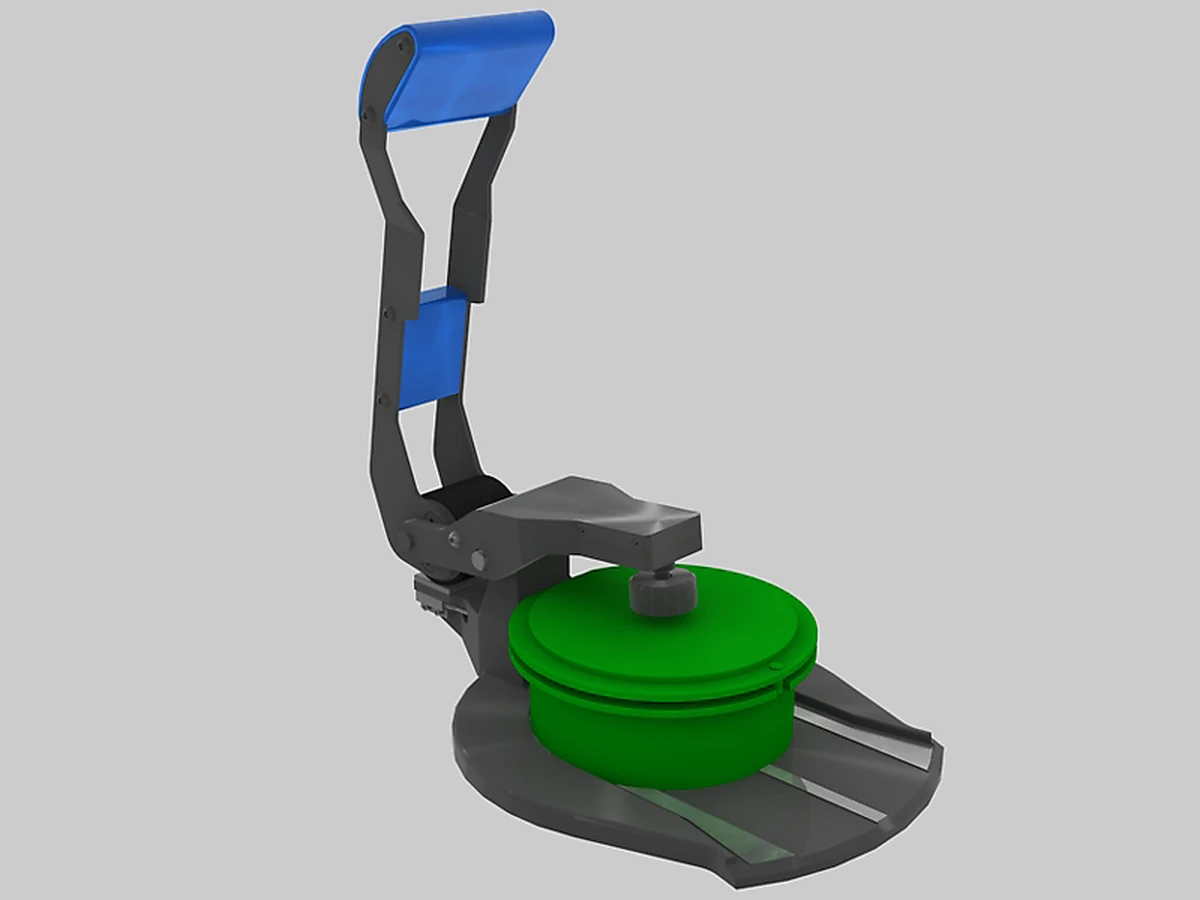

Clamping device for RS 200 grinding sets

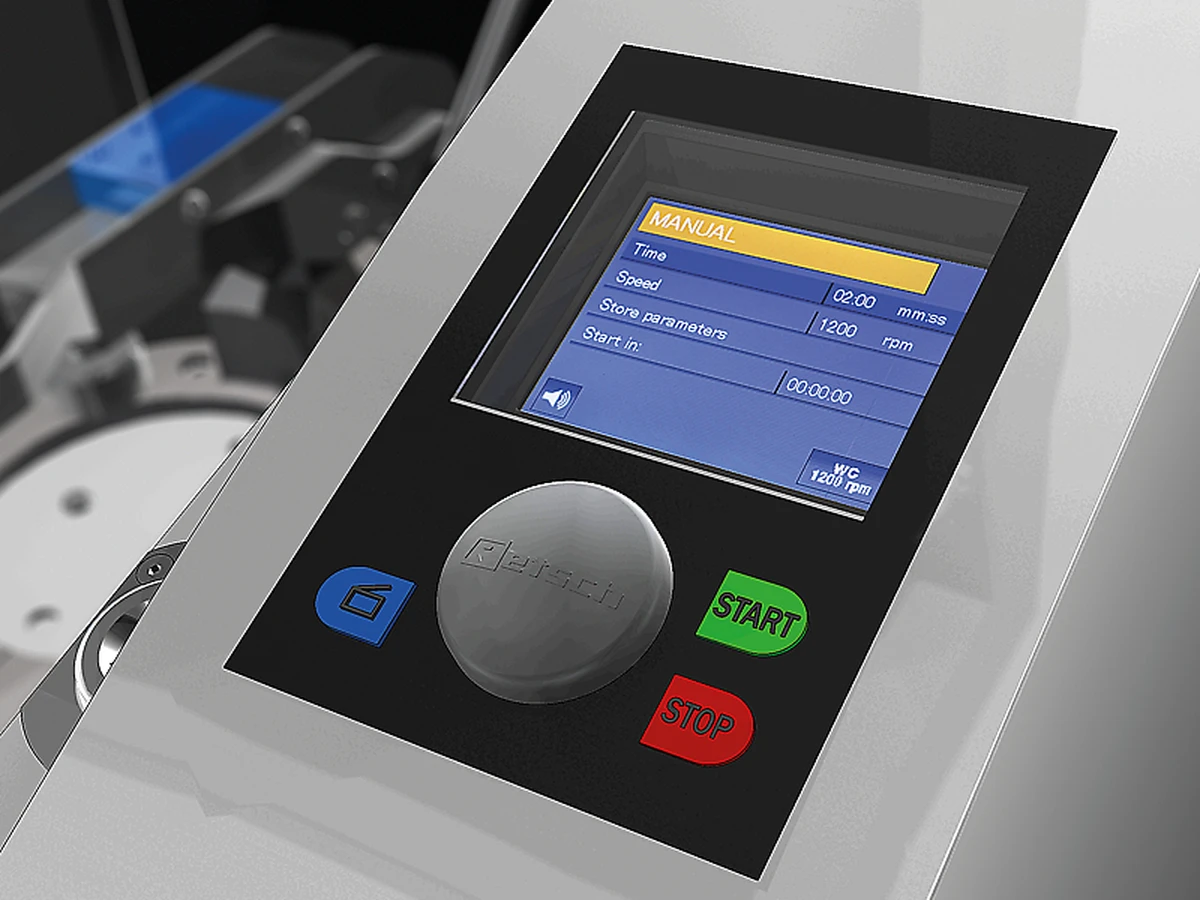

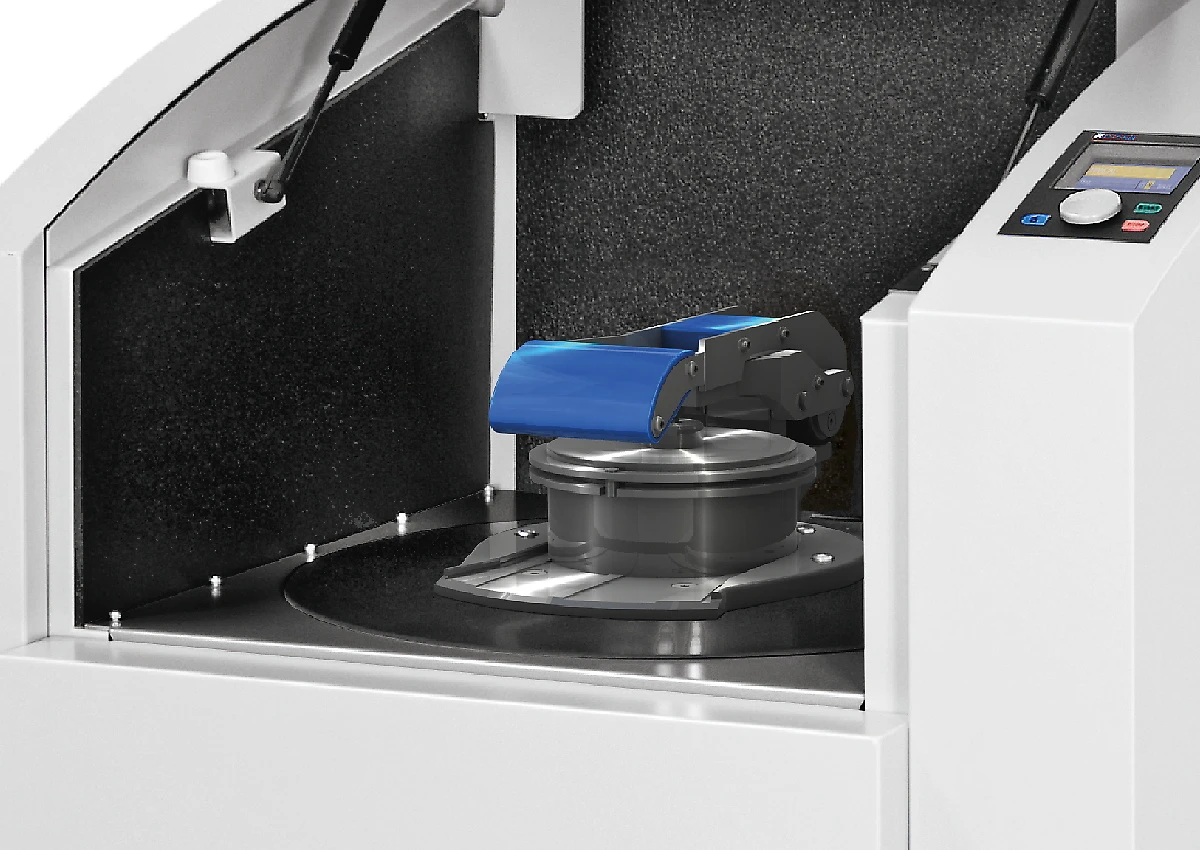

Graphic display of the RS 200 vibratory disc mill

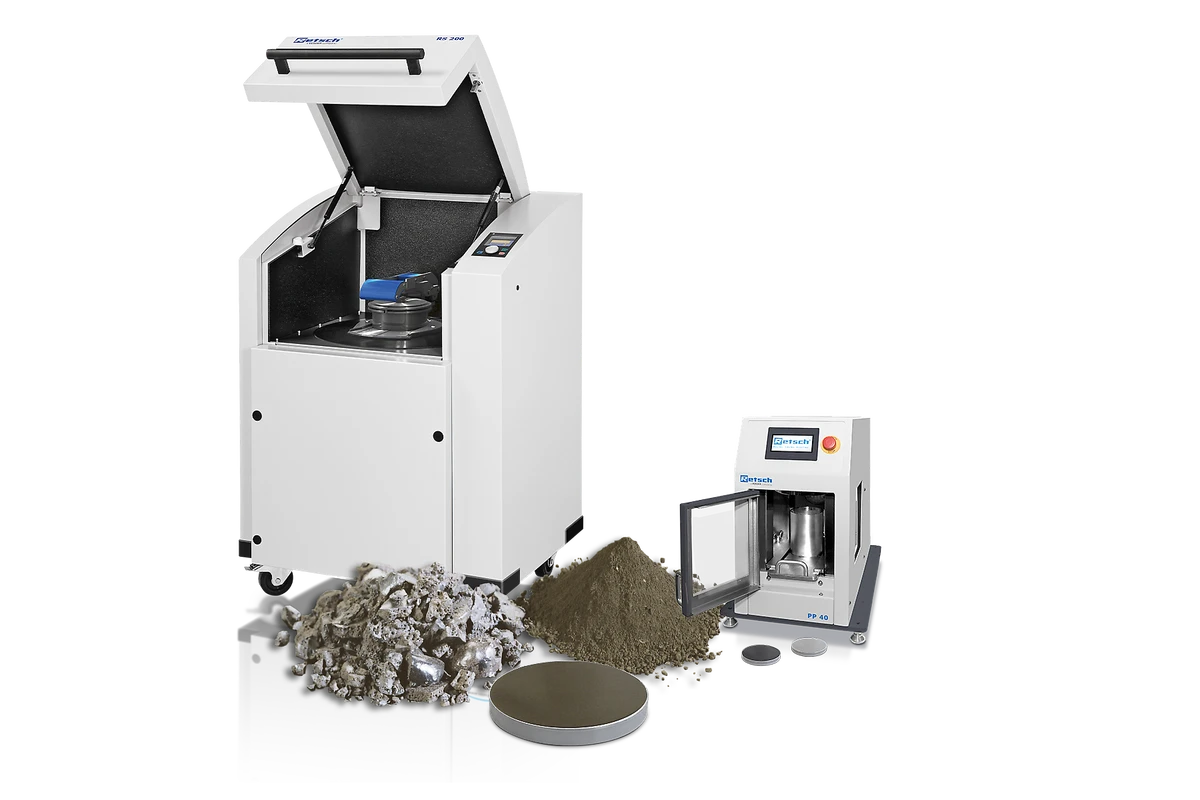

Powerful Twin Pack for XRF Analysis

To ensure accurate and reproducible XRF analysis results, the sample needs to have a uniform particle size distribution, and the pellet to be pressed needs to be as dense as possible. Both requirements are easily met when using our vibratory disc mills and pellet presses for sample preparation to XRF analysis.

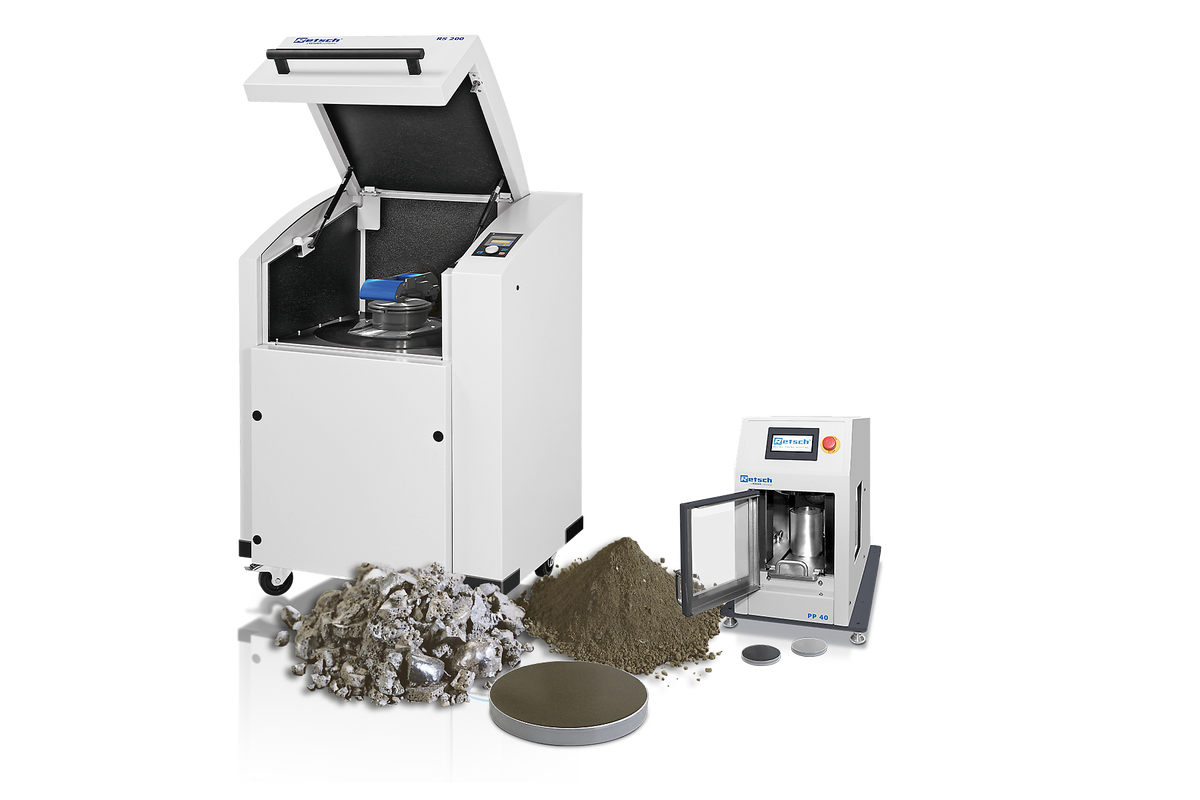

RS 200 vibratory disc mill with grinding sets

FUNCTIONAL PRINCIPLE

The Vibratory Disc Mill RS 200 comminutes by pressure and friction. The grinding set is firmly attached to the vibration plate with a quick-action lever. The plate with the grinding set is subjected to circular horizontal vibrations.

The centrifugal force acting on the grinding rings in the dish results in extreme pressure and frictional forces acting on the sample, producing analytical fineness in 1-3 minutes. The circular vibrations are produced by a frequency controlled 1.5 kW 3-phase motor. A sensor recognizes the presence of agate grinding sets and automatically limits the speed to 700 min-1 to avoid damaging the agate. The cover of the noiseinsulated grinding chamber has a safety interlock and can only be opened when the mill is at a standstill.

APPLICATIONS & METHODS

Build the process around the sample.

FAST AND REPRODUCIBLE

Very short grinding times, typically in the range of 60 to 180 seconds to achieve a fineness around 100 μm
Ergonomic design and carry handles ensure easy handling of the grinding set
Quick-action clamping system enables convenient and safe tightening of the grinding set
Automatic speed reduction for agate and tungsten carbide sets
Powerful Stabilized-Plane-Drive improves reproducibility
Variable speed from 700 to 1500 rpm

PERFORMANCE TEST: SIZE REDUCTION AND REPRODUCIBILITY

The grinding results of a vibratory disc mill are significantly influenced by the movement patterns of the free masses inside the grinding jar. The new, powerful Stabilized-Plane-Drive of the RS 200 allows for extremely rapid formation of the movement pattern which is reflected in higher fineness and ultimately leads to significantly better reproducibility.

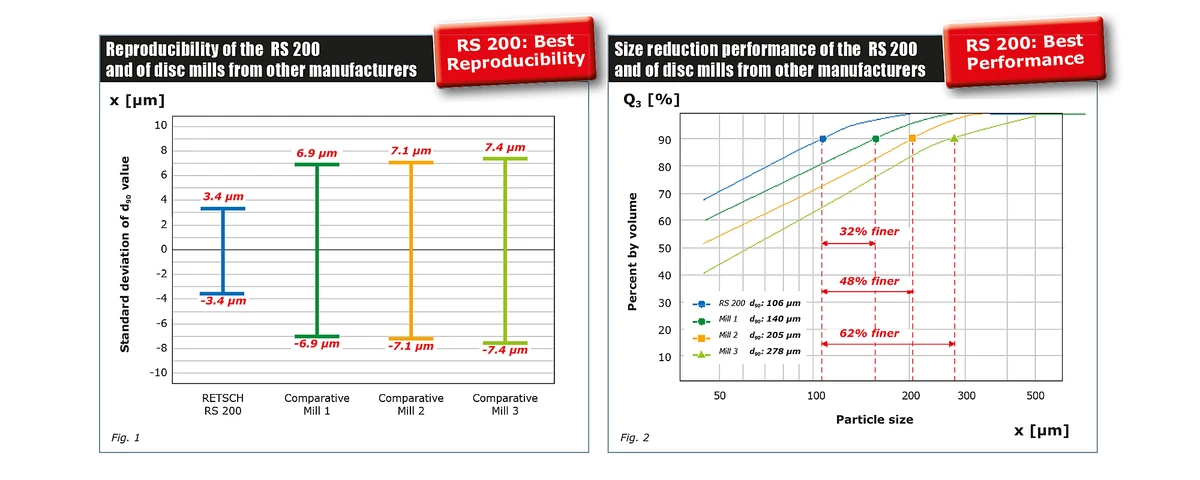

Figure 1 shows the standard deviation after 60 sec grinding time. It only takes a few large particles to impair the reproducibility of XRF measurements. Because of that, a small standard deviation for the d90 value is crucial.

Fig. 2: A “Quarter Minute Test” (QMT) evaluates the formation and stability of the movement patterns of Vibratory Disc Mills. Figure 2 shows that with the RS 200 a d90 value of 106 μm was obtained after a grinding time of only 15 seconds. The mills from three other manufacturers showed considerably inferior results.

Grinding parameters
Grinding jar: 100 ml
Sample: cement clinker 0.85 to 3.15 mm
Speed: Maximum (1200 rpm)
Grinding time: 60 sec (Figure 1), 15 sec (Figure 2)

RS 200 Vibratory Disc Mill illustration 1

TYPICAL SAMPLE MATERIALS

Vibratory Disc Mills rapidly pulverize materials such as cement, cement clinker, ceramics, coal, coke, concrete, corundum, glass, metal oxides, minerals, ores, silicate, slag, soil, etc.

Slag

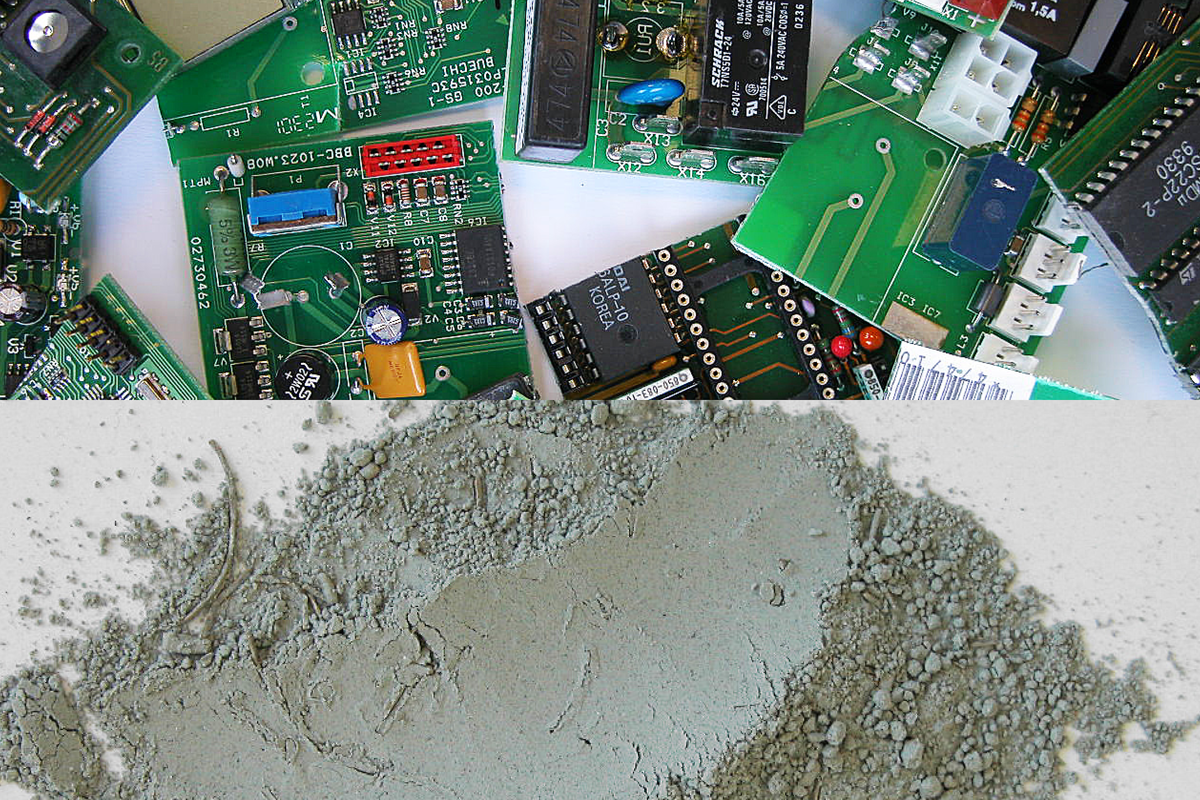

Electronic Scrap

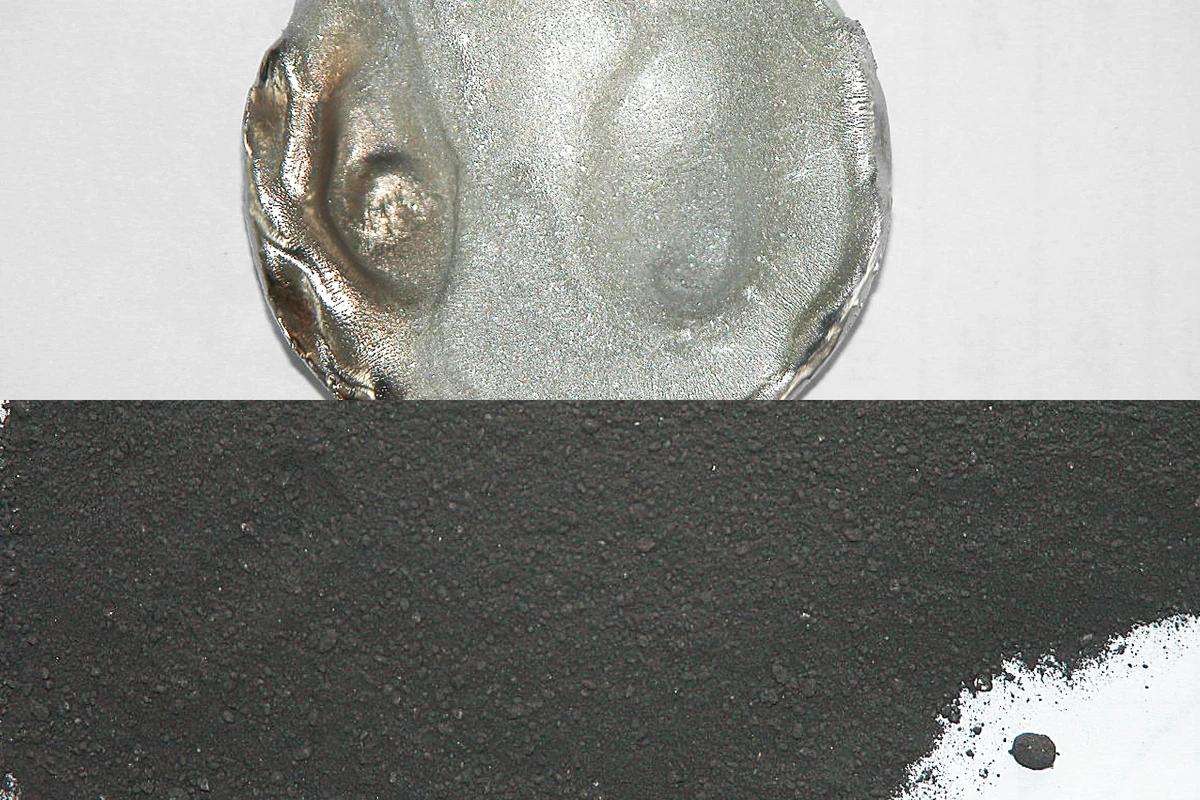

Iridium

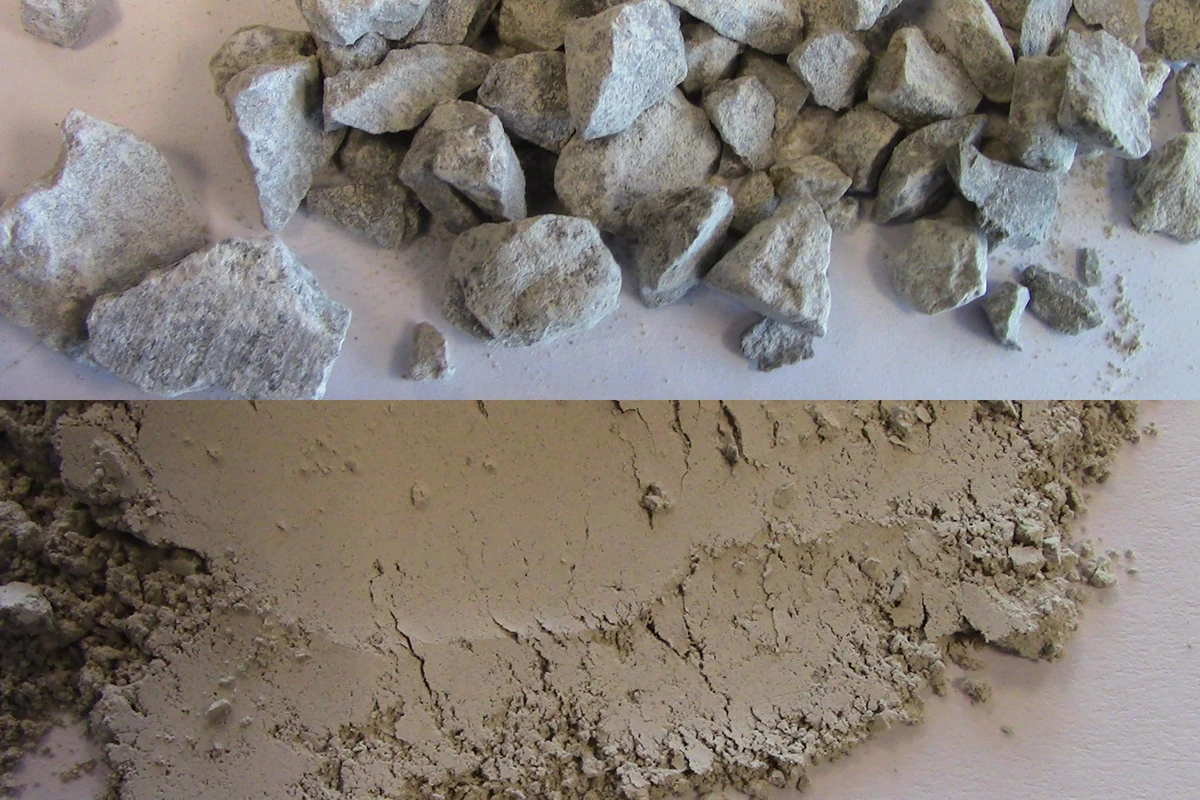

Dolomite

RS 200 Vibratory Disc Mill illustration 2

RS 200 Vibratory Disc Mill illustration 3

RS 200 Vibratory Disc Mill illustration 4

TECHNICAL INFORMATION

Specifications & reference data

TECHNICAL DATA

Applications	size reduction, mixing, triturating
Field of application	construction materials, environment / recycling, geology / metallurgy, glass / ceramics
Feed material	medium-hard, hard, brittle, fibrous
Size reduction principle	pressure, friction
Material feed size*	< 15 mm
Final fineness*	< 20 µm
Batch size / feed quantity*	15- 250 ml depending on size of grinding set
Speed at 50 Hz (60 Hz)	700 – 1,500 min-1, continuously adjustable
Material of grinding tools	hardened steel, tungsten carbide, agate, zirconium oxide, steel 1.1740 (for heavy-metal free grinding)
Grinding jar sizes	50 ml / 100 ml / 250 ml
Setting of grinding time	digital, 00:01 to 99:59
Storable SOPs	10
Drive	3-phase asynchronous motor with frequency converter
Drive power	1.5 kW
Electrical supply data	different voltages
Power connection	1-phase
Protection code	IP 20
W x H x D closed	836 x 1220 x 780 mm
Net weight	~ 225 kg (without grinding set)
Standards	CE

*depending on feed material and instrument configuration/settings
