CUTTING MILLS

SM 100.
Cutting Mill.

Straightforward fixed-speed cutting for routine laboratory preparation, with a 1.5 kW drive and interchangeable tools.

Discuss this product Technical information

SM 100 Cutting Mill configuration photograph

Product and configuration photographs. Select an image to enlarge.

Drive1.5 kW

Rotor speed1,500 rpm

Feed sizeBelow 60 × 80 mm

Fineness reference0.25–20 mm

THE PRODUCT IN FOCUS

Model overview

A fixed-speed mill for routine cutting tasks

The SM 100 is a straightforward entry point for routine preparation of soft, medium-hard, elastic and fibrous samples. Its 1.5 kW drive and fixed 1,500 rpm speed suit tasks that do not require especially high cutting forces. Install it on a suitable laboratory bench or choose the optional base frame.

Feed must be below 60 × 80 mm. Choose a rotor, hopper and bottom sieve around the sample’s shape, cutting behavior and analytical requirements. The published fineness range is 0.25–20 mm; actual results depend on the material and method.

PERFORMANCE & OPERATION

Features. Operation. Handling.

Cut. Screen. Collect.

Rotating blades shear the feed against stationary cutting bars. The parallel-section rotor applies a strong cutting action, while the six-disc rotor uses spirally arranged reversible hard-metal plates to cut in sequence. Material leaves the chamber through the bottom sieve once it can pass the openings, limiting residence time.

Gravity discharge carries the prepared material into the selected receiver. Match the receiver to the amount processed and plan cleanout between samples.

Access for cleaning and safe operation

Smooth internal surfaces, removable sieves and a push-fit rotor simplify cleaning and sample recovery. The uncomplicated chamber layout supports regular laboratory changeovers. Confirm the installation and operating procedure for the selected bench or base-frame arrangement.

APPLICATIONS & METHODS

Build the process around the sample.

Biological, agricultural and food samples

Explore preparation of plant material, straw, wood, animal feed, feed pellets, food, spices, nuts and suitable bone or fish samples. Check moisture, toughness and temperature sensitivity when setting up the method.

Polymers, textiles and recycling

Typical cutting-mill samples include PET preforms, plastics and polymers, plastic toys, foils, rubber, resins, leather, paper, cardboard, textiles, cables, electronic components, refuse-derived fuel and other heterogeneous waste. Pharmaceutical products and material mixtures are additional areas to review.

Some applications include lignite, aluminum slag or nonferrous metal-containing samples. These require a material-specific review; they do not establish suitability for arbitrary hard metal or mineral pieces.

TOOLS & CONFIGURATION

The right tools for the task.

Rotor and cutting-tool materials

Choose a parallel-section or six-disc rotor. Stainless steel and steel configurations for heavy-metal-free preparation are available; tungsten carbide is also listed among cutting-tool materials. Match cutting bars, plates and the complete contact-material arrangement to contamination limits.

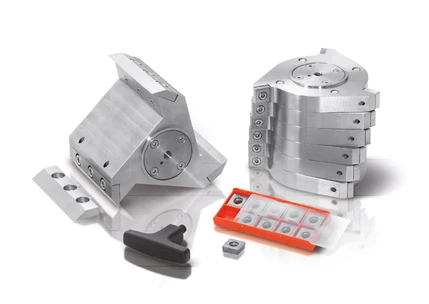

Rotor selection for cutting and shearing

Feeding and screening

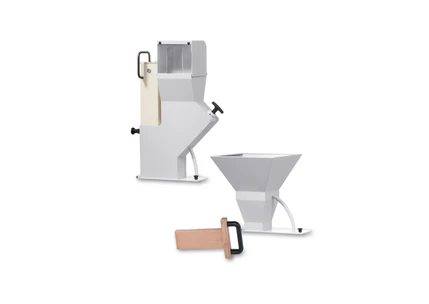

The universal hopper suits many routine samples; the long-stock hopper handles elongated feed. Stainless or heavy-metal-free steel bottom sieves are offered with trapezoid openings of 0.25, 0.50, 0.75, 1.00 and 1.50 mm, and square openings of 2, 4, 6, 8, 10 and 20 mm.

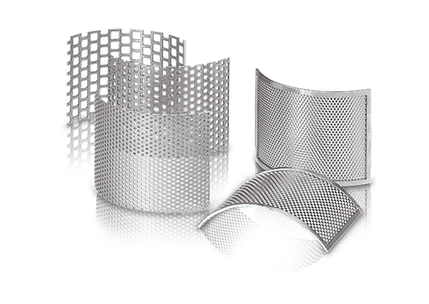

Bottom sieves with different aperture sizes

Collection and installation

Collection choices include a 5 L receptacle, optional 30 L receiver and 0.25 or 0.5 L collecting units. Receiver volume is not a working batch or throughput rating. A base frame is optional for installations that do not use a suitable laboratory bench.

TECHNICAL INFORMATION

Specifications & reference data

Model specifications

Applications	size reduction by cutting
Field of application	agriculture, biology, chemistry / plastics, engineering / electronics, environment / recycling, food, medicine / pharmaceuticals
Feed material	soft, medium-hard, elastic, fibrous
Size reduction principle	shearing, cutting
Max. feed size	< 60 x 80 mm
Final fineness	0.25 - 20 mm
Speed at 50 Hz (60 Hz)	1,500 min-1
Rotor peripheral speed	9.4 - 11.4 m/s
Rotor diameter	129.5 mm
Types of rotors	parallel section rotor / 6-disc rotor
Types of hoppers	standard, long stock
Material of grinding tools	stainless steel, steel for heavy-metal free grinding, tungsten carbide
Sieve sizes	trapezoid holes 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm square holes 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm
Collector systems /capacities	collecting receptacle 5 l / optional: 30 l collecting unit 0.25 / 0.5 l
Drive	3-phase motor
Drive power	1,5 kW
Electrical supply data	different voltages
Power connection	3-phase
Protection code	IP 54
W x H x D closed	582 x 1675 x 700 mm (with base frame and standard hopper)
Net weight	~ 73 kg without hopper, rotor and base frame
Standards	CE

Published values describe the specified configurations. Bottom-sieve aperture does not guarantee a particle-size distribution. Confirm electrical supply, tool materials, receiver, clearances and sample performance for the installation.
