Six grinding positions
Prepare up to six jar samples at once, each with a useful sample quantity of up to 20 ml, depending on the material.
MORE SAMPLES IN EACH RUN

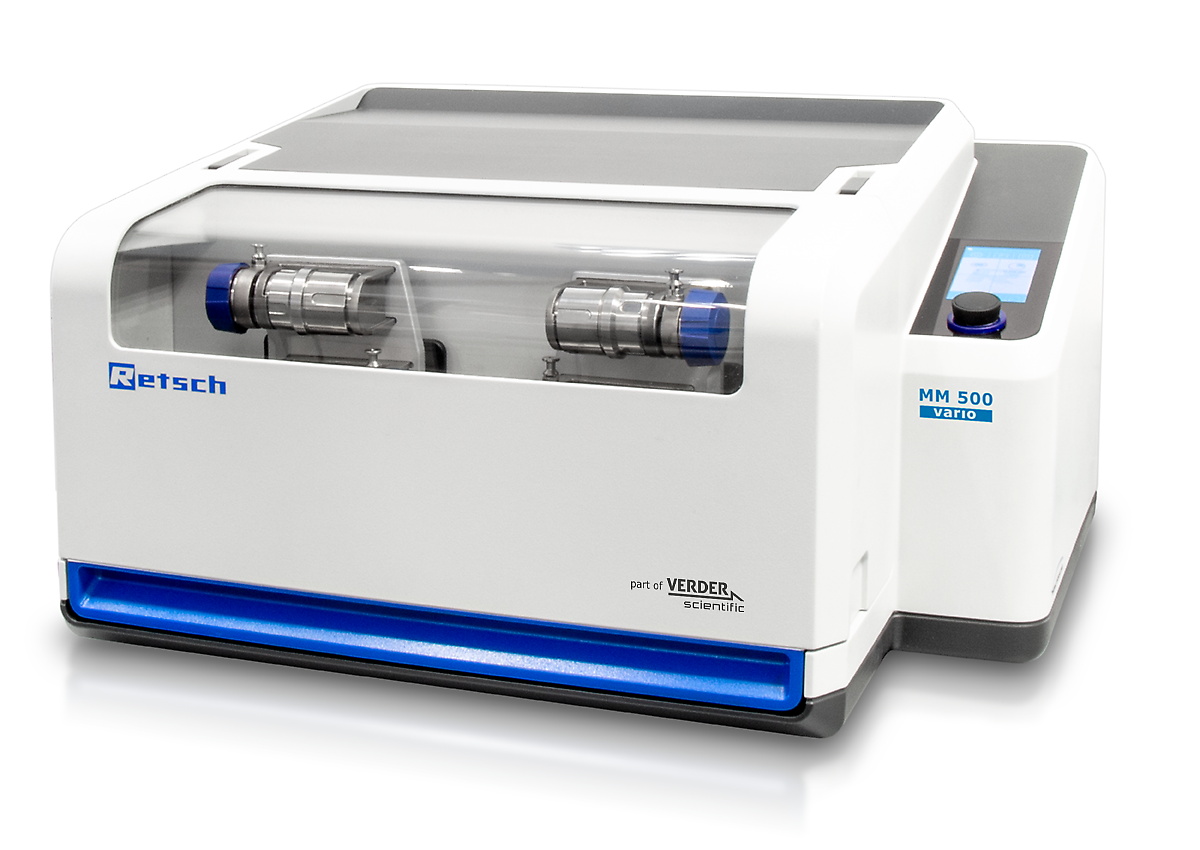

MM 500 vario.
Six stations. More possibilities.
Process parallel samples with six grinding stations and a frequency of up to 35 Hz. The MM 500 vario brings higher sample throughput to dry, wet and manually precooled cryogenic preparation.
Configuration examples. Accessories may be optional.
FEED SIZE*≤ 8 mm
FINAL FINENESS*~ 5 µm
FREQUENCY3–35 Hz
SAMPLE QUANTITY*6 × 20 ml
THE MODEL IN FOCUS

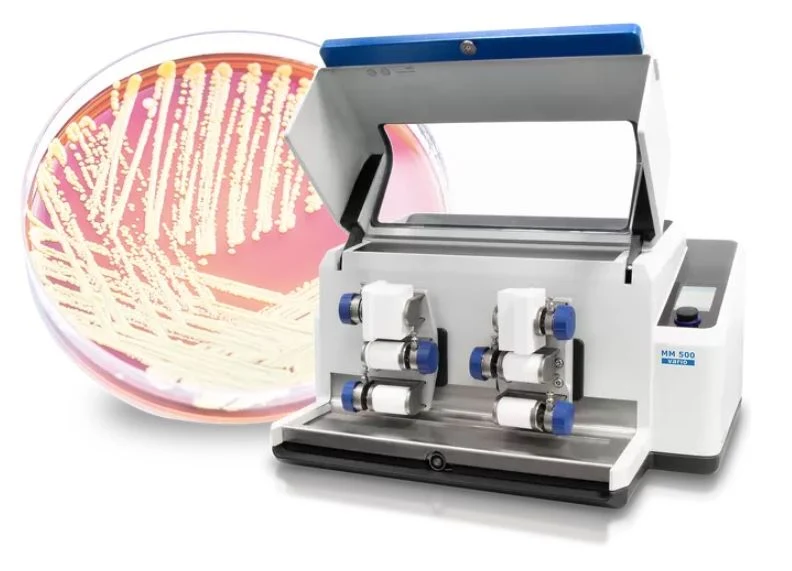

Parallel batches & biological sample throughput

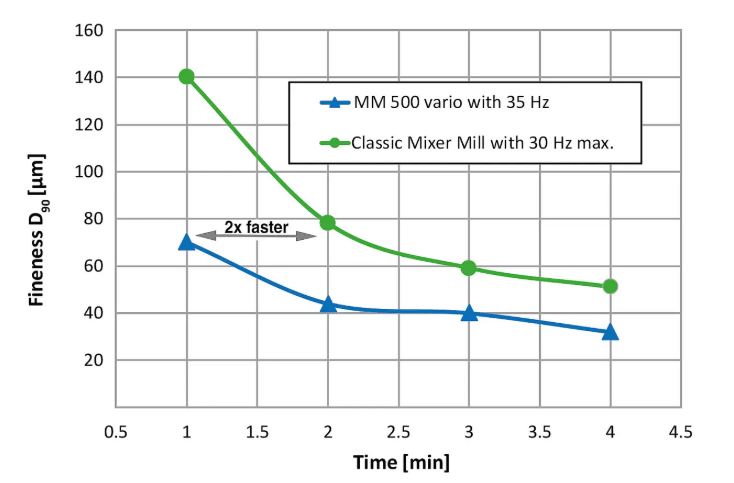

High-frequency impact
Up to 35 Hz supports rapid pulverization and mixing. Select frequency and duration for each method rather than assuming one cycle fits all samples.
Methods worth repeating
Store 12 SOPs and four cycle programs with up to 99 repeats for routine or extended processing.
HOW IT WORKS
Oscillation.
Impact. Mixing.
Grinding jars oscillate in a horizontal position. The balls’ inertia drives them into the sample at the rounded jar ends. Impact and friction reduce the material while the motion mixes it.
Match ball size, number, jar material, filling level, frequency and time to the sample. Use smaller beads for compatible bead-beating methods; use a validated liquid and dispersion method for wet grinding.
Feed size, final fineness and useful sample quantity depend on the material, tools and operating conditions. Jar volume is not the sample filling volume. The finest result and largest feed or batch are not simultaneous guarantees.
METHOD & CONFIGURATION
When the sample queue keeps growing.
Multiple grinding stations help laboratories compare formulations, prepare replicates and homogenize biological samples in parallel. Choose the adapter around the vessel and method; maximum vial count is different from the number of grinding stations.

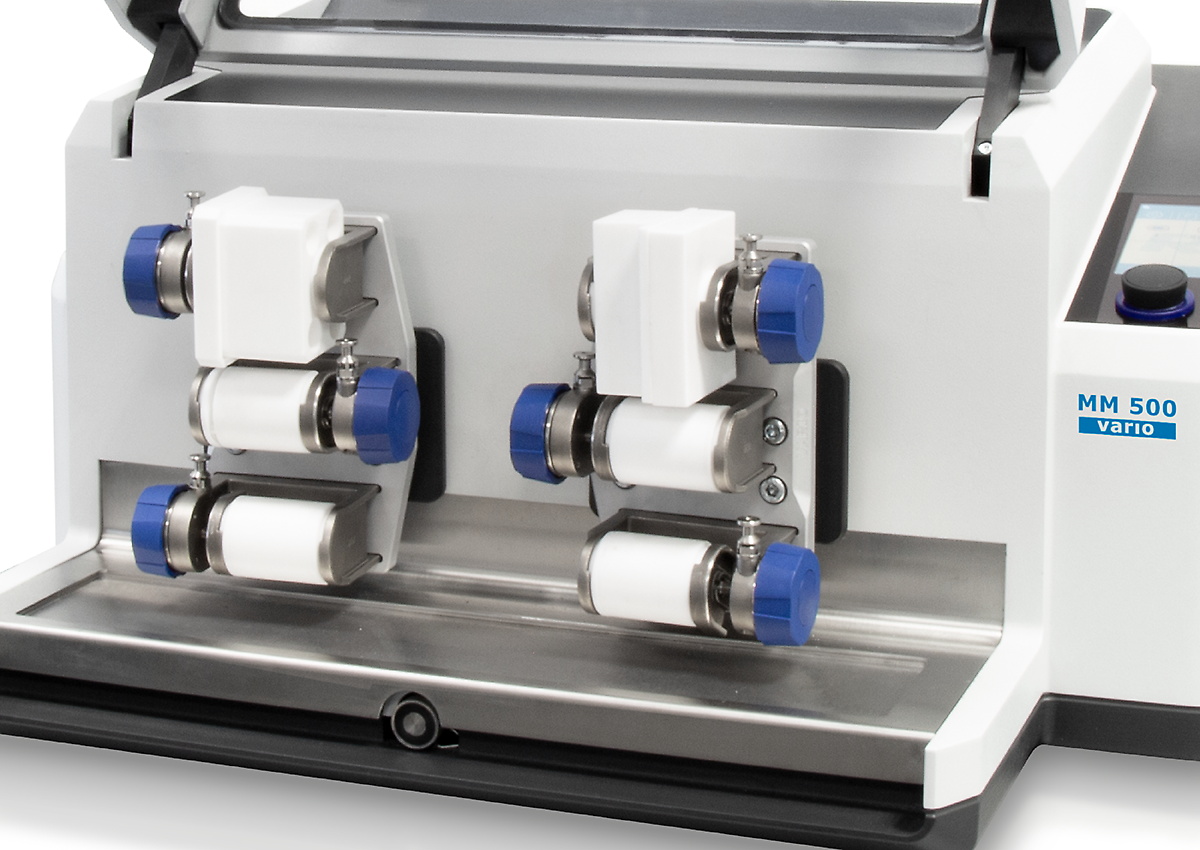

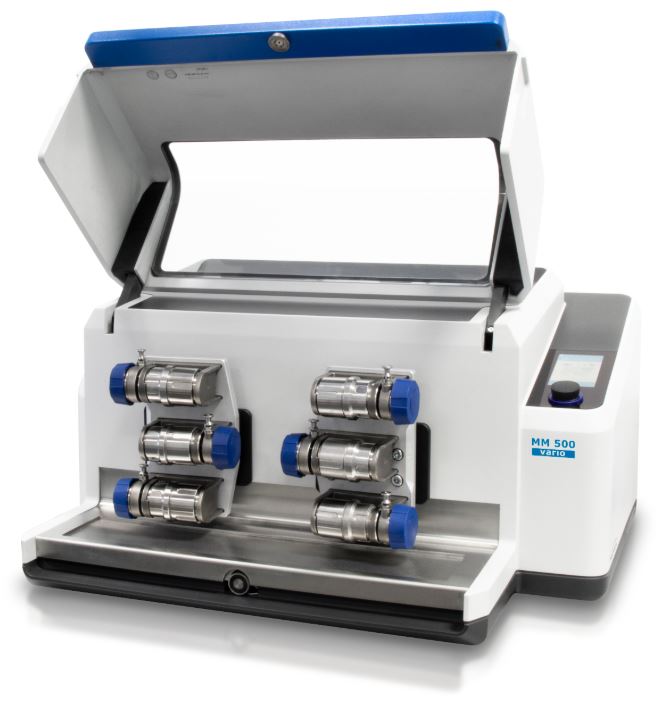

- Six jar stations for parallel preparation
- Compatible small-jar formats shared with MM 400
- Choose vial adapters for bead beating and tissue homogenization
BUILD THE RIGHT SETUP
The tools make the method.
Select jars, balls and supporting accessories around your material and analysis. Confirm the complete configuration and what is included in the quotation.

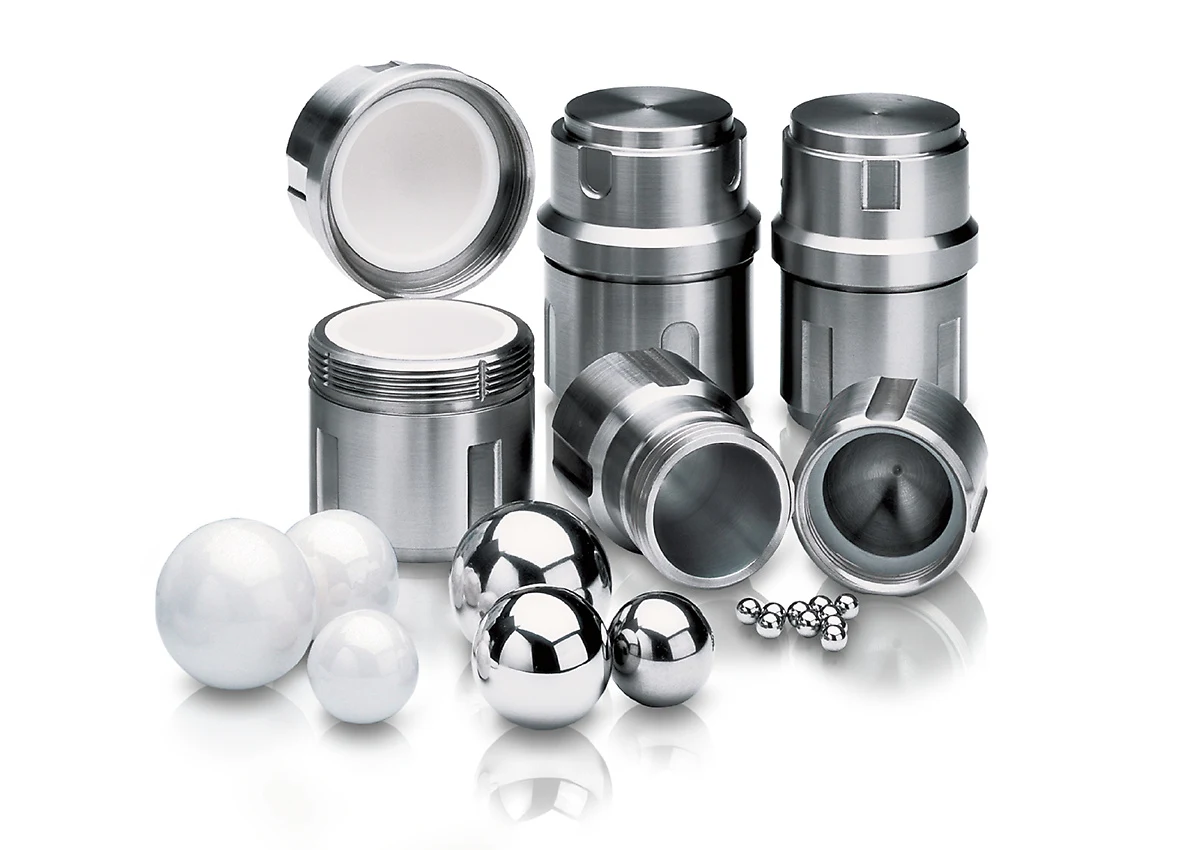

Grinding jars & balls
Use compatible screw-top jars from 1.5 to 50 ml. Tool materials include hardened steel, stainless steel, tungsten carbide, zirconium oxide, agate and PTFE.

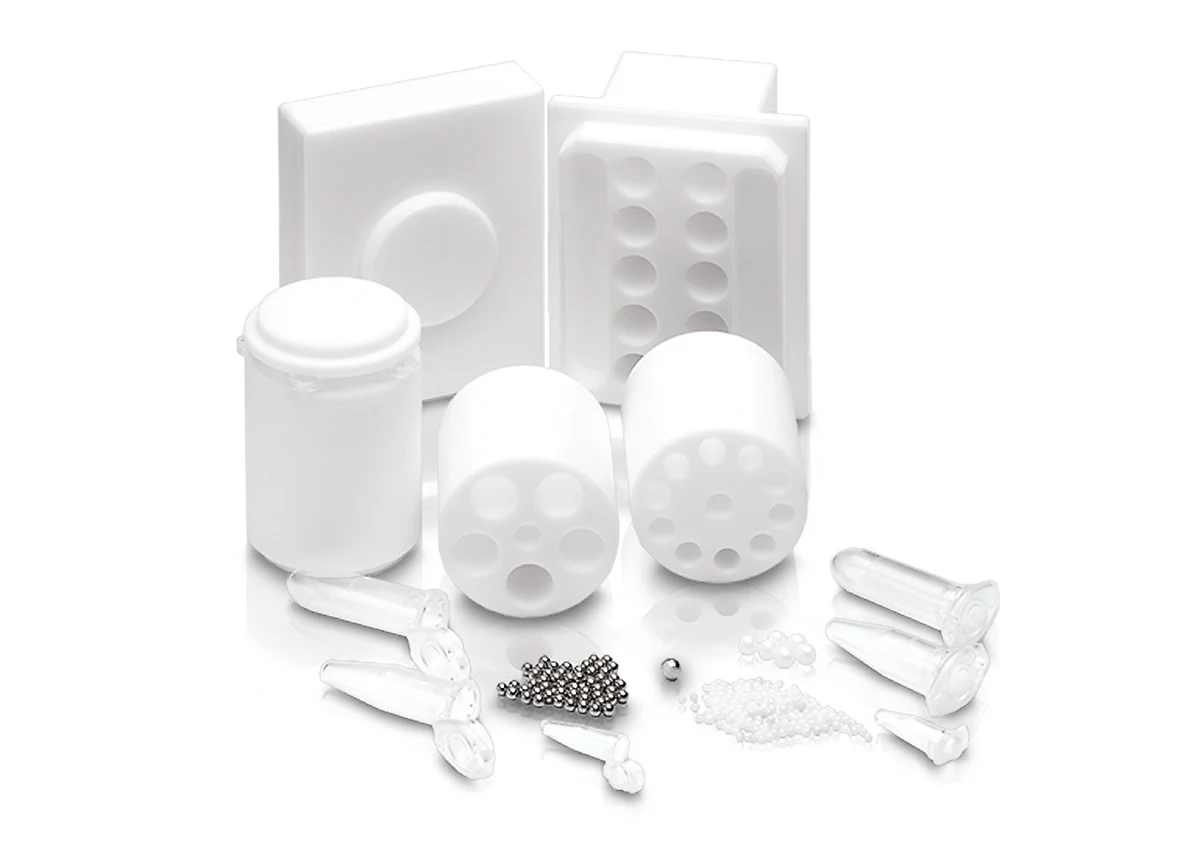

Reaction vial adapters
Depending on the adapter and vial format, process up to 50 × 1.5/2 ml vials, 60 × 0.2 ml vials or 20 × 5 ml vials per batch. Confirm the loading arrangement.

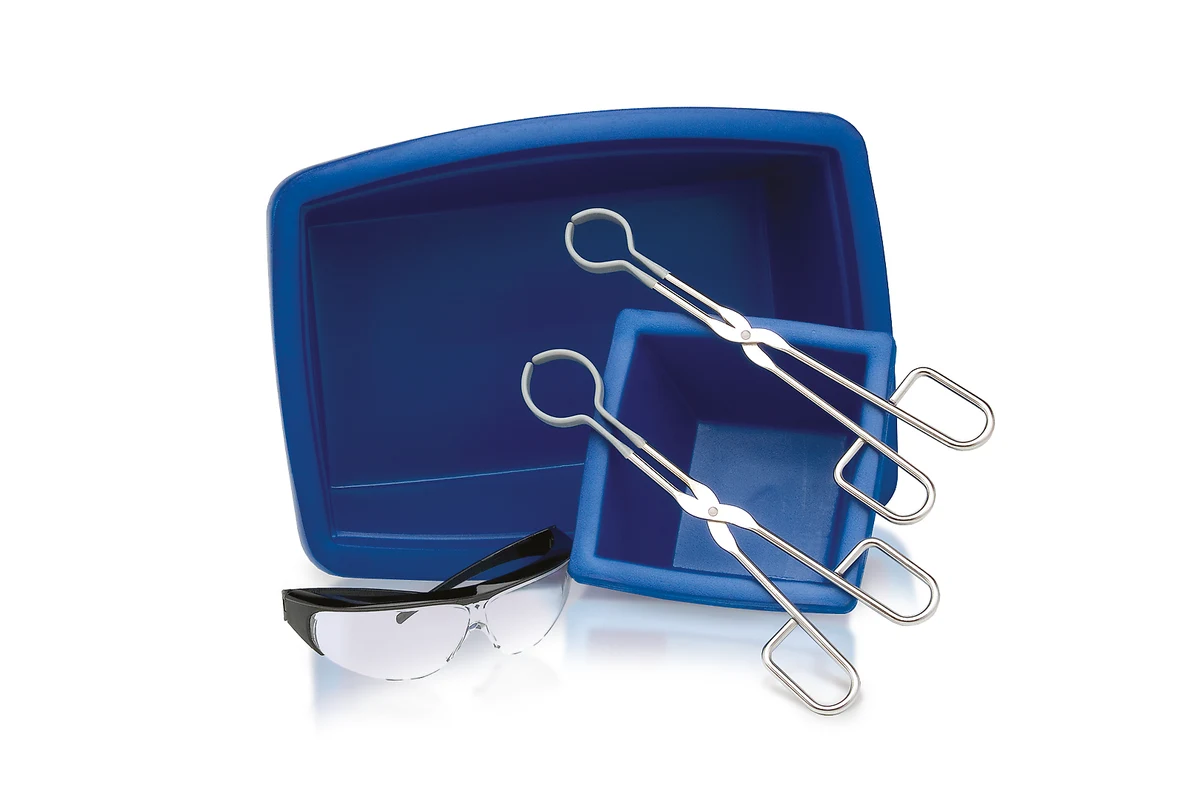

Cryogenic preparation
Compatible steel jars may be manually precooled in liquid nitrogen for suitable samples. This is a pre-cooling method, not automatic cooling during the run.
MATERIALS & APPLICATIONS
Start with the sample.
- Batch sample preparation
- Biological tissue
- Cell disruption
- Food & agriculture

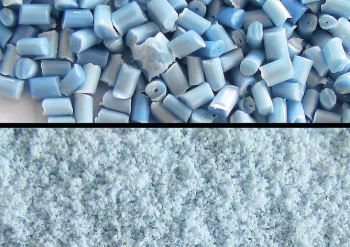

- Polymers
- Mechanochemistry
TECHNICAL DATA
A closer look at MM 500 vario.
| Grinding stations | 6 |
|---|---|
| Maximum feed size* | ≤ 8 mm |
| Final fineness* | ~ 5 µm |
| Useful sample quantity* | 6 × 20 ml |
| Nominal jar volume | 1.5–50 ml |
| Vibrational frequency | 3–35 Hz |
| Temperature approach | Manual pre-cooling with compatible steel jars |
View additional technical specifications
| Feed material | hard, medium-hard, soft, brittle, elastic, fibrous |
|---|---|
| Size reduction principle | impact, friction |
| Material feed size* | <= 8 mm |
| Final fineness* | ~ 5 µm |
| Batch size / feed quantity* | max. 6 x 20 ml |
| No. of grinding stations | 6 |
| Vibrational frequency | 3 – 35 Hz (180 – 2100 min-1) |
| Typical mean grinding time | 30 s – 2 min |
| Dry grinding | yes |
| Wet grinding | yes |
| Cryogenic grinding | yes |
| Cell disruption with reaction vials | yes |
| Self-centering clamping device | yes |
| Type of grinding jars | screw top design |
| Material of grinding tools | hardened steel, stainless steel, tungsten carbide, zirconium oxide, agate, PTFE |
| Grinding jar sizes | 1.5 ml / 5 ml / 10 ml / 25 ml / 35 ml / 50 ml |
| Setting of grinding time | digital, 10 s – 8 h |
| Total grinding time | 99 h |
| Storable SOPs | 12 |
| Number of storable cycle programs | 4 (with 99 repeats) |
| Electrical supply data | 100-120 V, 50/60 Hz; 200-230 V, 50/60Hz |
| Power connection | 1-phase |
| Protection code | IP 30 |
| Power consumption | 750 W |
| W x H x D closed | 690 x 375 x 585 mm |
| Net weight | ~ 60 kg |
*Feed size, final fineness and useful sample quantity depend on the material, tools and operating conditions. Jar volume is not the sample filling volume. The finest result and largest feed or batch are not simultaneous guarantees.
EXPLORE THE FAMILY
A different priority?
MM 400
Routine preparation & flexible small samples
MM 500 nano
Ultrafine wet grinding & high-energy research
CryoMill
Automatic cooling. More useful sample preparation.
MM 500 control
Monitored heating, cooling & temperature-sensitive methods
